Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of driveable vertical masts lift in China. Please feel free to buy high quality driveable vertical masts lift at competitive price from our factory. Contact us for more details.

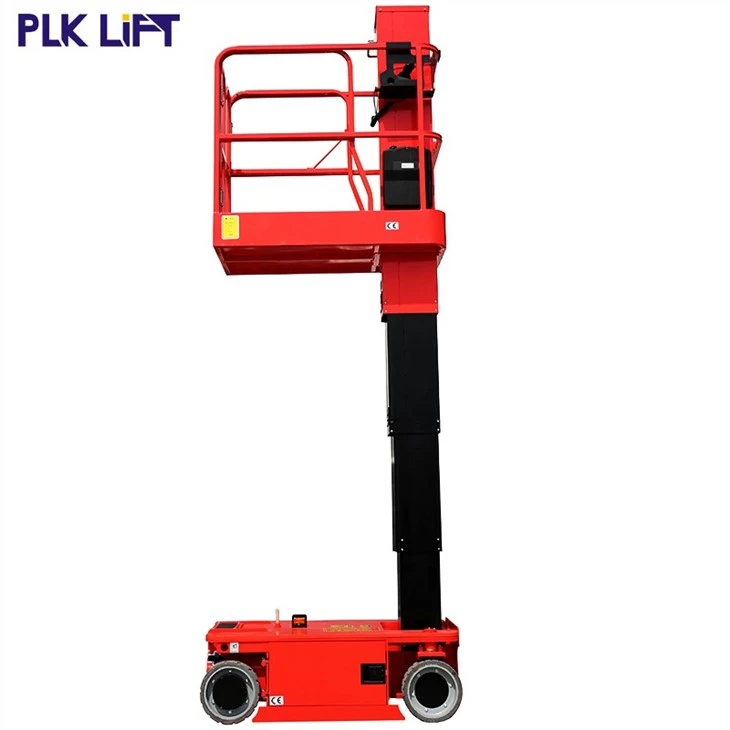

Jinan PLK GTWY Series aluminum alloy aerial work platforms are easy to use and cost effective, making them the best choice for a wide range of applications. One person can easily set them up and get to work within minutes, providing the ideal tool for almost any access application. Their lightweight and compact size makes the platforms convenient to use in schools, churches, flower shop, warehouses and more. GTWY series aluminum lift platforms also provide solutions for inside work on construction sites, such as high rises, it can go in and out the elevator smoothly as well as being perfect for easy construction purposes.
Hot Tags: driveable vertical masts lift, China, suppliers, factory, price
| Model | GTWY-T3.6 | GTWY-T4.8 |
| Max. Working Height | 5.60m | 6.80m |
| Max. Platform Height | 3.60m | 4.80m |
| Loading Capacity | 227kg | 227kg |
| Occupants | (indoor)2/(outdoor)1 | (indoor)2/(outdoor)1 |
| Overall Length | 1.36m | 1.36m |
| Overall Width | 0.76m | 0.76m |
| Overall Height | 1.7m | 1.98m |
| Platform Dimension | 1.3m×0.70m | 1.3m×0.70m |
| Wheel Base | 1.04m | 1.04m |
| Turning Radius | 0 | 0 |
| Travel Speed(Stowed) | 4km/h | 4km/h |
| Travel Speed(Raised) | 1.1km/h | 1.1km/h |
| Up/Down Speed | 48/40sec | 43/35sec |
| Gradeability | 25% | 25% |
| Drive Tyres | Φ305×100mm | Φ305×100mm |
| Drive Motors | 2×12VDC/0.5kW | 2×12VDC/0.5kW |
| Lifting Motor | 24VDC/1.3kW | 24VDC/1.3kW |
| Battery | 2×12V/100Ah | 2×12V/100Ah |
| Charger | 24V/15A | 24V/15A |
| Weight | 820kg | 980kg |
