Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of 12m to 24m towable boom lifts price in China. Please feel free to buy high quality 12m to 24m towable boom lifts price at competitive price from our factory. Contact us for more details.
12m to 24m Towable Boom Lift
Lifting Height from 10m to 22m, working height can reach 12m to 24m, load capacity is 300kg/220kg, platform size is 1.2*0.8m or 0.9*0.7m(as per your requirement).
| Model | TBL-12A | TBL-14A | TBL-14AT | TBL-16A | TBL-18A | TBL-20A | TBL-20AM | TBL-22A | TBL-24A | |
| +Telescopic | +Telescopic | +Telescopic | +Telescopic | +Telescopic | +Telescopic | +Telescopic | ||||
| Lifting height | 10M | 12M | 12M | 14M | 16M | 18M | 18M | 20M | 22M | |
| Working height | 12M | 14M | 14M | 16M | 18M | 20M | 20M | 22M | 24M | |
| Load capacity | 300KG | 220KG | 300KG | 300KG | 220KG | 220KG | 220KG | 220KG | 220KG | |
| Platform size | 1.2*0.8M | |||||||||
| Working radius | 5.5M | 6.5M | 7.8M | 8.5M | 10.5M | 11M | 10.5M | 11M | 11M | |
| Net Weight | 1950KG | 2100KG | 2150KG | 2150KG | 2350KG | 3800KG | 3700KG | 4500KG | 5000KG | |
| Overall Width (A) | 1.7M | 1.7M | 1.7M | 1.7M | 1.7M | 1.8M | 1.8M | 1.9M | 1.9M | |
| Stowed Height (B) | 2.1M | 2.1M | 2.1M | 2.1M | 2.2M | 2.25M | 2.25M | 2.25M | 2.25M | |
| Overall Length (C) | 6.3M | 7.3M | 5.8M | 6.65M | 6.8M | 7.6M | 6.6M | 6.9M | 6.9M | |
| Length After Folding Tractor (D) | 5.2M | 6.2M | 4.7M | 5.55M | 5.7M | 6.5M | 5.5M | 5.8M | 5.8M | |
| Wind Resistance Level | ≦5 | |||||||||
| Rotation | 359 degree (USD350 for 360 degree) | 360 degree | ||||||||
| 20'/40'Container Loading Quantity | 1set/3sets | 1set/3sets | 1set/3sets | 1set/3sets | 1set/3sets | 1set/2sets | 1set/3sets | 1set/2sets | 1set/2sets | |
| Power | AC-electrical/Diesel/Gasoline Power (Single Power) | |||||||||
| DC Battery Power (Single Power) | ||||||||||
| AC-electrical + Diesel/Gasoline Power (Dual Power) | ||||||||||
| DC Battery + AC/Diesel/Gasoline Power (Dual Power) | ||||||||||

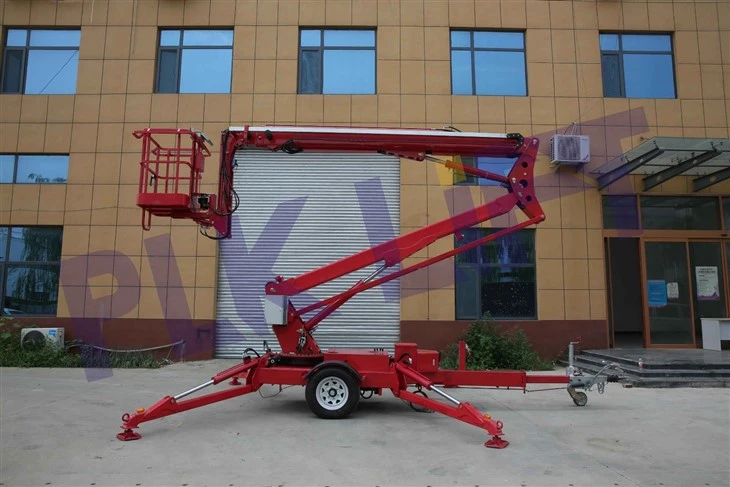

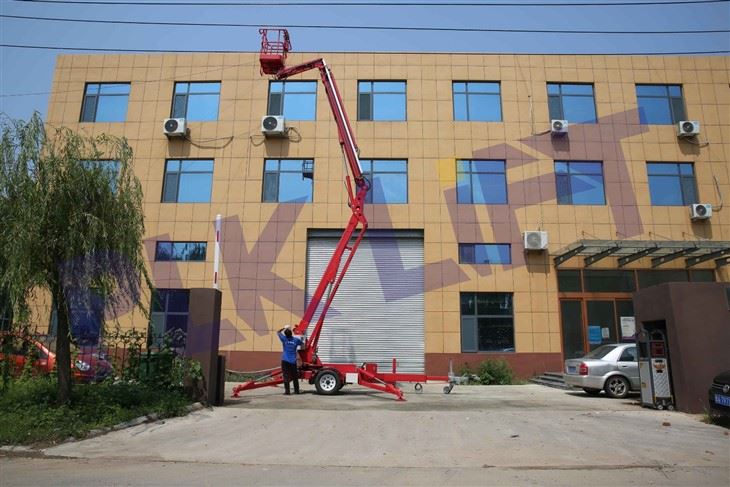

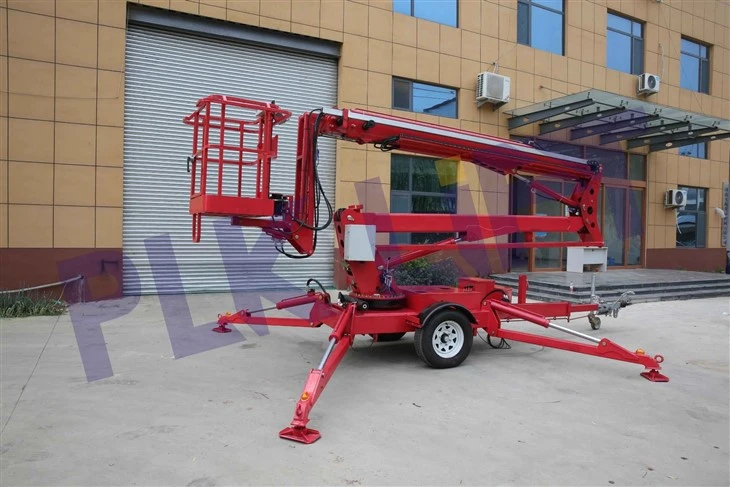

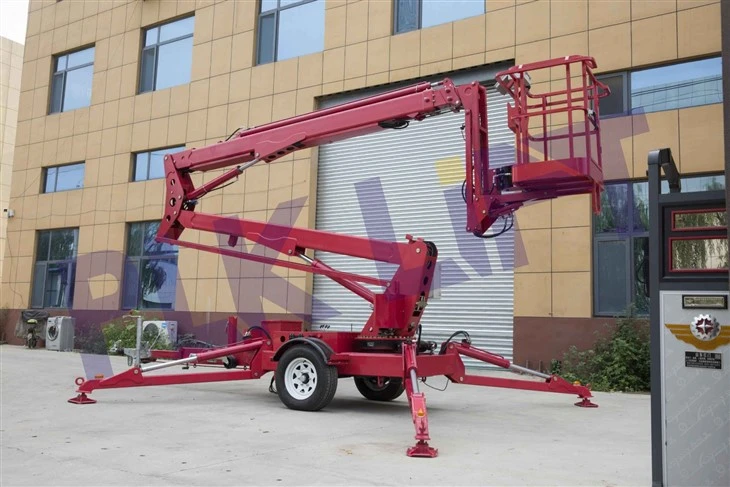

Photos Show:
Details Show
