Boom Lift Safety

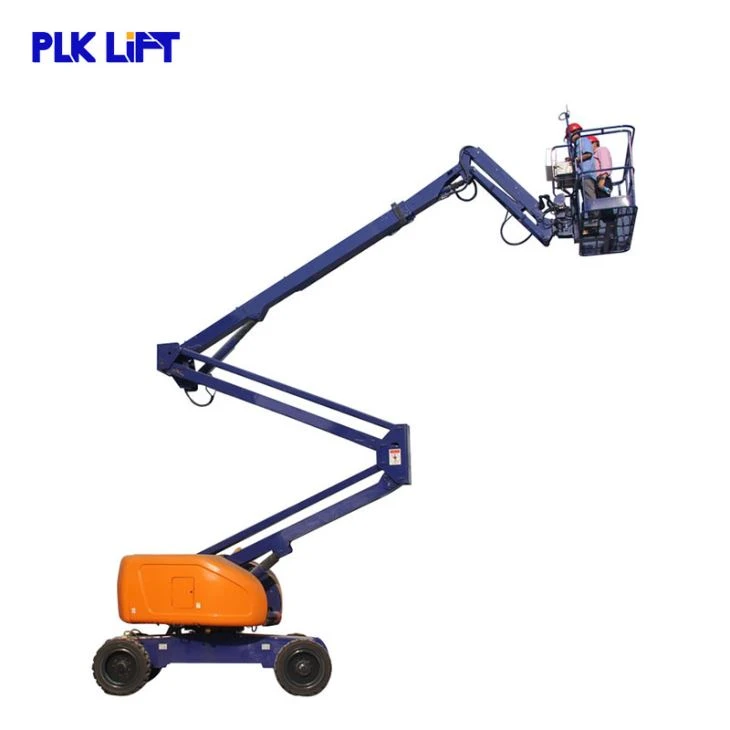

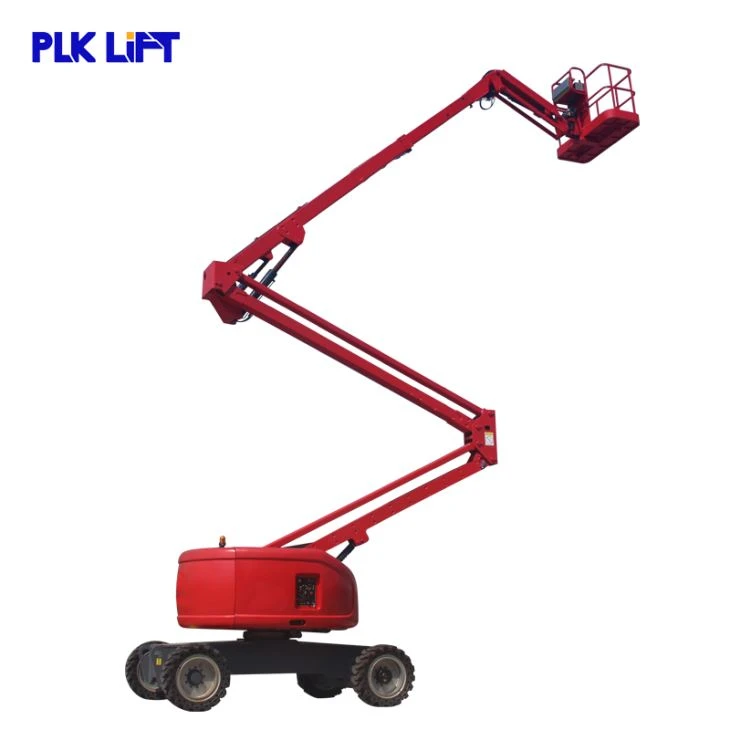

The self-propelled boom lift with a working height of 12 to 56 meters are equipped with retractable chains and simple and intuitive controls. They are extremely stable and easy to transport. These features, combined with the compactness, which allows their use even in the smallest environments, make it an excellent tool for those involved in cutting, maintenance, painting and other difficult-to-reach jobs. with normal work platforms. Thanks to the rubberised guides, the arm can also move to narrow or difficult to reach places and the powerful stabilizing levers guarantee extremely safe and stable operation at height.
Hot Tags: boom lift safety, China, suppliers, factory, price, Trailer Boom Lift, Boom Lift factory, Boom Lift Machine, Telescoping Boom Lift, Boom Lift suppliers, Self Propelled Boom Lift
|
Model Type |
SPABL-12B |
SPABL-14B |
SPABL-16B |
SPABL-18B |
|
Lifting height |
12m |
14.05m |
15.8m |
18m |
|
Working height |
14m |
16.05m |
17.8m |
20m |
|
Load capacity |
200kg |
230kg |
230kg |
230kg |
|
Platform size Ⓑ*Ⓐ |
1.1*0.65*x1.1m |
1.53x0.76x1.1m |
1.53*0.76X1.1m |
1.53*0.76X1.1m |
|
Working radius |
8m |
8.1m |
10m |
10.8m |
|
Crossing height maximum |
5m |
7.6m |
7.6m |
9.2m |
|
Length( stowed) Ⓓ |
5.3m |
6.24m |
7.9m |
8.1m |
|
Width (stowed) Ⓔ |
2m |
1.75m |
2m |
2.38m |
|
Height(stowed) Ⓒ |
2.05m |
2m |
2m |
2.38m |
|
Wheel base Ⓕ |
2m |
2m |
2.2m |
2.6m |
|
Ground clearance Ⓖ |
0.2m |
0.2m |
0.2m |
0.3m |
|
Turning radius |
2.2m |
4.5m |
4.5m |
5.66m |
|
Turntable Swing |
360°Continuously |
|||
|
Leveling mode |
Automatic |
|||
|
Platform rotation |
120° |
160° |
160° |
160° |
|
Solid tire size |
Φ590*190 |
28*9-15m |
250-15 |
33*12-20 |
|
Travel speed(stowed) |
5km/h |
|||
|
Travel speed(raisedor extend ) |
0.8km/h |
|||
|
Grade ability |
25% |
30% |
30% |
25% |
|
Travel Electric Motor |
7.5kw |
2*6.5kw |
2*6.5kw |
2*6.5kw |
|
Control voltage |
24V DC |
|||
|
Battery |
48/420 V/Ah |
|||
|
Charger |
48/40 V/A |
|||
|
Weight |
5500kg |
6800kg |
7110kg |
8080kg |
