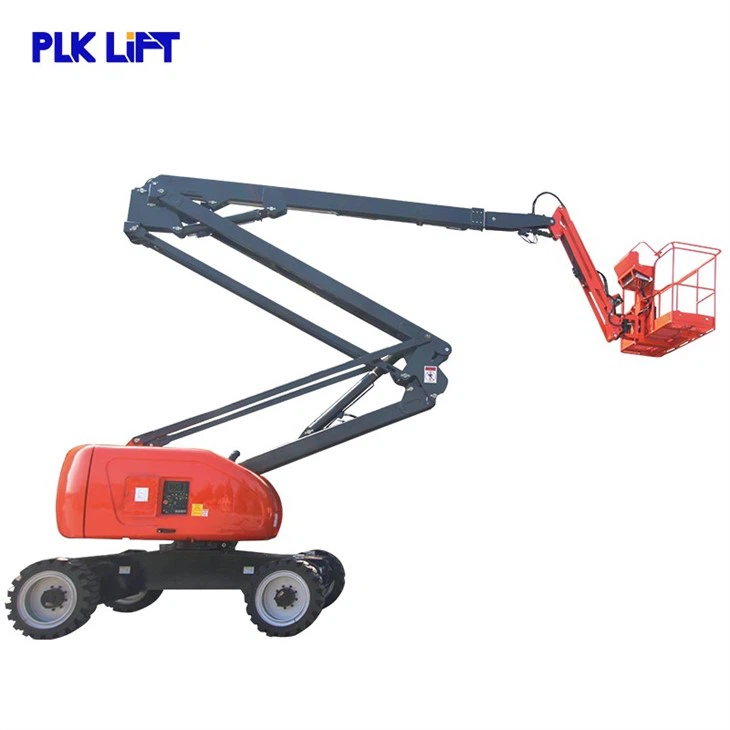

Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of 16-28m diesel power articulated boom lift in China. Please feel free to buy high quality 16-28m diesel power articulated boom lift at competitive price from our factory. Contact us for more details.
| Model Type No. | GTZZ-16D | GTZZ-18D | GTZZ-20D | GTZZ-22D | GTZZ-26D | GTZZ-28D |
| Working Height Max | 16.7 m | 18 m | 20.2 m | 22 m | 26.2 m | 28 m |
| Platform Height Max | 14.7 m | 16 m | 18.2 m | 20 m | 24.2 m | 26 m |
| Horizontal Outreach Max. | 8.1 m | 9.55 m | 11.6 m | 12 m | 15.4m | 17.28 m |
| Lifting capacity | 230kg | 230 kg | 230 kg | 230 kg | 230 kg | 230kg |
| Crossing Height | 8.25 m | 8.25 m | 8.3 m | 9.4 m | 10.2 m | 10.2 m |
| Length( stowed) | 6.72m | 7.26 m | 8.23 m | 8.43 m | 10.65 m | 11.7 m |
| Width (stowed) | 2.28m | 2.28 m | 2.38 m | 2.38 m | 2.48 m | 2.58m |
| Height(stowed) | 2.47m | 2.4 m | 2.5 m | 2.61 m | 2.85 m | 2.97m |
| Wheel base | 2.5m | 2.5m | 2.5m | 2.5m | 3 m | 3 m |
| Ground clearance | 400mm | 400 m | 400 m | 400 m | 400 m | 430mm |
| Platform | 1.83*0.76m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 2.44 * 0.91 m | 2.44 * 0.91 m |
| Tuning radius (inside) | 1.87m | 1.87 m | 1.82 m | 1.82 m | 1.75 m | 2.6 m |
| Tuning radius(outside) | 4.8m | 4.8 m | 4.85 m | 4.85 m | 4.87 m | 6.1 m |
| Speed(stowed) | 5km/h | 5km/h | 5km/h | 5km/h | 5km/h | 5km/h |
| Travel speed(raised) | 0.8km/h | 0.8km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h |
| Turn table swing | 355° | 355° | 355° | 360° Continuous | 360° Continuous | 360° Continuous |
| Max. working slope | 5° | 5° | 5° | 5° | 5° | 5° |
| Grade ability | 45% | 45% | 45% | 45% | 45% | 40% |
| Solid tire | 33*12-20 | 33*12-20 | 33×12-20 | 33×12-20 | 33×14-20 | 385/65-22.5 |
| Control voltage/Power | 12V/36KW | 12V/36KW | 12V/36KW | 12V/36KW | 12V/36KW | 12V/36KW |
| Weight (kgs) | 8070 | 8700 | 8800 | 9500 | 16300 | 17000 |
| Drive*Steer Mode | 4 x 4 x 2 | |||||
