Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of electric lifting table in China. Please feel free to buy high quality electric lifting table at competitive price from our factory. Contact us for more details.

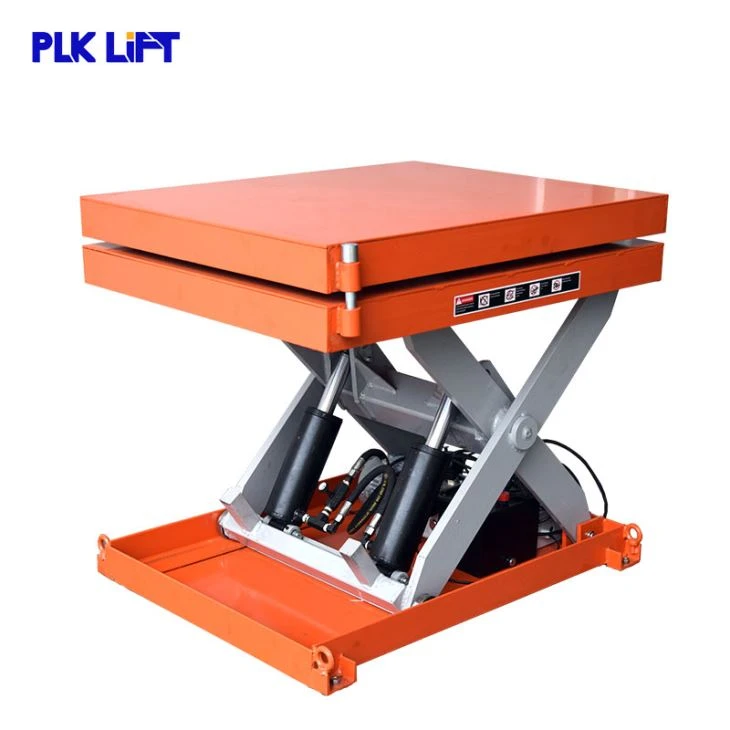

Electric Lifting Table
It is equipped with a rotary lifting table plate,the other parts is the same as a standard scissor lift,it is usually used in the production line for delivering goods or materials.
It is available with loading capacity of 1000kg to 4000kg,and lifting height up to 4m,and special platform size and lifting height can be customized.
It can be installed on the ground or in the pit.
Hot Tags: electric lifting table, China, suppliers, factory, price, Roller Scissor Lift Table, Electric Lifting Table, Pallet Scissor Lift, Car Lift Platform, Hydraulic Scissors Lift Table, Electric Lift Tables
|
Model |
Max. Platform Height(mm) |
Platform Size(mm) |
Self Height (mm) |
Motor (KW) |
Net weight (KG) |
|
1000Kg Load Capacity Standard Scissor Lift |
|||||
|
HW1001 |
1000 |
1300×820 |
205 |
1.1 |
160 |
|
HW1002 |
1000 |
1600×1000 |
205 |
1.1 |
186 |
|
HW1003 |
1300 |
1700×850 |
240 |
1.1 |
200 |
|
HW1004 |
1300 |
1700×1000 |
240 |
1.1 |
210 |
|
HW1005 |
1300 |
2000×850 |
240 |
1.1 |
212 |
|
HW1006 |
1300 |
2000×1000 |
240 |
1.1 |
223 |
|
HW1007 |
1300 |
1700×1500 |
240 |
1.1 |
365 |
|
HW1008 |
1300 |
2000×1700 |
240 |
1.1 |
430 |
|
2000Kg Load Capacity Standard Scissor Lift |
|||||
|
HW2001 |
1000 |
1300×850 |
230 |
1.5 |
235 |
|
HW2002 |
1050 |
1600×1000 |
230 |
1.5 |
268 |
|
HW2003 |
1300 |
1700×850 |
250 |
2.2 |
289 |
|
HW2004 |
1300 |
1700×1000 |
250 |
2.2 |
300 |
|
HW2005 |
1300 |
2000×850 |
250 |
2.2 |
300 |
|
HW2006 |
1300 |
2000×1000 |
250 |
2.2 |
315 |
|
HW2007 |
1400 |
1700×1500 |
250 |
2.2 |
415 |
|
HW2008 |
1400 |
2000×1800 |
250 |
2.2 |
500 |
|
4000Kg Load Capacity Standard Scissor Lift |
|||||
|
HW4001 |
1050 |
1700×1200 |
240 |
2.2 |
375 |
|
HW4002 |
1050 |
2000×1200 |
240 |
2.2 |
405 |
|
HW4003 |
1400 |
2000×1000 |
300 |
2.2 |
470 |
|
HW4004 |
1400 |
2000×1200 |
300 |
2.2 |
490 |
|
HW4005 |
1400 |
2200×1000 |
300 |
2.2 |
480 |
|
HW4006 |
1400 |
2200×1200 |
300 |
2.2 |
505 |
|
HW4007 |
1300 |
1700×1500 |
350 |
2.2 |
570 |
|
HW4008 |
1300 |
2200×1800 |
350 |
2.2 |
655 |
