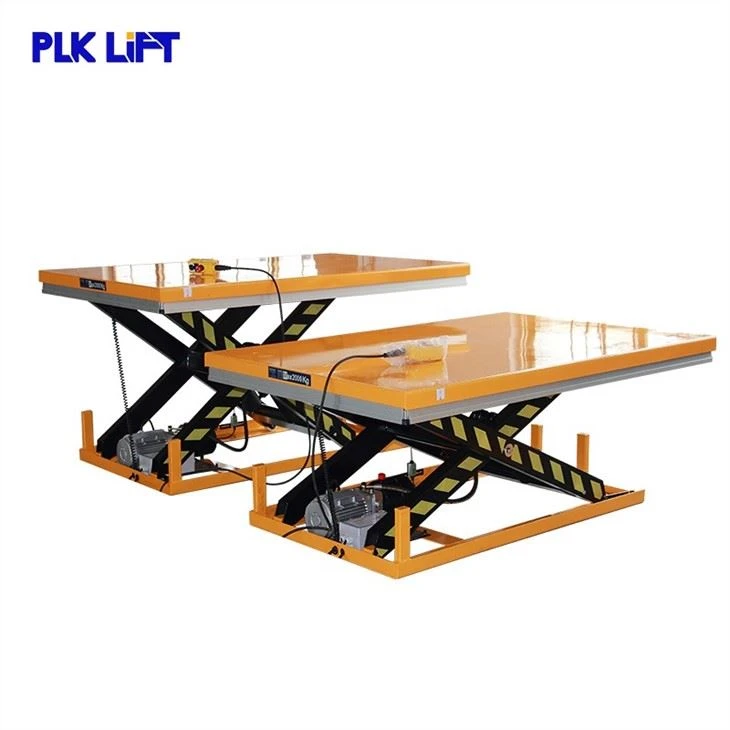

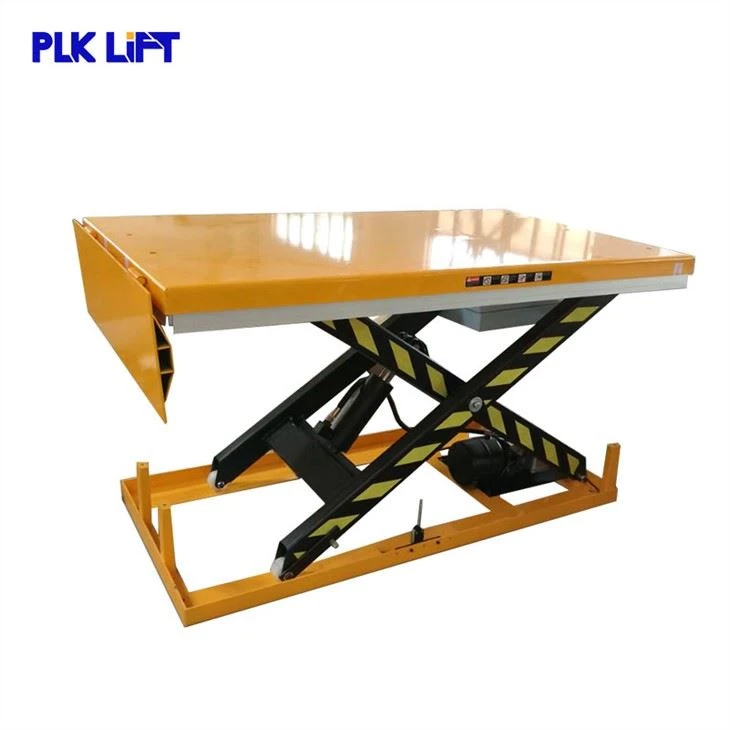

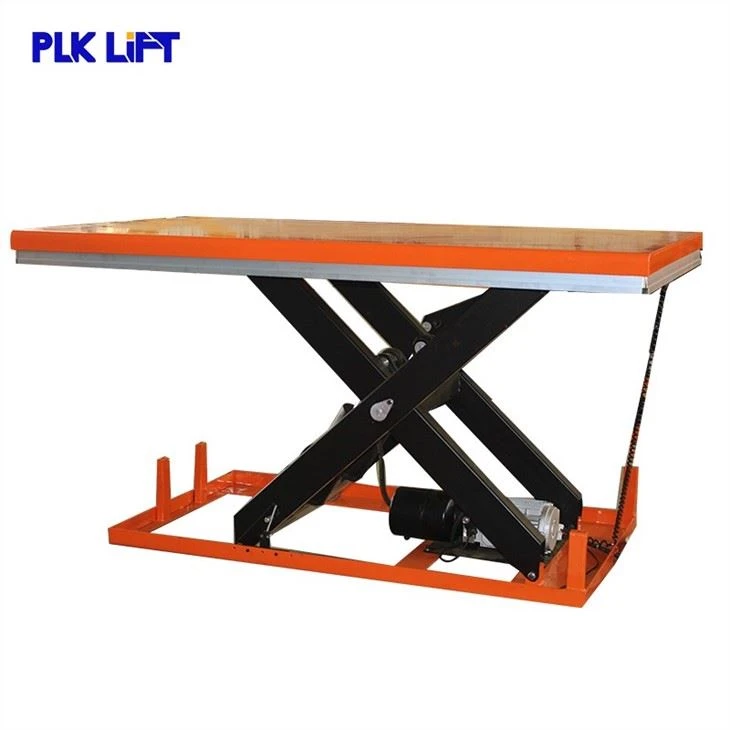

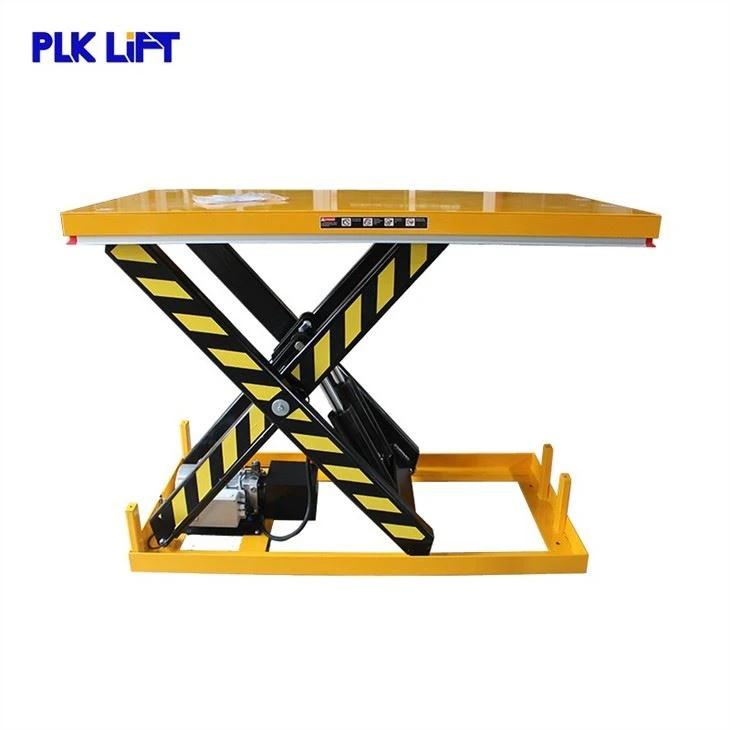

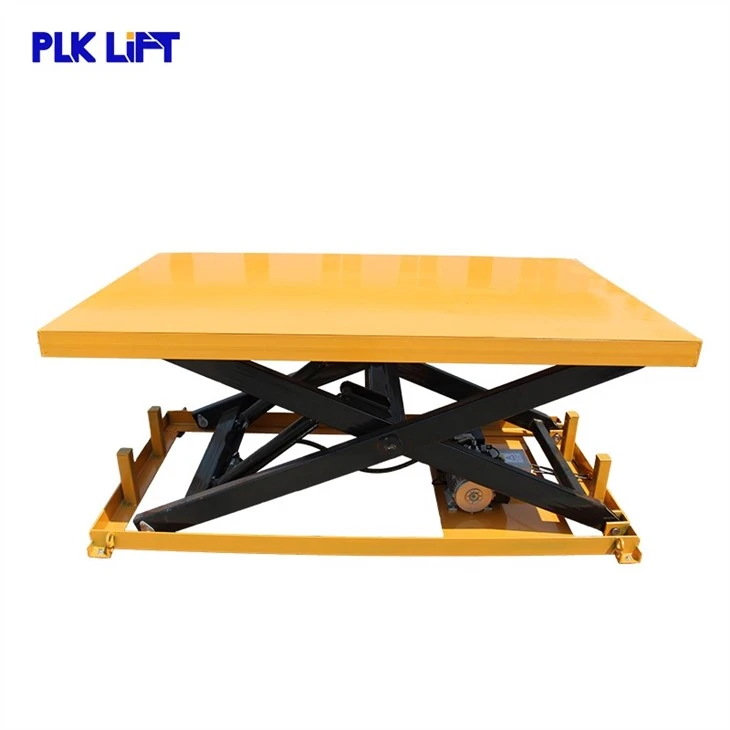

Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of scissors arm hydraulic platform in China. Please feel free to buy high quality scissors arm hydraulic platform at competitive price from our factory. Contact us for more details.
Feature:
1. Color : yellow, orange or as per customer request
2. Capacity: 1000kg, 1500kg and 4000kg are available
3. Advanced Robot welding ensure high strength, good finish, no bubble in the welding.
4. With CE certifications, waiting for your order!
1) More than 22 years experience team in manufacturing, service.
2) With ISO certificates service and quality is before profit
3) Sample order is welcomed
4) CE/TUV, ISO certificates
5) Free maintenance design
6) Fast delivery time within 30days
7)With protection bracket and brakes on rear wheel
Hot Tags: scissors arm hydraulic platform, China, suppliers, factory, price, Iresto Lift Tables, Scissor Lifting Table, Electric Lifting Table, Heavy Duty Scissor Lift, Heavy Duty Lift Table, Industrial Scissor Lift
|
Model |
Load Capacity(KG) |
Self Height (MM) |
Max Platform Height(MM) |
Platform Size(MM) |
Lifting time (S) |
Voltage (V) |
Net weight (KG) |
|
HW1001 |
1000 |
205 |
1000 |
1300×820 |
20~25 |
Single scissor 1ph or 3ph |
160 |
|
HW1002 |
1000 |
205 |
1000 |
1600×1000 |
20~25 |
186 |
|
|
HW1003 |
1000 |
240 |
1300 |
1700×850 |
30~35 |
200 |
|
|
HW1004 |
1000 |
240 |
1300 |
1700×1000 |
30~35 |
210 |
|
|
HW1005 |
1000 |
240 |
1300 |
2000×850 |
30~35 |
212 |
|
|
HW1006 |
1000 |
240 |
1300 |
2000×1000 |
30~35 |
223 |
|
|
HW1007 |
1000 |
240 |
1300 |
1700×1500 |
30~35 |
365 |
|
|
HW1008 |
1000 |
240 |
1300 |
2000×1700 |
30~35 |
430 |
|
|
HW2001 |
2000 |
230 |
1000 |
1300×850 |
20~25 |
235 |
|
|
HW2002 |
2000 |
230 |
1050 |
1600×1000 |
20~25 |
268 |
|
|
HW2003 |
2000 |
250 |
1300 |
1700×850 |
25~35 |
289 |
|
|
HW2004 |
2000 |
250 |
1300 |
1700×1000 |
25~35 |
300 |
|
|
HW2005 |
2000 |
250 |
1300 |
2000×850 |
25~35 |
300 |
|
|
HW2006 |
2000 |
250 |
1300 |
2000×1000 |
25~35 |
315 |
|
|
HW2007 |
2000 |
250 |
1400 |
1700×1500 |
25~35 |
415 |
|
|
HW2008 |
2000 |
250 |
1400 |
2000×1800 |
25~35 |
500 |
|
|
HW4001 |
4000 |
240 |
1050 |
1700×1200 |
30~40 |
375 |
|
|
HW4002 |
4000 |
240 |
1050 |
2000×1200 |
30~40 |
405 |
|
|
HW4003 |
4000 |
300 |
1400 |
2000×1000 |
35~40 |
470 |
|
|
HW4004 |
4000 |
300 |
1400 |
2000×1200 |
35~40 |
490 |
|
|
HW4005 |
4000 |
300 |
1400 |
2200×1000 |
35~40 |
480 |
|
|
HW4006 |
4000 |
300 |
1400 |
2200×1200 |
35~40 |
505 |
|
|
HW4007 |
4000 |
350 |
1300 |
1700×1500 |
35~40 |
570 |
|
|
HW4008 |
4000 |
350 |
1300 |
2200×1800 |
35~40 |
655 |
|
|
HD1000 |
1000 |
305 |
1780 |
1300X820 |
35-45 |
Multi scissor 1ph or 3ph |
210 |
|
HD2000 |
2000 |
350 |
1780 |
1300X850 |
35-45 |
295 |
|
|
HD4000 |
4000 |
400 |
2050 |
1700X1200 |
55-65 |
520 |
|
|
HT1000 |
1000 |
470 |
3000 |
1700x1000 |
35-45 |
450 |
|
|
HT2000 |
2000 |
560 |
3000 |
1700x1000 |
50-60 |
750 |
|
|
HF400 |
400 |
600 |
4140 |
1700x1000 |
30-40 |
800 |
|
|
HF800 |
800 |
706 |
4210 |
1700x1000 |
70-80 |
858 |
