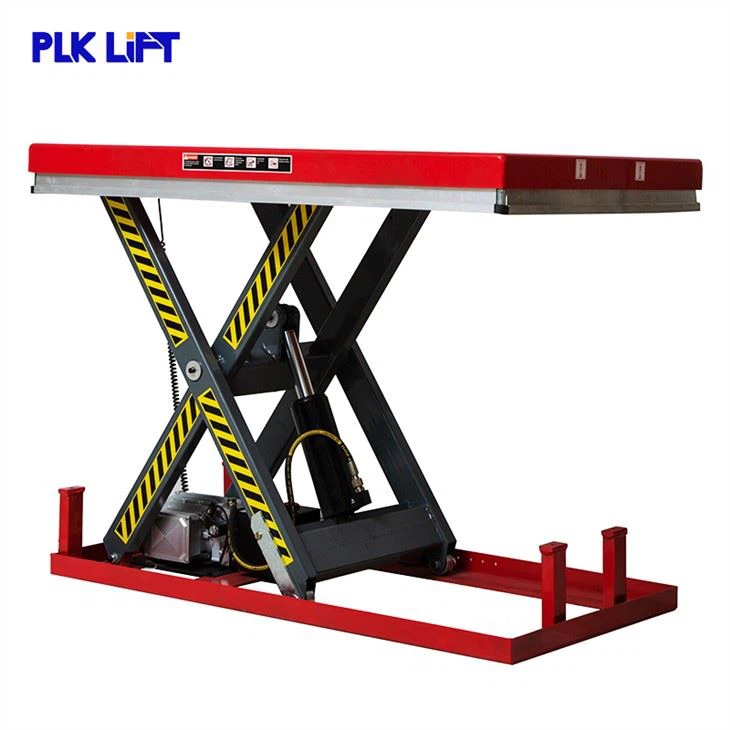

Electric Scissor Lift Table
Electric Scissor Lift Table is a stationary Scissor Lift a product, the product is also the most popular standard, this product has a unique advantage, a removal of simple assembling, this means that the operation is very convenient, secondly the device capacity is very big, can greatly meet the lifting requirements of customers, and third, the price is cheaper than other manufacturer, we keep improving at the same time, also reduce prices, moment for the sake of customers, the fourth,Our products have obtained a number of product quality certificates, which ensure that the quality of our products is absolutely the top of the industry.
Model | Load Capacity(KG) | Self Height (MM) | Max Platform Height(MM) | Platform Size(MM) | Lifting time (S) | Voltage (V) | Net weight (KG) |
HW1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | Single scissor 1ph or 3ph | 160 |
HW1002 | 1000 | 205 | 1000 | 1600×1000 | 20~25 | 186 | |
HW1003 | 1000 | 240 | 1300 | 1700×850 | 30~35 | 200 | |
HW1004 | 1000 | 240 | 1300 | 1700×1000 | 30~35 | 210 | |
HW1005 | 1000 | 240 | 1300 | 2000×850 | 30~35 | 212 | |
HW1006 | 1000 | 240 | 1300 | 2000×1000 | 30~35 | 223 | |
HW1007 | 1000 | 240 | 1300 | 1700×1500 | 30~35 | 365 | |
HW1008 | 1000 | 240 | 1300 | 2000×1700 | 30~35 | 430 | |
HW2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 | |
HW2002 | 2000 | 230 | 1050 | 1600×1000 | 20~25 | 268 | |
HW2003 | 2000 | 250 | 1300 | 1700×850 | 25~35 | 289 | |
HW2004 | 2000 | 250 | 1300 | 1700×1000 | 25~35 | 300 | |
HW2005 | 2000 | 250 | 1300 | 2000×850 | 25~35 | 300 | |
HW2006 | 2000 | 250 | 1300 | 2000×1000 | 25~35 | 315 | |
HW2007 | 2000 | 250 | 1400 | 1700×1500 | 25~35 | 415 | |
HW2008 | 2000 | 250 | 1400 | 2000×1800 | 25~35 | 500 | |
HW4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 | |
HW4002 | 4000 | 240 | 1050 | 2000×1200 | 30~40 | 405 | |
HW4003 | 4000 | 300 | 1400 | 2000×1000 | 35~40 | 470 | |
HW4004 | 4000 | 300 | 1400 | 2000×1200 | 35~40 | 490 | |
HW4005 | 4000 | 300 | 1400 | 2200×1000 | 35~40 | 480 | |
HW4006 | 4000 | 300 | 1400 | 2200×1200 | 35~40 | 505 | |
HW4007 | 4000 | 350 | 1300 | 1700×1500 | 35~40 | 570 | |
HW4008 | 4000 | 350 | 1300 | 2200×1800 | 35~40 | 655 | |
HD1000 | 1000 | 305 | 1780 | 1300X820 | 35-45 | Multi scissor 1ph or 3ph | 210 |
HD2000 | 2000 | 350 | 1780 | 1300X850 | 35-45 | 295 | |
HD4000 | 4000 | 400 | 2050 | 1700X1200 | 55-65 | 520 | |
HT1000 | 1000 | 470 | 3000 | 1700x1000 | 35-45 | 450 | |
HT2000 | 2000 | 560 | 3000 | 1700x1000 | 50-60 | 750 | |
HF400 | 400 | 600 | 4140 | 1700x1000 | 30-40 | 800 | |
HF800 | 800 | 706 | 4210 | 1700x1000 | 70-80 | 858 |
