Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of electric hydraulic lift table in China. Please feel free to buy high quality electric hydraulic lift table at competitive price from our factory. Contact us for more details.

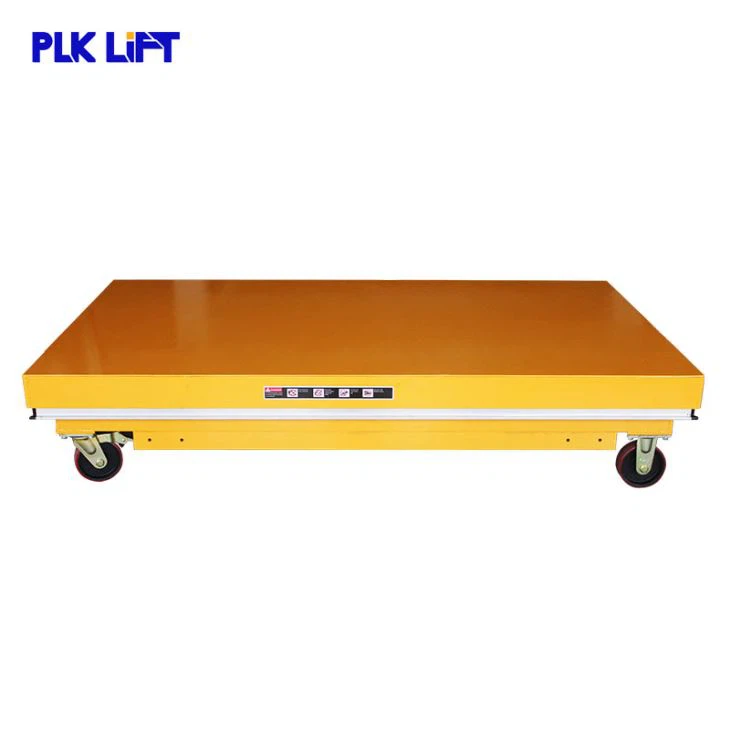

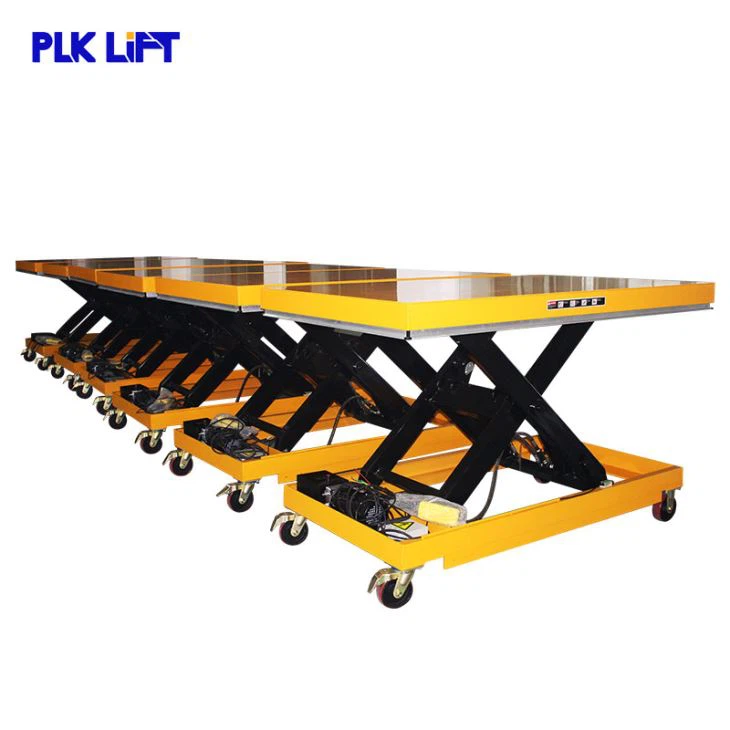

Electric Hydraulic Lift Table
It is a new product. It is widely used for goods transport. There is a second platform on the basic table with a rotary bolt.
People can open the rotary platform to extent table, when finish work, moving the up table back to the position. It will save much space.
Double your work platform, saving your space.
Hot Tags: electric hydraulic lift table, China, suppliers, factory, price, Electric Hydraulic Lift Table, Hydraulic Lifting Table, PorTable Lift Tables, Stationary Scissor Lift, Table Scissor Lift
Model | Max. Platform Height(mm) | Platform Size(mm) | Self Height (mm) | Motor (KW) | Net weight (KG) |
1000Kg Load Capacity Standard Scissor Lift | |||||
HW1001 | 1000 | 1300×820 | 205 | 1.1 | 160 |
HW1002 | 1000 | 1600×1000 | 205 | 1.1 | 186 |
HW1003 | 1300 | 1700×850 | 240 | 1.1 | 200 |
HW1004 | 1300 | 1700×1000 | 240 | 1.1 | 210 |
HW1005 | 1300 | 2000×850 | 240 | 1.1 | 212 |
HW1006 | 1300 | 2000×1000 | 240 | 1.1 | 223 |
HW1007 | 1300 | 1700×1500 | 240 | 1.1 | 365 |
HW1008 | 1300 | 2000×1700 | 240 | 1.1 | 430 |
2000Kg Load Capacity Standard Scissor Lift | |||||
HW2001 | 1000 | 1300×850 | 230 | 1.5 | 235 |
HW2002 | 1050 | 1600×1000 | 230 | 1.5 | 268 |
HW2003 | 1300 | 1700×850 | 250 | 2.2 | 289 |
HW2004 | 1300 | 1700×1000 | 250 | 2.2 | 300 |
HW2005 | 1300 | 2000×850 | 250 | 2.2 | 300 |
HW2006 | 1300 | 2000×1000 | 250 | 2.2 | 315 |
HW2007 | 1400 | 1700×1500 | 250 | 2.2 | 415 |
HW2008 | 1400 | 2000×1800 | 250 | 2.2 | 500 |
4000Kg Load Capacity Standard Scissor Lift | |||||
HW4001 | 1050 | 1700×1200 | 240 | 2.2 | 375 |
HW4002 | 1050 | 2000×1200 | 240 | 2.2 | 405 |
HW4003 | 1400 | 2000×1000 | 300 | 2.2 | 470 |
HW4004 | 1400 | 2000×1200 | 300 | 2.2 | 490 |
HW4005 | 1400 | 2200×1000 | 300 | 2.2 | 480 |
HW4006 | 1400 | 2200×1200 | 300 | 2.2 | 505 |
HW4007 | 1300 | 1700×1500 | 350 | 2.2 | 570 |
HW4008 | 1300 | 2200×1800 | 350 | 2.2 | 655 |
