Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of dock leveler in China. Please feel free to buy high quality dock leveler at competitive price from our factory. Contact us for more details.

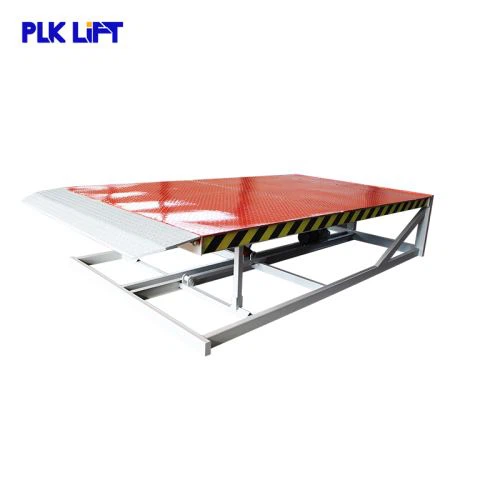

Dock Leveler

It hydraulic boarding bridge is a special auxiliary equipment for fast loading and unloading of goods. Its height adjustment function makes a bridge between the truck and the cargo platform of the warehouse. The trucks such as forklifts can directly enter the truck to carry out the batch of goods. Loading and unloading, only one person can work, and the cargo can be quickly loaded and unloaded. Boarding bridges enable companies to reduce labor, improve work efficiency and gain greater economic benefits.

Function: convenient for unloading, strong stability and low maintenance cost. Applicable to all kinds of vehicles on the loading and unloading site and places with relatively heavy traffic. Loading platform, lifting platform, unloading platform: Anti-sliding device: This device is welded by steel plate, which can effectively realize the anti-skid function, safe and reliable.

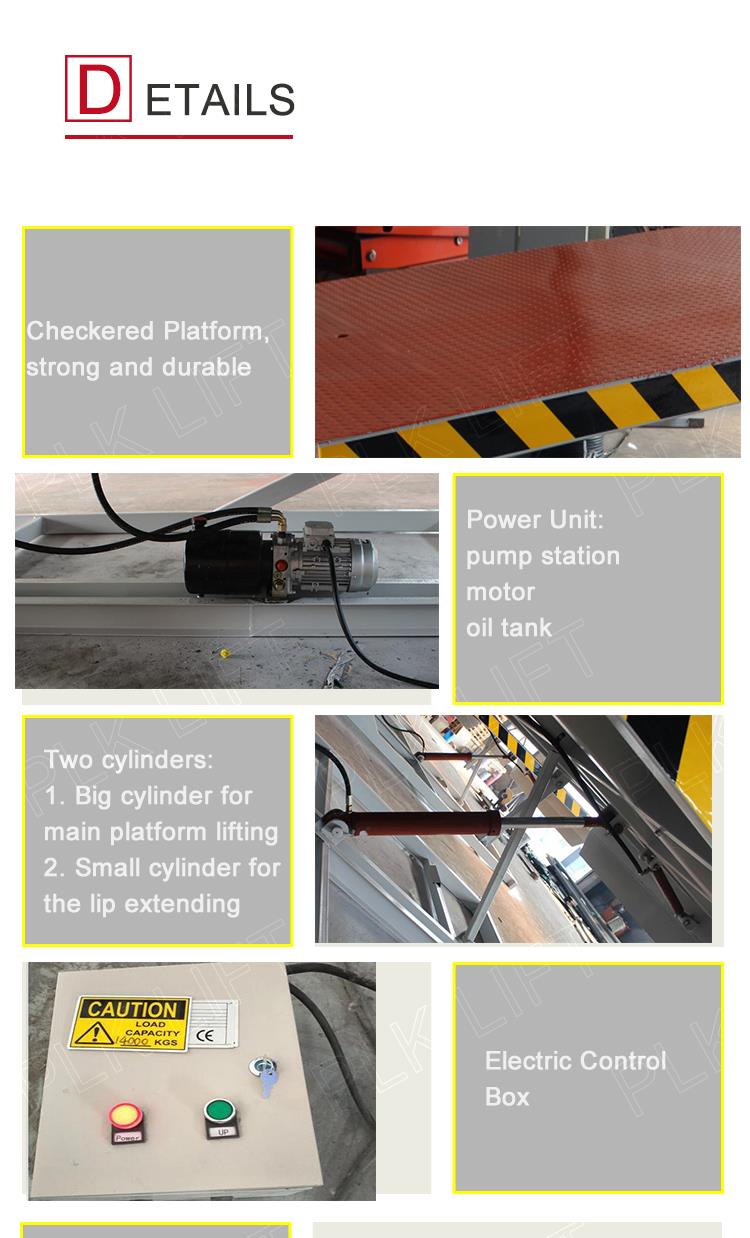

详情图1

Hot Tags: dock leveler, China, suppliers, factory, price, Dock Leveler, Dock Ramp

Model No.

DCQ-6

DCQ-8

DCQ-10

DCQ-12

Load Capacity (t)

6

8

10

12

Platform Size (mm)

L2000/2500*W2000

Lip Width (mm)

400

Travel Height (mm)

Updip

300

Downdip

200

Motor Power (kw)

0.75

Pit Size (mm)

2080/2580*2040*600

Platform Materials

6mm checked steel plate Q235B

8mm checked steel plate Q235B

Lip Materials

14mm Q235B plate

16mm Q235B plate

18mm Q235B plate

20mm Q235B plate

Lifting Frame

120×60×6 profile steel

160×80×6 profile steel

200×100×6 profile steel

200×100×6 profile steel

Bed Frame

120×60×5 profile steel

120×60×6 profile steel

120×60×6 profile steel

120×60×6 profile steel

Shaft Pin

Ø30 steel rod30×50 welded tube

Cylinder Support Plate

12mm Q235B plate

Cylinder Pin

45# Ø50 rod steel*4

Hydraulic Oil Pipe

Double wire mesh high pressure tubing 2-10-43MPa

Pump Station

Combined type CDK series 0.75KW

Electrical appliance

Delixi

Delixi

Delixi

Delixi

Hydraulic Oil

ML series antiwear hydraulic oil 6L
