Picker Truck

Picker Truck
Details:
It is widely used in warehouses and supermarkets to transport and collect goods. The body is flexible and greatly improves work efficiency. The load capacity is 300kg and a lifting height of 2.7m-4.5m, which is suitable for working environments of different heights.
Send Inquiry
Description
Send Inquiry

Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of picker truck in China. Please feel free to buy high quality picker truck at competitive price from our factory. Contact us for more details.

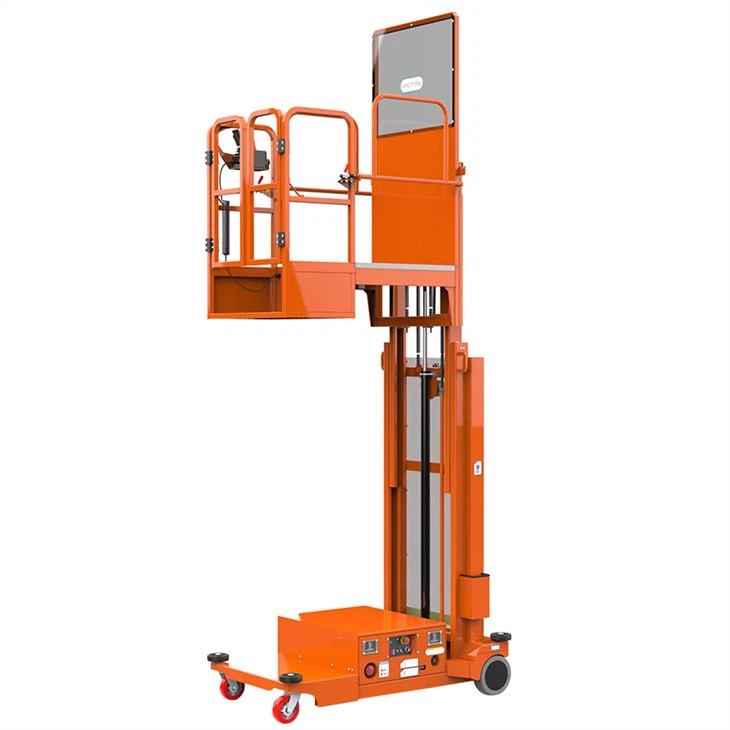

Picker Truck

Order picker is widely used in warehouses and supermarkets to transport and collect goods. The body is flexible and greatly improves work efficiency. The load capacity is 300kg and a lifting height of 2.7m-4.5m, which is suitable for working environments of different heights.

It is a ideal tool for material handling.

Picker truck has very stable performance, safe and reliable, best-selling in Europe, America and Asia, and received the praise of customers.

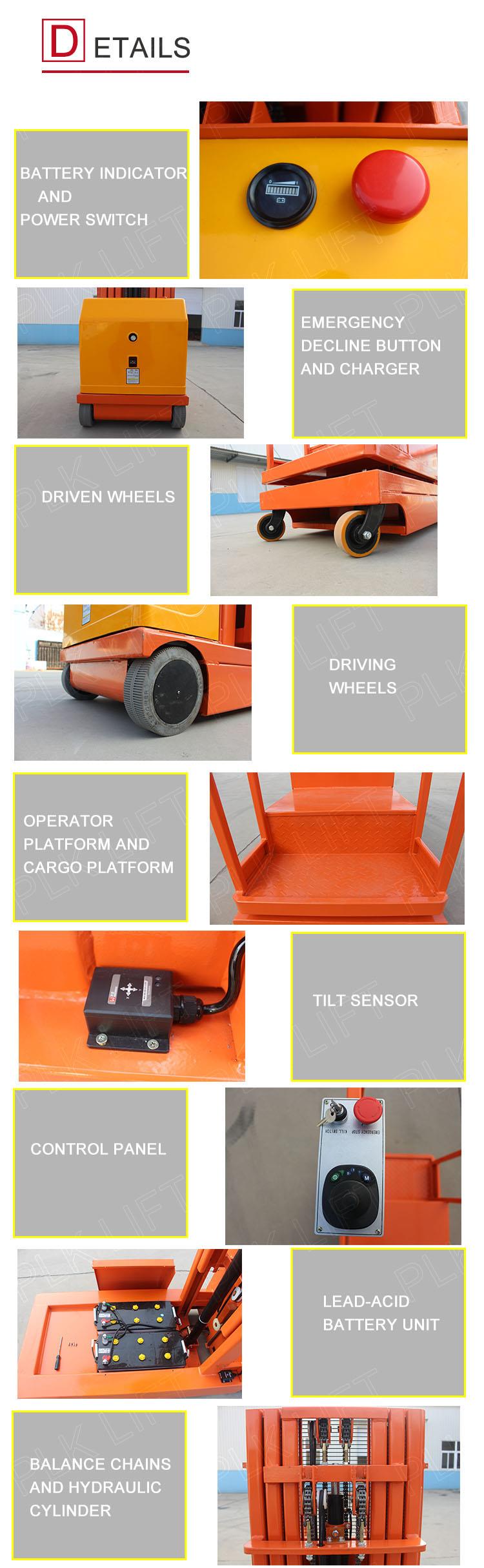

Details

Hot Tags: picker truck, China, suppliers, factory, price, Picker Truck

Model Type


OP3-2.7

OP3-3.3

OP3-4.0

OP3-4.5

Max.Platform Height

mm

2700

3300

4000

4500

Max.Machine Height

mm

4120

5000

5400

6000

Ground Clearance

mm

40

Rated Capacity

kg

300

Platform Size

mm

600*640

Max.Drive Speed

(platform Stowed/Elevated)

km/h

4/1.6

Min.turning Radius

mm

1500

Max.Climbing Capacity

%

15~20

Driving Motor

v/kw

2*24/0.4

Lifting Motor

v/kw

24/1.6

Anerold battery

v/Ah

2*12/150

Charger

v/A

24/15

Overall Length

mm

1530

1620

Overall Width

mm

700

700

Overall Height

mm

1830

2130

1840

2000

Overall Net Weight

kg

430

450

660

680
