Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of disabled lifts in China. Please feel free to buy high quality disabled lifts at competitive price from our factory. Contact us for more details.

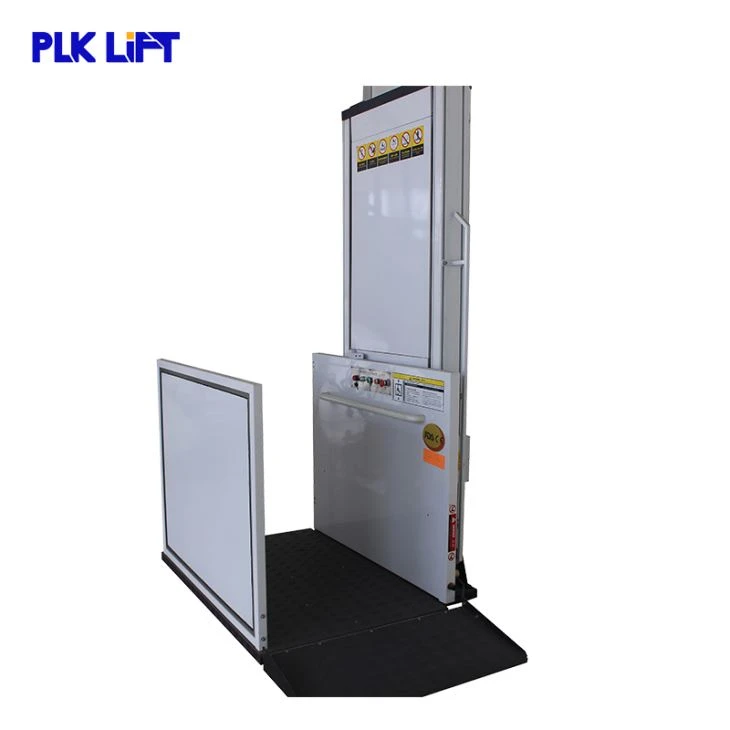

Disabled Lifts
Disabled Lifts is our company through continuous improvement, now gradually achieve perfect a home elevator type of elevator, the most striking characteristics of its convenience, great convenience to the lives of people with disabilities, and our products are widely popular among customers from all over the world, also brought convenience for them, this is a point we are very proud of, after years of development, our products are not only sold all over the world, and have been the consistent high praise.
Hot Tags: disabled lifts, China, suppliers, factory, price, Cheap Cargo Lift Elevator, Stair Chair, Wheelchair Elevator, Stairlifts, Wheelchair Platform Lift, Disabled Lifts
Standard model of 1 meter to 3 meter maximum platform height | |||||
Model Type | WL2510 | WL2515 | WL2520 | WL2525 | WL2530 |
Max. Platform Height | 1000mm | 1500mm | 2000mm | 2500mm | 3000mm |
Load Capacity | 250kg | 250kg | 250kg | 250kg | 250kg |
N.W/G.W(kg) | 350/450 | 450/550 | 550/700 | 700/850 | 780/900 |
Machine Size(mm) | 2000*1430* 1300 | 2500*1430* 1300 | 3000*1430* 1000 | 3500*1430* 1000 | 4000*1430* 1000 |
Standard model of 3 meter to 6 meter maximum platform height | |||||
Model Type | WL2530 | WL2535 | WL2540 | WL2550 | WL2560 |
Max. Platform Height | 3000mm | 3500mm | 4000mm | 5000mm | 6000mm |
Load Capacity | 250kg | 250kg | 250kg | 250kg | 250kg |
N.W/G.W(kg) | 780/900 | 850/1000 | 880/1050 | 1000/1200 | 1100/1300 |
Machine Size(mm) | 4000*1430* 1000 | 4600*1430* 1000 | 5100*1430* 1000 | 6100*1430* 1000 | 7100*1430* 1000 |
Here as below are the same specification for all models from 1 meter to 6 meters. | |
Platform size | 1430*1000mm skid proof checkered steel |
Min Platform height | 60mm |
Speed | 0.06~0.1m/s |
Control voltage | 24V/DC |
Power Output | 1.1~2.2KW |
Voltage | As per your local Standard(single phase or three phase) |
Drive System | Hydraulic pump station and electric motor (See details below) |
Control Mode | Automatic travel switch(See details below) |
Drive Control | Self-resetting system |
Overload | Over current relay protection |
Materials | Aluminium rails and guard with spraying plastics. (See details below) |
Working Condition | Both indoors and outdoors -20°~70°C |
Entrance-Exit Way | It’s customized 90°or 180° |
Installation | No pit installing,easy to install and remove <3.0m,installed directly on the floor. >3.0m, installed both on the floor and on the wall. |
Switches (See details below) | A. One control panel on the platform B. Install two column switches on ground, which can be fixed at any floor needed. C. Remote control, user can operate lift within 20m. |
