Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of lift elevator home residential in China. Please feel free to buy high quality lift elevator home residential at competitive price from our factory. Contact us for more details.

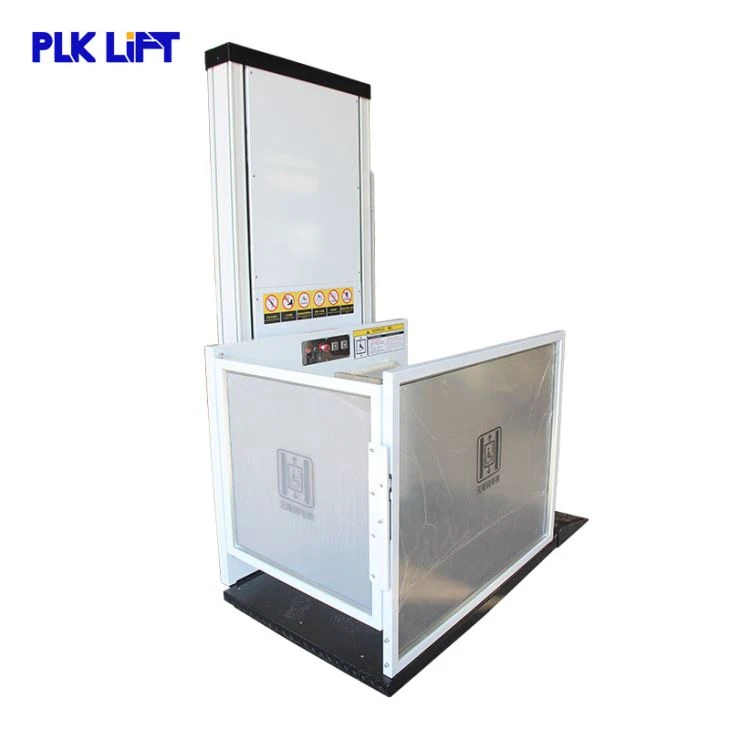

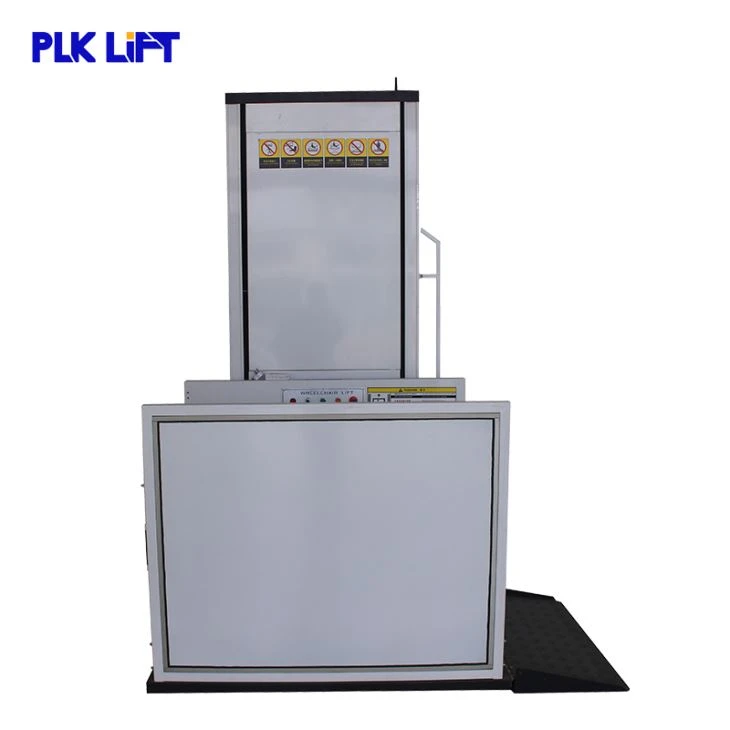

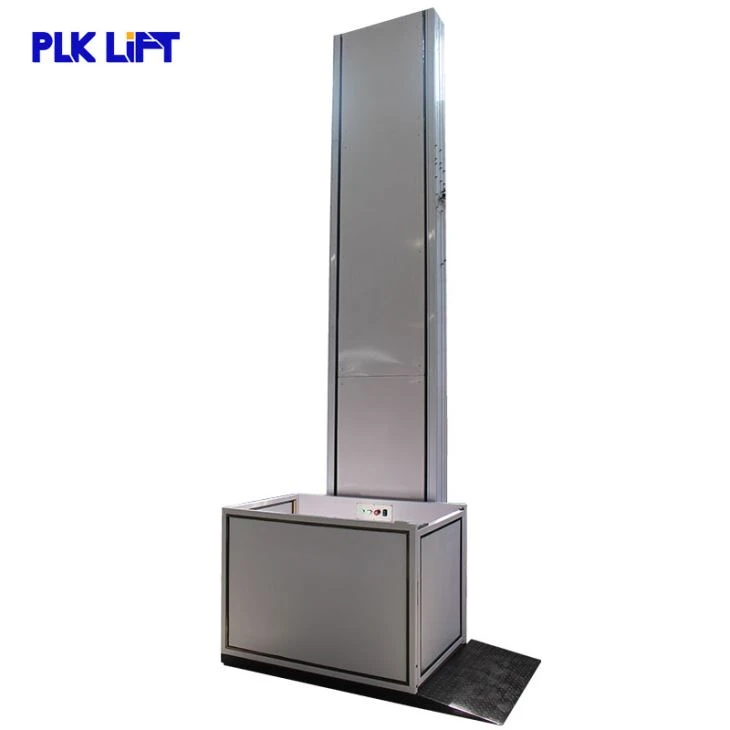

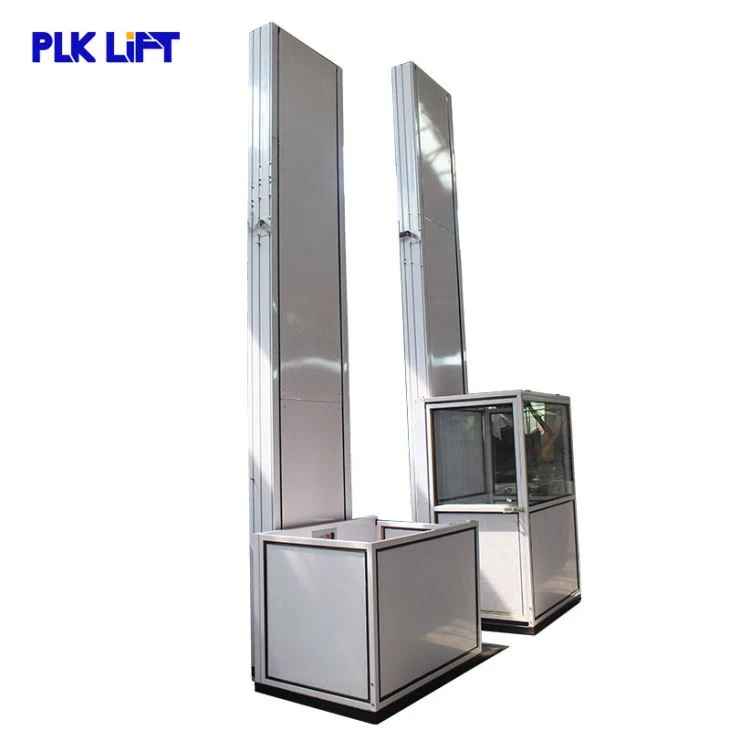

Lift Elevator Home Residential
Wheelchair lifts are durable and safe because they are specifically designed for people with physical disabilities and the elderly.
The car's elevator is made of high aluminum, easy to disassemble and assemble, and unlike welded steel, it has a sturdy design.
Wheelchair lifts are mainly produced from 1 to 10 meters, with a payload of 250 kg, the size of the platform can be adjusted. If you have special color requirements, we can design according to your request.
Hot Tags: lift elevator home residential, China, suppliers, factory, price, Residential Elevators, Domestic Scissor Lift, Stairlifts, Lift Elevator Home Residential, Wheelchair Platform Lift, Scissor Lift Platform For Wheelchair
Model Type | WL2510 | WL2515 | WL2520 | WL2525 | WL2530 | WL2535 | WL2540 | WL2550 | WL2560 |
Max. Platform Height | 1000mm | 1500mm | 2000mm | 2500mm | 3000mm | 3500mm | 4000mm | 5000mm | 6000mm |
Load Capacity | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg |
N.W/G.W(kg) | 350/450 | 450/550 | 550/700 | 700/850 | 780/900 | 850/1000 | 880/1050 | 1000/1200 | 1100/1300 |
Machine Size | 2000*1430*1000 | 2500*1430*1000 | 3000*1430*1000 | 3500*1430*1000 | 4000*1430*1000 | 4600*1430*1000 | 5100*1430*1000 | 6100*1430*1000 | 7100*1430*1000 |
Packing Size(mm) | 2200*1600*1600 | 2600*1600*1600 | 2800*1600*1600 | 3100*1600*1600 | 3300*1600*1600 | 3600*1600*1600 | 3800*1600*1600 | 4300*1600*1600 | 4800*1600*1600 |
Platform size | 1430*1000mm skid proof checkered steel | ||||||||
Min Platform height | 60mm | ||||||||
Speed | 0.06~0.1m/s | ||||||||
Control voltage | 24V/DC | ||||||||
Power Output | 1.1~2.2KW | ||||||||
Voltage | As per your local Standard(single phase or three phase) | ||||||||
Drive System | Hydraulic pump station and electric motor (See details below) | ||||||||
Control Mode | Automatic travel switch(See details below) | ||||||||
Drive Control | Self-resetting system | ||||||||
Overload | Over current relay protection | ||||||||
Materials | Aluminium rails and guard with spraying plastics. (See details below) | ||||||||
Working Condition | Both indoors and outdoors -20°~70°C | ||||||||
Entrance-Exit Way | It’s customized 90°or 180° | ||||||||
Installation | No pit installing, easy to install and remove. Installed both on the floor and on the wall. | ||||||||
Switches | 1. One control panel on the platform. 2. Install two column switches on ground, which can be fixed at any floor needed. 3. Remote control, user can operate lift within 20m. | ||||||||
