Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of residential wheelchair lift for handcapped in China. Please feel free to buy high quality residential wheelchair lift for handcapped at competitive price from our factory. Contact us for more details.

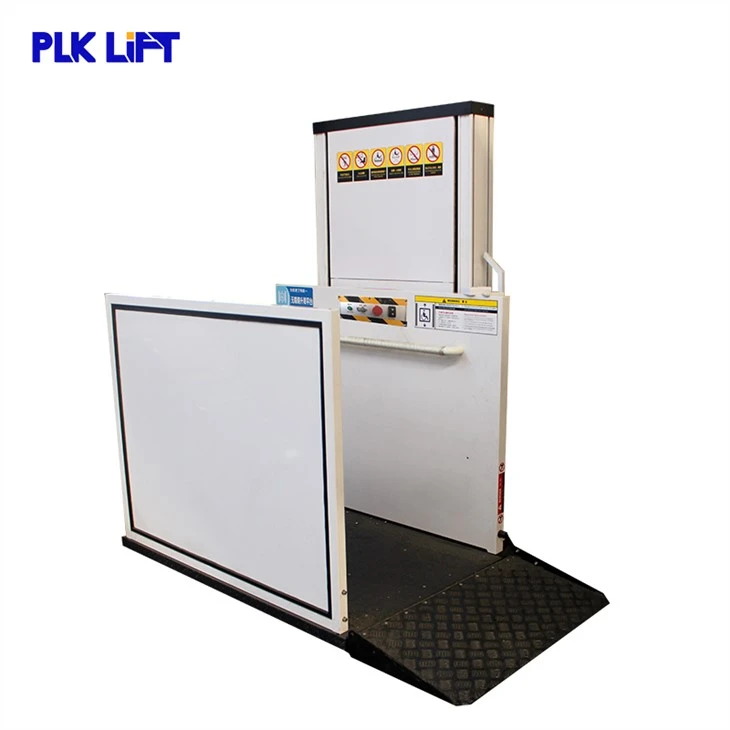

Wheelchair lift is special designed for disabled and elderly people,so it very stable and safety.
The wheelchair lift is made of high-end aluminum, which is very good in process, easy to disassemble and assemble, and not like the Welded iron material,has a rough workmanship.
We mainly produce the wheelchair lift from 1m-10m,the load capacity is 250kg, and the platform size can be customized.If you have a special requirements for color,we can also design according to your request.
|
Standard model of 1 meter to 3 meter maximum platform height |
|||||
|
Model Type |
WL2510 |
WL2515 |
WL2520 |
WL2525 |
WL2530 |
|
Max. Platform Height |
1000mm |
1500mm |
2000mm |
2500mm |
3000mm |
|
Load Capacity |
250kg |
250kg |
250kg |
250kg |
250kg |
|
N.W/G.W(kg) |
350/450 |
450/550 |
550/700 |
700/850 |
780/900 |
|
Machine Size(mm) |
2000*1430* 1300 |
2500*1430* 1300 |
3000*1430* 1000 |
3500*1430* 1000 |
4000*1430* 1000 |
|
Standard model of 3 meter to 6 meter maximum platform height |
|||||
|
Model Type |
WL2530 |
WL2535 |
WL2540 |
WL2550 |
WL2560 |
|
Max. Platform Height |
3000mm |
3500mm |
4000mm |
5000mm |
6000mm |
|
Load Capacity |
250kg |
250kg |
250kg |
250kg |
250kg |
|
N.W/G.W(kg) |
780/900 |
850/1000 |
880/1050 |
1000/1200 |
1100/1300 |
|
Machine Size(mm) |
4000*1430* 1000 |
4600*1430* 1000 |
5100*1430* 1000 |
6100*1430* 1000 |
7100*1430* 1000 |
|
Here as below are the same specification for all models from 1 meter to 6 meters. |
|||||
|
Platform size |
1430*1000mm skid proof checkered steel |
||||
|
Min Platform height |
60mm |
||||
|
Speed |
0.06~0.1m/s |
||||
|
Control voltage |
24V/DC |
||||
|
Power Output |
1.1~2.2KW |
||||
|
Voltage |
As per your local Standard(single phase or three phase) |
||||
|
Drive System |
Hydraulic pump station and electric motor (See details below) |
||||
|
Control Mode |
Automatic travel switch(See details below) |
||||
|
Drive Control |
Self-resetting system |
||||
|
Overload |
Over current relay protection |
||||
|
Materials |
Aluminium rails and guard with spraying plastics. (See details below) |
||||
|
Working Condition |
Both indoors and outdoors -20°~70°C |
||||
|
Entrance-Exit Way |
It's customized 90°or 180° |
||||
