Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of electric drum lifter in China. Please feel free to buy high quality electric drum lifter at competitive price from our factory. Contact us for more details.

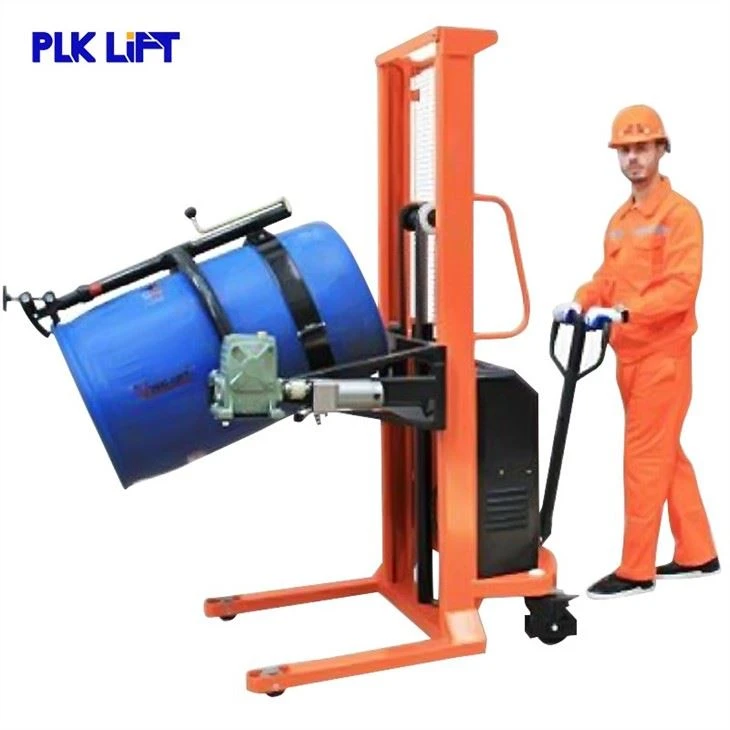

The electric drum lifter is the perfect solution for picking, lifting, tilting, rotating and transporting oil drums in the workshop.
Various models are available, manual movable, semi electric and full electric, self propelled types.
Capacity various from 350kg to 800kg
Adopt the imported electrical vehicle exclusive walking control system
Keep labor saving & high efficiency,Manned pedal can be operated by one people
Data sheet:
Model | ST-650A | ST-650A-1 (With electronic scale) | ST-650B |
Load Capacity | 650kg | 650kg | 650kg |
Lifting Height | 2400mm | 2400mm | 2400mm |
Overall Length | 1960mm | 1960mm | 1450mm |
Overall Width | 1006mm | 1006mm | 865mm |
Overall Height | 1860mm | 1860mm | 1860mm |
Tilting Range | Electric rotating 180° | Electric rotating 180° | / |
Driving Motor | 1.2kw | 1.2kw | 1.2kw |
Lifting Motor | 2.2kw | 2.2kw | 2.2kw |
Battery | 24V/30A | 24V/30A | 24V/30A |
Charger | 24V/120Ah/ | 24V/120Ah/ | 24V/120Ah/ |
Driving Wheel | φ250*80mm | φ250*80mm | φ250*80mm |
Front Wheel | Φ80*55mm | Φ80*55mm | Φ80*55mm |
Tire | Polyurethane | Polyurethane | Polyurethane |
Noise Level | <70db（A) | <70db（A) | <70db（A) |
Net Weight | 518 | 525 | 470 |
Gross Weight | 558 | 565 | 510 |
Packing Size | 196*100*201cm | 196*100*201cm | 145*87*201cm |
Photos Display:
