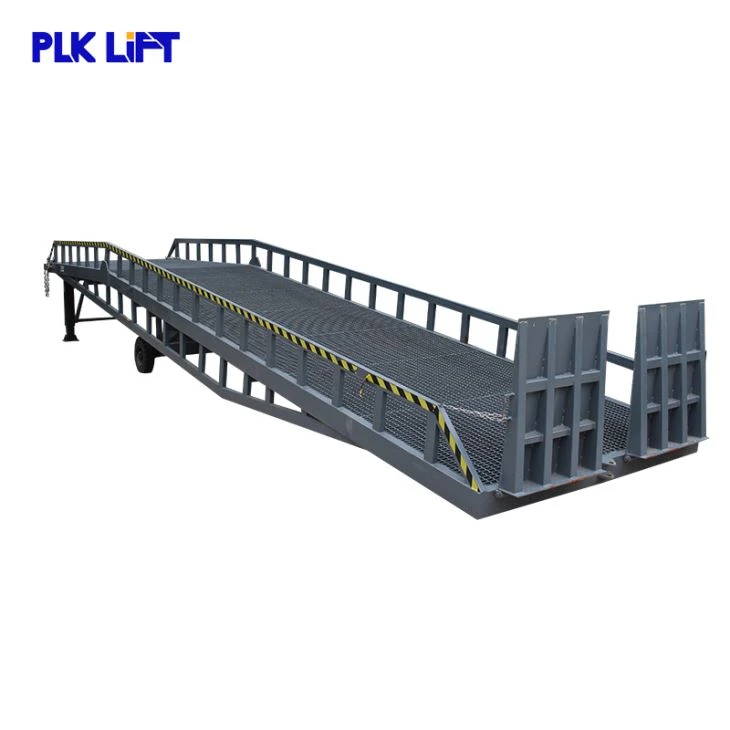

Dock Leveller
It is used to bridge the difference in height and distance between the warehouse floor and vehicle in the most efficient way.
It is a height-adjustable platform used to ensure smooth transition between dock and truck which helps prevent forklift accidents that can cause serious injuries and forklift damages. It is usually comprised of a simple metal plate that is raised from a stowed position and then lowered ont the back of the truck.
Hot Tags: dock leveller, China, suppliers, factory, price, Loading Dock Ramps, Loading Dock Ramp, Loading Docks, Dock Boards, Adjustable Loading Dock Ramp For Sale, PorTable Loading Dock
Model No. | DCQY-6 | DCQY-8 | DCQY-10 | DCQY-12 |
Load Capacity (t) | 6 | 8 | 10 | 12 |
Platform Size (mm) | 11000*2000 | |||
Overall Size(mm) | 11200*2000*1400 | |||
Lip Width (mm) | 400 | |||
Tail Board Length (mm) | 800 | |||
Platform Length(mm) | 2900 | |||
Slope Length(mm) | 7500 | |||
Adjustable Range of Lifting Height(mm) | 900~1700 | |||
Operating | ||||
Platform Materials | 3mm checked steel plate +7mm steel screen | 4mm checked steel plate +7mm steel screen | 5mm checked steel plate +8mm steel screen | |
Lip Materials | 14mm Q235B plate | 18mm Q235B plate | 20mm Q235B plate | |
Lifting Frame | 120×60×4.5 profile steel | 120×60×4.5 profile steel | 160×80×4.5 profile steel | 200×100×6 profile steel |
Bed Frame | 120×60×4.5 profile steel | 120×60×4.5 profile steel | 120×60×4.5 profile steel | 160×80×4.5 profile steel |
Lower Truss | 100*50*3 rectangle tube Q235B | |||
Guardrails | ||||
Tyre | 600-9 solid tyre | |||
Cylinder Pin | 45# Ø50 rod steel*4 | |||
Hydraulic Oil Pipe | ||||
Electrical appliance | Delixi | |||
Hydraulic Oil | ML series antiwear hydraulic oil 6L | |||
Net Weight(kg) | 2350 | 2480 | 2750 | 3100 |
