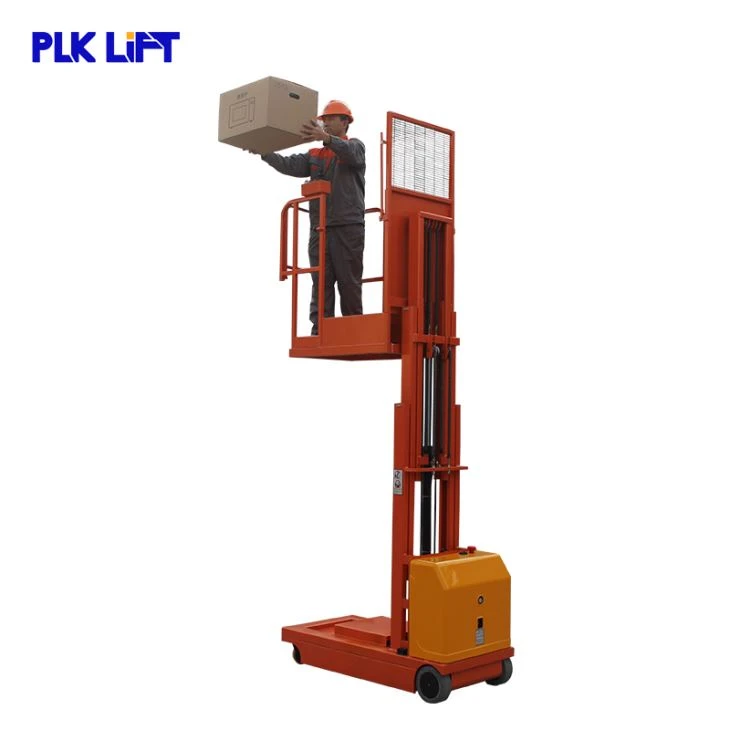

High Level Order Picker
Self propelled order picker is famous for its small compact body size,simple structure and very low failure rate. It moves and lifts all by battery power. Workers can stand on the platform to directly control the lifting and moving of equipment.
Full electric order picker is lighter in weight, easy to implement by single person, flexible and convenient to operate, it is the best choice for stacking and reclaiming warehouses and supermarkets.
Self-drive system for on site maneuvering from platform (stowed)
Roll-out deck extension keeps everything you need within arm’s reach (optional)
Non-marking tyres
Power source - 24V (four 6V AH batteries)
Fit through narrow doorways and aisles
Compact dimensions for space efficient storage.
Hot Tags: high level order picker, China, suppliers, factory, price, Order Picker Lift Truck, Order Picking, Order Picker Fork Lift, Electric Aerial Order Picker, High Level Order Picker, Orderpicking
Model Type | OP3-2.7 | OP3-3.3 | OP3-4.0 | OP3-4.5 | |
Max.Platform Height | mm | 2700 | 3300 | 4000 | 4500 |
Max.Machine Height | mm | 4120 | 5000 | 5400 | 6000 |
Ground Clearance | mm | 40 | |||
Rated Capacity | kg | 300 | |||
Platform Size | mm | 600*640 | |||
Max. Drive Speed (platform Stowed) | km/h | 4 | |||
Max.Drive Speed (platform Elevated) | km/h | 1.6 | |||
Min.turning Radius | mm | 1500 | |||
Max.Climbing Capacity | % | 15~20 | |||
Driving Wheel Size | mm | 230*80 | |||
Caster Size | mm | 6 | |||
Driving Motor | v/kw | 2*24/0.4 | |||
Lifting Motor | v/kw | 24/1.6 | |||
Anerold battery | v/Ah | 2*12/150 | |||
Charger | v/A | 24/15 | |||
Overall Length | mm | 1530 | 1620 | ||
Overall Width | mm | 700 | |||
Overall Height | mm | 1830 | 2130 | 1840 | 2000 |
Overall Net Weight | kg | 430 | 450 | 660 | 680 |
