Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of hidraulic lift in China. Please feel free to buy high quality hidraulic lift at competitive price from our factory. Contact us for more details.

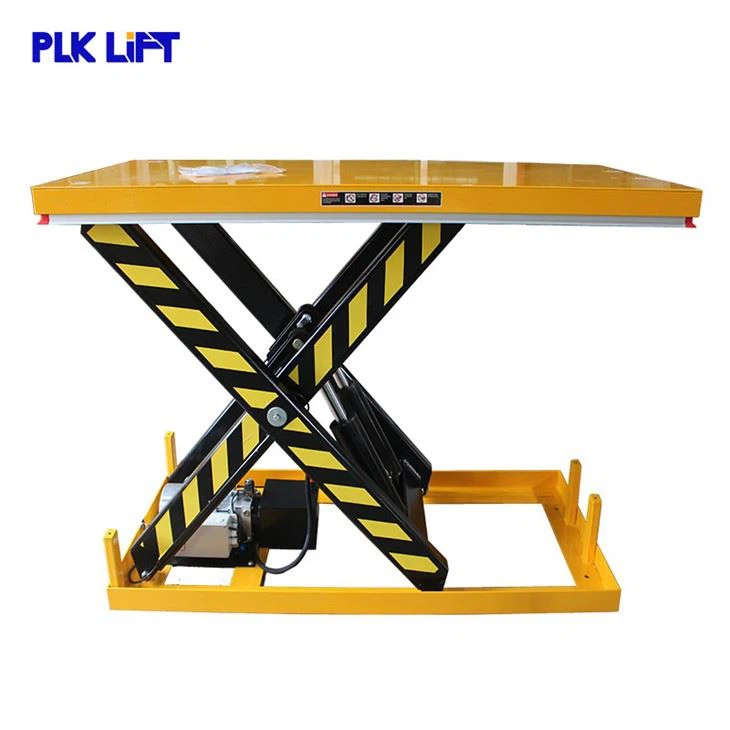

Hidraulic Lift
Most hidraulic scissor lifts are customizable based on customers' needs. Customized features include turning a flat top to one with stainless steel rollers, stationary one to a wheeled one, or nude one to one with bellows.
Model | Load Capacity(KG) | Self Height (MM) | Max Platform Height(MM) | Platform Size(MM) | Lifting time (S) | Voltage (V) | Net weight (KG) |
HW1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | Single scissor 1ph or 3ph | 160 |
HW1002 | 1000 | 205 | 1000 | 1600×1000 | 20~25 | 186 | |
HW1003 | 1000 | 240 | 1300 | 1700×850 | 30~35 | 200 | |
HW1004 | 1000 | 240 | 1300 | 1700×1000 | 30~35 | 210 | |
HW1005 | 1000 | 240 | 1300 | 2000×850 | 30~35 | 212 | |
HW1006 | 1000 | 240 | 1300 | 2000×1000 | 30~35 | 223 | |
HW1007 | 1000 | 240 | 1300 | 1700×1500 | 30~35 | 365 | |
HW1008 | 1000 | 240 | 1300 | 2000×1700 | 30~35 | 430 | |
HW2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 | |
HW2002 | 2000 | 230 | 1050 | 1600×1000 | 20~25 | 268 | |
HW2003 | 2000 | 250 | 1300 | 1700×850 | 25~35 | 289 | |
HW2004 | 2000 | 250 | 1300 | 1700×1000 | 25~35 | 300 | |
HW2005 | 2000 | 250 | 1300 | 2000×850 | 25~35 | 300 | |
HW2006 | 2000 | 250 | 1300 | 2000×1000 | 25~35 | 315 | |
HW2007 | 2000 | 250 | 1400 | 1700×1500 | 25~35 | 415 | |
HW2008 | 2000 | 250 | 1400 | 2000×1800 | 25~35 | 500 | |
HW4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 | |
HW4002 | 4000 | 240 | 1050 | 2000×1200 | 30~40 | 405 | |
HW4003 | 4000 | 300 | 1400 | 2000×1000 | 35~40 | 470 | |
HW4004 | 4000 | 300 | 1400 | 2000×1200 | 35~40 | 490 | |
HW4005 | 4000 | 300 | 1400 | 2200×1000 | 35~40 | 480 | |
HW4006 | 4000 | 300 | 1400 | 2200×1200 | 35~40 | 505 | |
HW4007 | 4000 | 350 | 1300 | 1700×1500 | 35~40 | 570 | |
HW4008 | 4000 | 350 | 1300 | 2200×1800 | 35~40 | 655 | |
HD1000 | 1000 | 305 | 1780 | 1300X820 | 35-45 | Multi scissor 1ph or 3ph | 210 |
HD2000 | 2000 | 350 | 1780 | 1300X850 | 35-45 | 295 | |
HD4000 | 4000 | 400 | 2050 | 1700X1200 | 55-65 | 520 | |
HT1000 | 1000 | 470 | 3000 | 1700x1000 | 35-45 | 450 | |
HT2000 | 2000 | 560 | 3000 | 1700x1000 | 50-60 | 750 | |
HF400 | 400 | 600 | 4140 | 1700x1000 | 30-40 | 800 | |
HF800 | 800 | 706 | 4210 | 1700x1000 | 70-80 | 858 |
