Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of 20ft scissor lift in China. Please feel free to buy high quality 20ft scissor lift at competitive price from our factory. Contact us for more details.

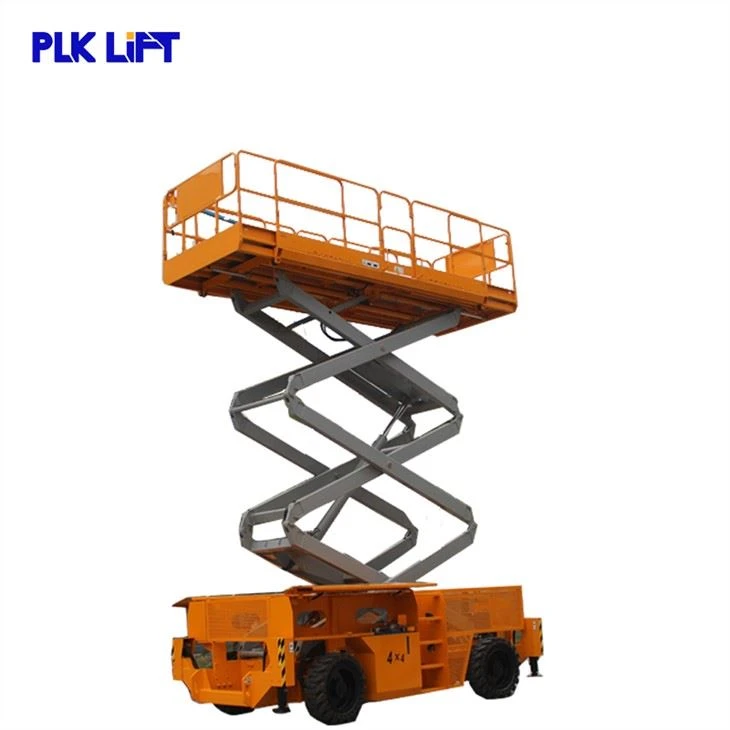

20ft Scissor Lift
The principle of the mobile scissor lift platform is based on the use of a hydraulic lift and an electronic integrated controller. It is convenient to lift and adjust the height in time. Considering safety issues, it is generally equipped with a non-slip insulating plastic water wave engraved plate, which is convenient to replace and is beautiful and generous. Without the laborious effort of manually lifting a ladder, it is really safe and fast! save time and energy!
Hot Tags: 20ft scissor lift, China, suppliers, factory, price, Skyjack Scissor Lift, Aerial Equipment, Scissor Platform Lift, Platform Scissor Lift, Scissor Lift Electric, Mini Scissor Lift
| GTJZ-08RT | GTJZ-10RT | GTJZ-12RT | |
| Working height max(m) | 10 | 12 | 14 |
| Platform height max(m) | 8 | 10 | 12 |
| (1)Platform height min(m) | 1.22 | 1.34 | 1.46 |
| (2)Outreach(m) | 1.5 | 1.5 | 1.5 |
| Lifting capacity(kg) | 567 | 454 | 345 |
| Lifting capacity(kg)(Extended platform) | 136 | 136 | 136 |
| Platform Size | |||
| (3)Lateral length(m) | 2.5 | 2.5 | 2.5 |
| (4)Extended length(m) | 4 | 4 | 4 |
| (5)Lateral width(m) | 1.6 | 1.6 | 1.6 |
| (6)Fence height(m) | 1.15 | 1.15 | 1.15 |
| (7)Skirting board height(m) | 0.15 | 0.15 | 0.15 |
| Stowed size | |||
| (8)Stowed length(m) | 2.67 | 2.67 | 2.67 |
| (9)Width(m) | 1.75 | 1.75 | 1.75 |
| (10)Height(m) | 2.38 | 2.5 | 2.6 |
| (11)Folded height(m) | 1.68 | 1.8 | 1.98 |
| (12)Wheelbase(m) | 1.85 | 1.85 | 1.85 |
| Ground clearance(m) | 0.17 | 0.17 | 0.17 |
