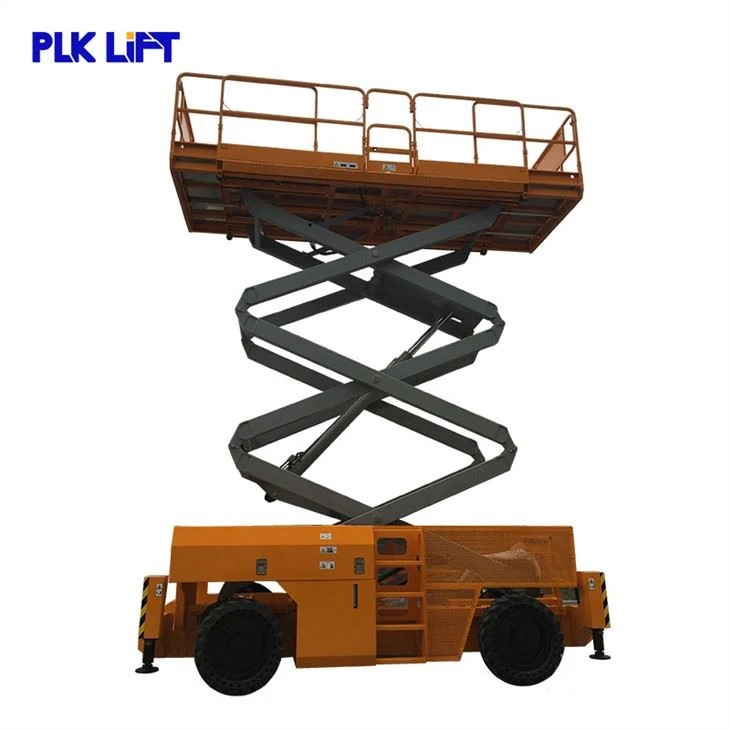

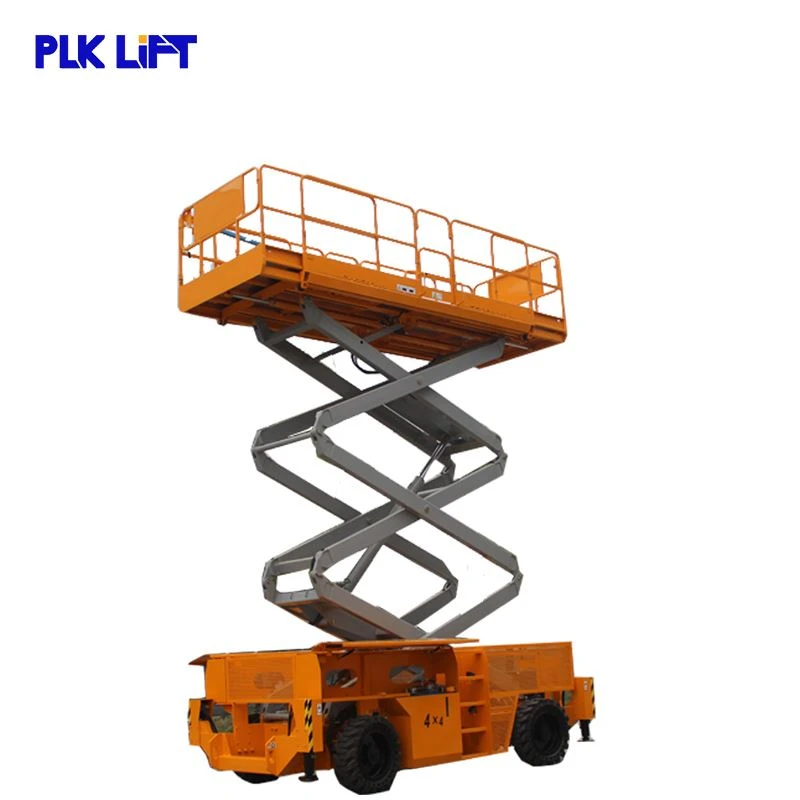

Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of work platform lifts in China. Please feel free to buy high quality work platform lifts at competitive price from our factory. Contact us for more details.
Standard Features
1. Foldable guardrail
2. Diagnosis system
3. AC wiring to platform
4. 4 wheel drive
5. Tilt lever sensor with an audible alarm
6. Lowering alarm
7. Horn
8. Hour meter
9. Dual flashing beacon
10. Emergency pump
11. Safety brackets
12. Proportional controls
13. Solid rough tire
Options Features
1. Automatic leveling hydraulic outriggers
2. Non-mark rough tire
3. Air line to platform
4. Motor cold starting components
5. Overload sensor
6. Moveable alarm components
Hot Tags: work platform lifts, China, suppliers, factory, price, Electric Scissor Lift Manufacturers, Hydraulic Car Lift, Mobile Scissor Lift Platform, Lightweight Scissor Lift, Platform Scissor Lift, Man Lift Patform
|
Model No. |
TSP08-D |
TSP010-D |
TSP012-D |
|
|
Lifting Height (m) |
8 |
10 |
12 |
|
|
Work Height (m) |
10 |
12 |
14 |
|
|
Lifting Capacity (kg) |
567 |
454 |
345 |
|
|
Platform Size (mm) |
2500*1600 |
2500*1600 |
2500*1600 |
|
|
Platform Extend Size (mm) |
1500 |
1500 |
1500 |
|
|
Lifting capacity(kg)(Extended platform) |
136 |
136 |
136 |
|
|
Fence height(mm) |
1150 |
1150 |
1150 |
|
|
Skirting board height(mm) |
150 |
150 |
150 |
|
|
Stowed size(mm) |
2670*1750*2380 |
2670*1750*2500 |
2670*1750*2600 |
|
|
Folded height(mm) |
1680 |
1800 |
1980 |
|
|
Wheelbase(mm) |
1850 |
|||
|
Ground clearance(mm) |
170 |
|||
|
Turn diameter(mm)(inside) |
1520 |
|||
|
Turn diameter(mm)(outside) |
3680 |
|||
|
Load number max(mm) |
3000 |
|||
|
Raised time(s) |
30 |
43 |
50 |
|
|
Lowering time(s) |
40 |
47 |
47 |
|
|
Traction speed(km/h) |
4 |
4 |
4 |
|
|
Safe speed(km/h) |
0.8 |
0.8 |
0.8 |
|
|
Vertical tilt° |
3 |
3 |
3 |
|
|
Lateral tilt° |
2 |
2 |
2 |
|
|
Control/Drive |
Proportional control/4 wheels drive |
|||
|
Weight(kg) |
3280 |
3830 |
4200 |
|
|
Weight(kg)(with outriggers) |
3680 |
4280 |
4600 |
|
|
Power source |
Kubota D1105 |
|||
|
Hydraulic tank capacity(L) |
68 |
68 |
68 |
|
|
Feul tank capacity(L) |
57 |
57 |
57 |
|
|
Gradeability |
35% |
30% |
30% |
|
|
*Outrigger level ability max° |
Front to rear |
6.6 |
6.6 |
6.6 |
|
Left to right |
10.6 |
10.6 |
10.6 |
|
|
Tire size(mm) |
Solid tires 26*12-16.5 |
|||
