Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of electric self propelled scissor lift in China. Please feel free to buy high quality electric self propelled scissor lift at competitive price from our factory. Contact us for more details.

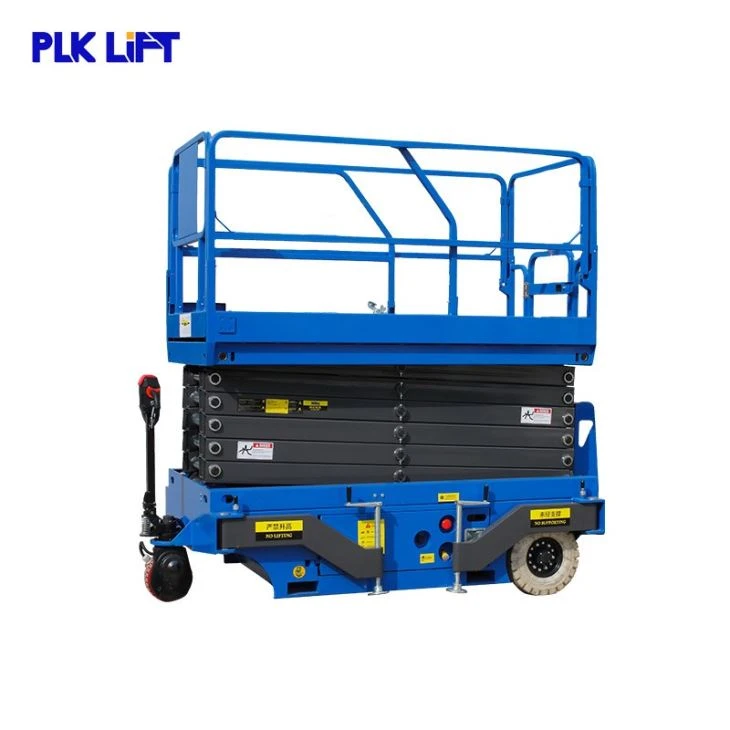

Electric Self Propelled Scissor Lift
Elecrtic Self Propelled Scissor Lift details well known under the Chinese brand.It runs on direct current,can be controlled manually and moved automatically,and the speed is adjustable.There are many precautions.The electric self-propelled scissor lift works manually or with traction.details well known under the Chinese brand. It runs on direct current, can be controlled manually and moved automatically, and the speed is adjustable. There are many precautions. It works manually or with traction.
Hot Tags: electric self propelled scissor lift, China, suppliers, factory, price, Scissor Lift With Extendable Platform, Mobile Scissor Lift Manufacturers, Lift Scissor, Electric Self Propelled Scissor Lift, Mini Scissor Man Lift, Scissor Lift Automotive
|
Model |
GTJZ-H6 |
GTJZ-H8 |
|
|
Max.Platform Height |
mm |
6000 |
8000 |
|
Max. Work Height |
mm |
8000 |
10000 |
|
Max.Machine Height |
mm |
7100 |
9100 |
|
Min.Platform Height |
mm |
1010 |
1200 |
|
Ground Clearance |
mm |
20 |
|
|
Lift Rated Capacity |
kg |
300 |
300 |
|
Platform Extend Capacity |
kg |
100 |
100 |
|
Platform Size |
mm |
1880×900 |
|
|
Platform Extend Length |
mm |
900 |
|
|
Max.Drive Speed (platform Stowed) |
km/h |
3~4 |
|
|
Max.Drive Speed (platform Elevated) |
km/h |
0.6~1 |
|
|
Min.turning Radius |
mm |
2000 |
|
|
Max.Climbing Capacity |
% |
10~15 |
|
|
Driving Wheel Size |
mm |
φ305×100 |
|
|
Caster Size |
in |
φ305×100 |
|
|
Driving Motor |
v/kw |
2×24/0.5 |
|
|
Lifting Motor |
v/kw |
24/2.2 |
|
|
Anerold battery |
v/Ah |
2×12/150 |
|
|
Charger |
V/A |
24/15 |
|
|
Pothole Protection System |
Machine Control |
||
|
Overall Length |
mm |
2050 |
|
|
Overall Width |
mm |
900 |
|
|
Overall Height |
mm |
2150 |
2270 |
|
Overall Net Weight |
kg |
1500 |
1700 |
