Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of hydraulic scissor lift in China. Please feel free to buy high quality hydraulic scissor lift at competitive price from our factory. Contact us for more details.

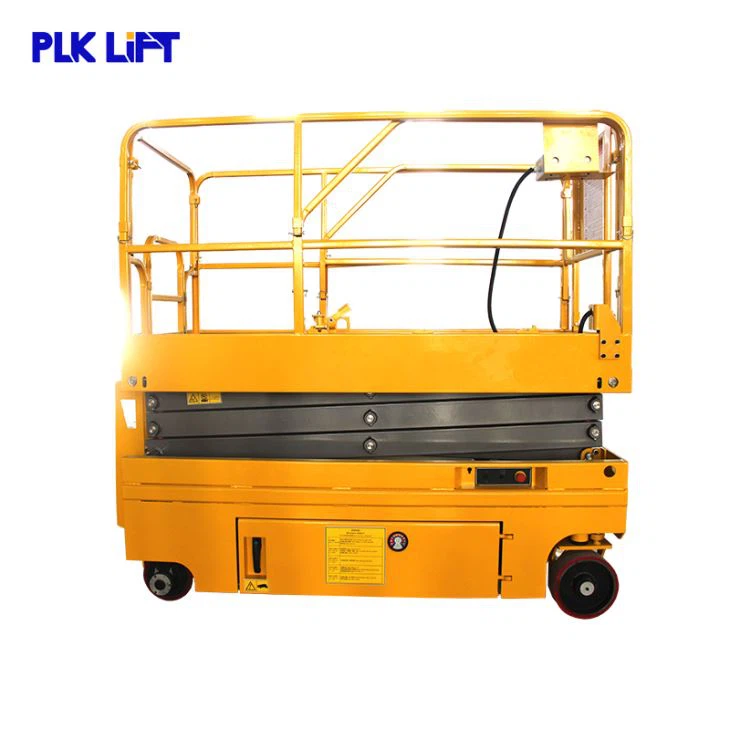

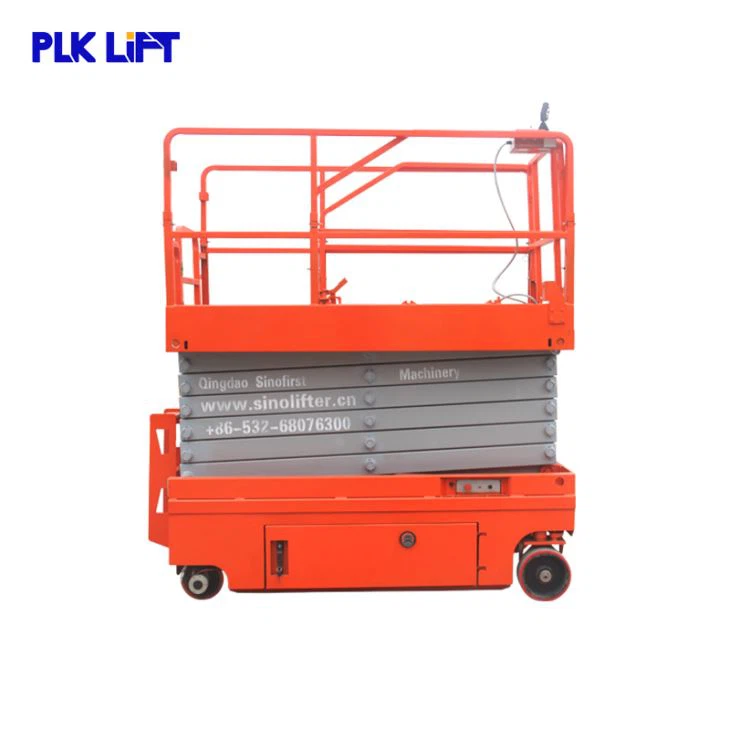

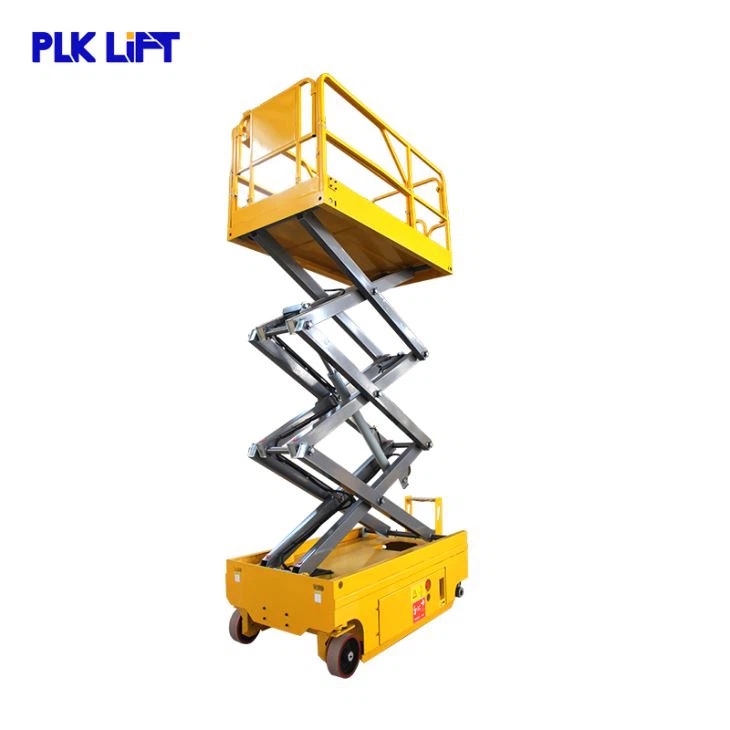

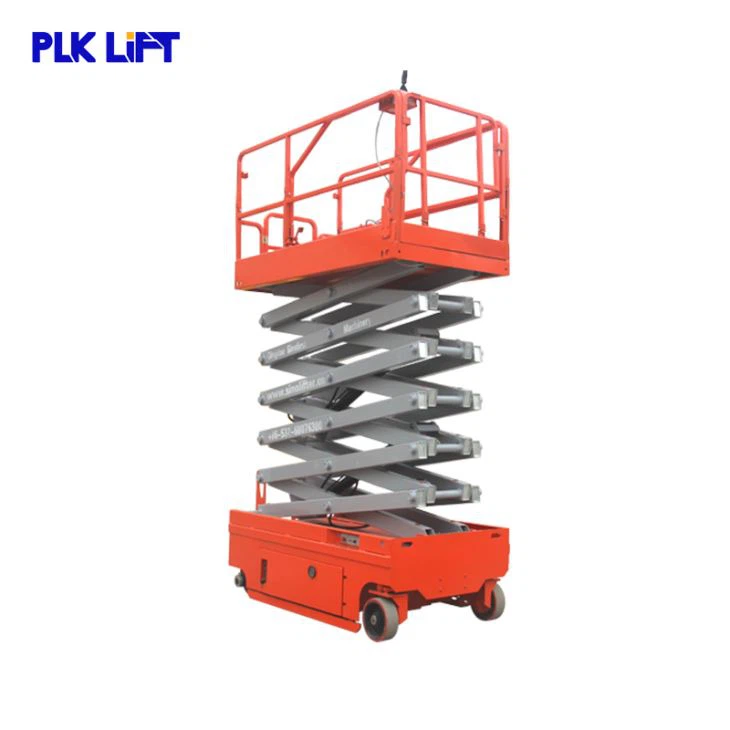

Hydraulic scissor lift
It moved and lifts by battery power. Driving control panel and lifting control panel are all on the platform.
Operator can control moving, turning, lifting, lowering and all other movement on the platform. Of course, lifting control panel is also available one side of the body.
Scissor lift structure is very compact so as to guarantee the structure is strong enough.
Model No. | GTJZ06B | GTJZ08B | GTJZ10B | GTJZ12B |
Max.working height(m) | 8 | 10 | 12 | 14 |
Max.platform height(m) | 6 | 8 | 10 | 12 |
Lifting capacity(kg) | 320 | 320 | 320 | 320 |
Extended platform capacity(kg) | 113 | 113 | 113 | 113 |
Platform size(m) | 2.26*1.13*1.1 | 2.26*1.13*1.1 | 2.26*1.13*1.1 | 2.26*1.13*1.1 |
Overall size-guardrail unfolding(m) | 2.48*1.17*2.21 | 2.48*1.17*2.34 | 2.48*1.17*2.47 | 2.48*1.17*2.6 |
Overall size-guardrail removed(m) | 2.48*1.17*1.76 | 2.48*1.17*1.89 | 2.48*1.17*2.02 | 2.48*1.17*2.15 |
Extended platform size(m) | 0.9 | 0.9 | 0.9 | 0.9 |
Ground clearance(m) | 0.1/0.02 | 0.1/0.02 | 0.1/0.02 | 0.1/0.02 |
Wheel base(m) | 1.92 | 1.92 | 1.92 | 1.92 |
Minimum turn radius-inner wheel | 0 | 0 | 0 | 0 |
Minimum turn radius-outer wheel(m) | 2.2 | 2.2 | 2.2 | 2.2 |
Driving motor(v/kw) | 2*24/0.75 | 2*24/0.75 | 2*24/0.75 | 2*24/0.75 |
Lifting Motor(v/kw) | 24/1.5 | 24/1.5 | 24/2.2 | 24/2.2 |
Lifting speed(m/min) | 4 | 4 | 4 | 4 |
Running speed-folding(km/h) | 4 | 4 | 4 | 4 |
Running speed-rising | 0 | 0 | 0 | 0 |
Battery(v/ah) | 4*6/180 | 4*6/180 | 4*6/180 | 4*6/180 |
charger(v/a) | 24/25 | 24/25 | 24/25 | 24/25 |
Maximum climbing ability | 25% | 25% | 25% | 25% |
Maximum working allowable angle | 2°/3° | 2°/3° | 2°/3° | 1.5°/3° |
Wheel Size-driving wheel(mm) | Φ250*80 | Φ250*80 | Φ250*80 | Φ250*80 |
Wheel size-stuffed(mm) | Φ300*100 | Φ300*100 | Φ300*100 | Φ300*100 |
Net Weight(kg) | 2300 | 2500 | 2700 | 2900 |
