Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of mobile work platform in China. Please feel free to buy high quality mobile work platform at competitive price from our factory. Contact us for more details.

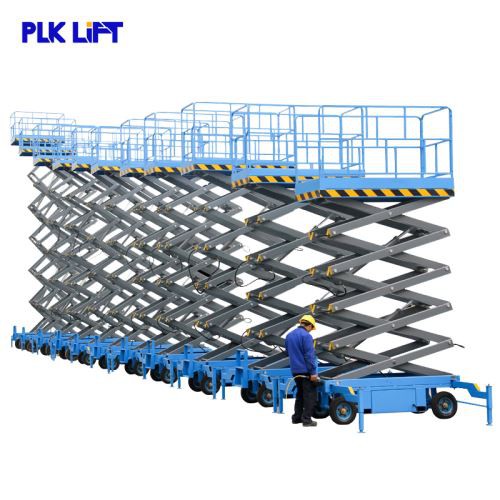

Mobile Work Platform
It is one of the most popular aerial work platforms because of its strong structure, heavy duty load capacity ,simple structure and cheap price.
It is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.
The power can be choosed with AC,DC or both AC&DC which can make you work flexible and efficient.
| Model No. | Table Size (mm) | Loading Capacity | Platform Height | Working Height (m) | Retract Height (m) | Voltage | Overall size (mm) | N.W.(kg) |
| (kg) | (m) | (V) | ||||||
| 500KG Loading Capacity | ||||||||
| SJY0506 | 2100*830 | 500 | 6 | 8 | 1.2 | 1/3phase | 2250*950*1200 | 880 |
| SJY0507 | 2100*830 | 500 | 7 | 9 | 1.28 | 1/3phase | 2250*950*1280 | 970 |
| SJY0508 | 2100*930 | 500 | 8 | 10 | 1.38 | 1/3phase | 2250*1060*1380 | 1050 |
| SJY0509 | 2100*930 | 500 | 9 | 11 | 1.5 | 1/3phase | 2250*1060*1500 | 1165 |
| SJY0510 | 2100*1230 | 500 | 10 | 12 | 1.53 | 1/3phase | 2250*1350*1530 | 1360 |
| SJY0311 | 2100*1230 | 300 | 11 | 13 | 1.65 | 3phase | 2250*1350*1650 | 1400 |
| SJY0512 | 2550*1530 | 500 | 12 | 14 | 1.75 | 3phase | 2796*1670*1750 | 2260 |
| SJY0514 | 2812*1530 | 500 | 14 | 16 | 1.81 | 3phase | 3067*1730*1810 | 2400 |
| SJY0316 | 2812*1600 | 300 | 16 | 18 | 2.08 | 3phase | 3067*1800*2080 | 3500 |
| SJY0318 | 3070*1600 | 300 | 18 | 20 | 2.08 | 3phase | 3321*1810*2080 | 3900 |
| 1000KG Loading Capacity | ||||||||
| SJY1004 | 2100*1200 | 1000 | 4 | 6 | 1.18 | 3phase | 2250*1350*1180 | 1250 |
| SJY1006 | 2100*1200 | 1000 | 6 | 8 | 1.3 | 3phase | 2200*1350*1300 | 1400 |
| SJY1008 | 2100*1200 | 1000 | 8 | 10 | 1.42 | 3phase | 2200*1350*1420 | 1585 |
| SJY1010 | 2100*1200 | 1000 | 10 | 12 | 1.53 | 3phase | 2200*1350*1530 | 1700 |
| SJY1012 | 2550*1530 | 1000 | 12 | 14 | 1.75 | 3phase | 2796*1670*1750 | 2560 |
| SJY1014 | 2812*1530 | 1000 | 14 | 16 | 1.81 | 3phase | 3067*1750*1810 | 2765 |
| 1500KG Loading Capacity | ||||||||
| SJY1506 | 2100*1530 | 1500 | 6 | 8 | 1.53 | 3phase | 2250*1750*1530 | 1780 |
| SJY1508 | 2100*1530 | 1500 | 8 | 10 | 1.69 | 3phase | 2250*1750*1690 | 2070 |
| SJY1510 | 2100*1530 | 1500 | 10 | 12 | 1.85 | 3phase | 2250*1750*1850 | 2250 |
| SJY1512 | 2550*1530 | 1500 | 12 | 14 | 1.85 | 3phase | 2250*1762*1850 | 2900 |
| SJY1514 | 2816*1600 | 1500 | 14 | 16 | 1.96 | 3phase | 3045*1852*1960 | 3400 |
| 2000KG Loading Capacity | ||||||||
| SJY2006 | 2100*1530 | 2000 | 6 | 8 | 1.53 | 3phase | 2250*1750*1530 | 1780 |
| SJY2008 | 2100*1530 | 2000 | 8 | 10 | 1.69 | 3phase | 2250*1750*1690 | 2070 |
| SJY2010 | 2100*1530 | 2000 | 10 | 12 | 1.85 | 3phase | 2250*1750*1850 | 2250 |
| SJY2012 | 2550*1600 | 2000 | 12 | 14 | 1.954 | 3phase | 2796*1852*1954 | 3200 |
| SJY2014 | 2816*1600 | 2000 | 14 | 16 | 2.23 | 3phase | 3067*1852*2230 | 3900 |
