Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of rough terrain scissor lift for sale in China. Please feel free to buy high quality rough terrain scissor lift for sale at competitive price from our factory. Contact us for more details.

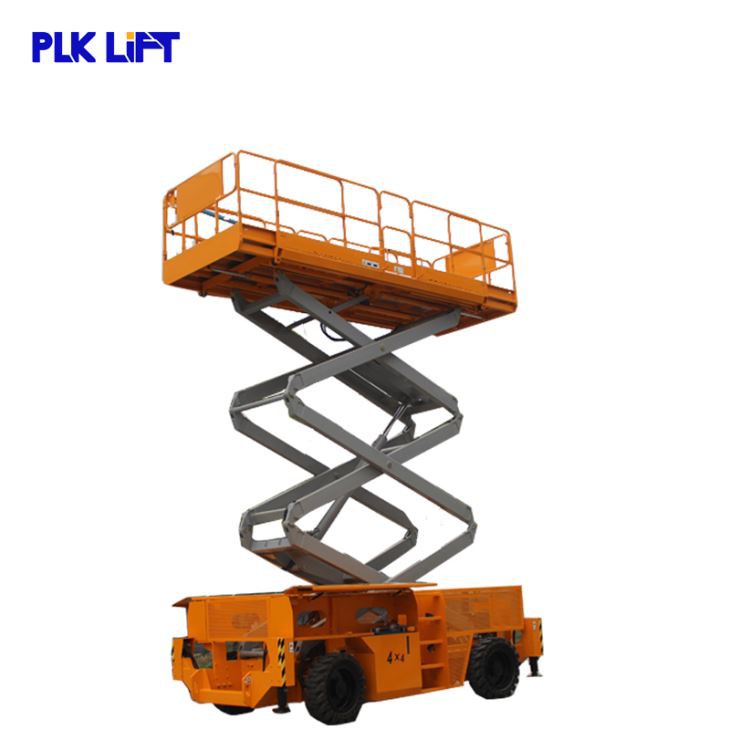

Rough Terrain Scissor Lift For Sale
Suitable for outdoor use where ground conditions are uneven, diesel scissor lifts provide a large working platform capable.
With many models fitted with self-levelling jack legs these machines can set up and operate quickly and efficiently giving the operator access to areas directly above or alongside the machine base.
Often they are also fitted with on board power generators capable of powering small hand tools with no requirement for an external power source.
Hot Tags: rough terrain scissor lift for sale, China, suppliers, factory, price
Model Type No. | SP10D | SP13D | SP16D |
Working Height Maximum | 12 m | 15 m | 18 m |
Platform Height Maximum | 10 m | 13 m | 16 m |
Lift capacity | 1150 kg | 680kg | 680 kg |
Lift capacity (extension deck) | 230 kg | 230kg | 230 kg |
Length Ⓓ | 4.2/4.81m | 4.2m /4.81m | 4.2/4.81 m |
Width Ⓔ | 2.28 m | 2.28m | 2.28 m |
Height(stowed)Ⓒ | 2.81 m | 3.03m | 3.25 m |
Wheel baseF | 2.84m | 2.84m | 2.84 m |
Ground clearance-centerⒼ | 0.23 m | 0.23m | 0.23 m |
Platform measurement Ⓑ*Ⓐ | 3.95*1.83 m | 3.95×1.83 m | 3.95*1.83 m |
Extension deck measurement | 1.22m+1.52 m | 1.22m + 1.52 m | 1.22m+1.52 m |
Turning radius inside /outside | 2.78m /4.95 m | 2.78m / 4.95 m | 2.78m / 4.95 m |
Travel speed(stowed) | 6.3km/h | 6.3km/h | 6.3km/h |
Travel speed(raised ) | 1.1km/h | 1.1km/h | 1.1 km/h |
Grade ability | 50% | 50% | 0.45 |
Sold tire | 33×12-20 | 33×12-20 | 33×12-20 |
weight | 6850kg | 7350 kg | 8850kg |
Fuel tank volume | 115L | 115L | 115L |
Hydraulic tank volume | 170L | 170L | 170L |
Drive mode | 4*4*2 | 4*4*2 | 4*4*2 |
Engine | Yanmar | Yanmar | Yanmar |
