Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of small electric scissor lift in China. Please feel free to buy high quality small electric scissor lift at competitive price from our factory. Contact us for more details.

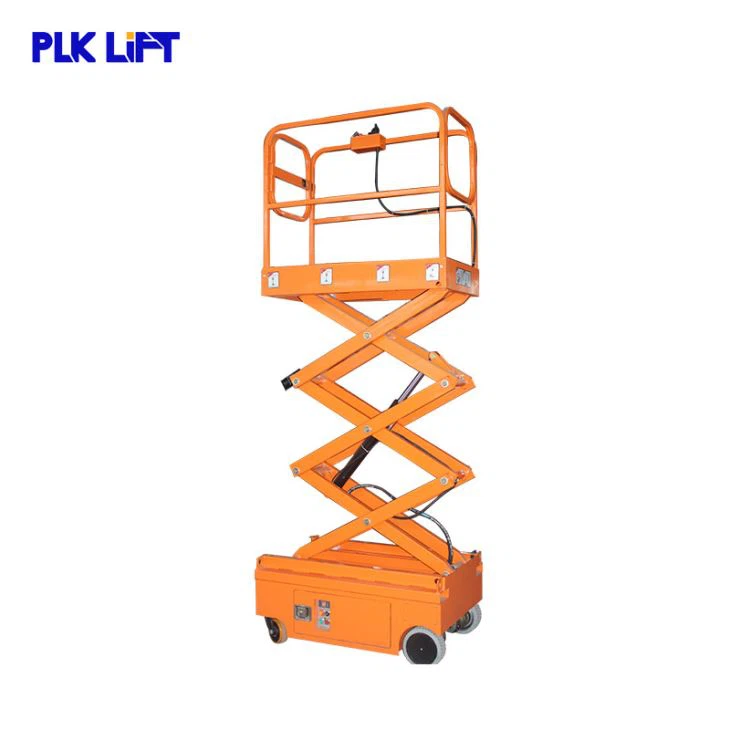

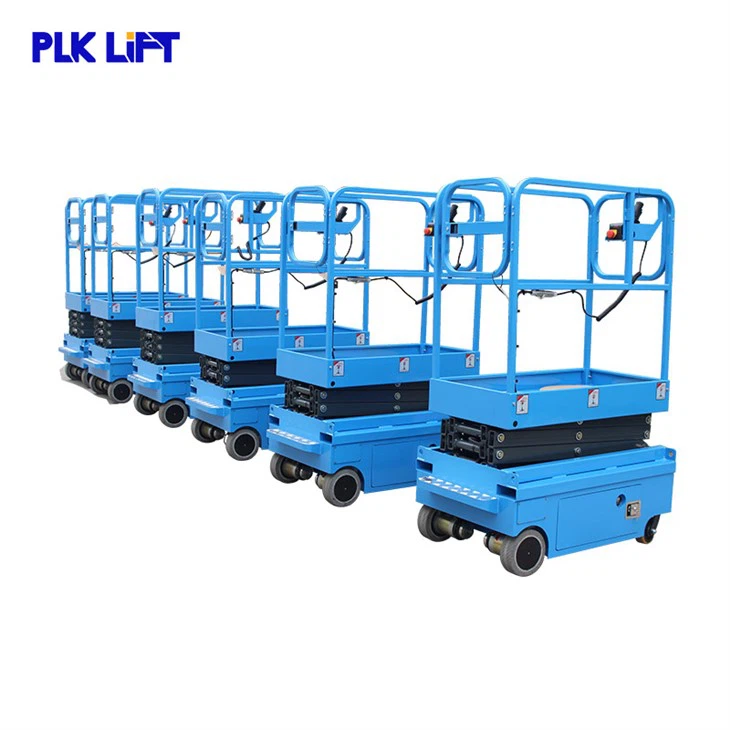

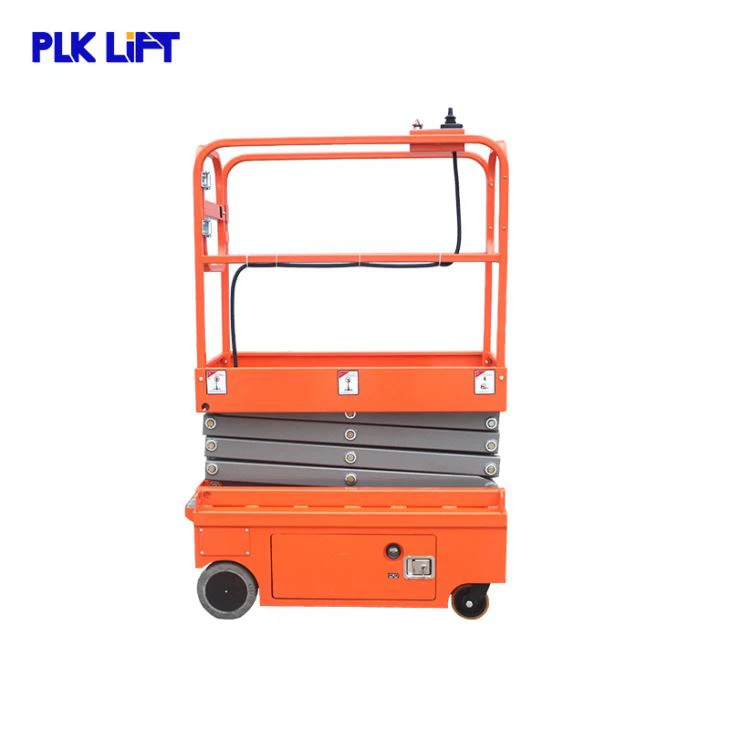

Small Electric Scissor Lift
It moving and lifting by DC power and it equips explosion-proof valves and emergency decline valve.
Light weight with small volume which make it easy to arrange shipping to all over the world.
Maintenance video will be given once the electric scissor lift table break to help you repair.
Hot Tags: small electric scissor lift, China, suppliers, factory, price, Small Electric Scissor Lift, Small Scissors Lift
Model Type | GTJZ5.0 | GTJZ5.9 | GTJZ6.8 | |
Lifting capacity | kg | 300 | 300 | 300 |
Maximum working height | mm | 5000 | 5900 | 6800 |
Maximum platform height | mm | 3000 | 3900 | 4800 |
Whole length | mm | 1180 | 1180 | 1180 |
Whole width | mm | 760 | 760 | 760 |
Whole width | mm | 1830 | 1930 | 1990 |
Platform size | mm | 1170x600 | 1170x600 | 1170x600 |
Minimum ground clearance | mm | 60 | 60 | 60 |
Wheelbase | mm | 990 | 990 | 990 |
Minimum turn radius | mm | 1200 | 1200 | 1200 |
Driving Motor | v/kw | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 |
Lifting Motor | v/kw | 24/0.8 | 24/0.8 | 24/0.8 |
Running speed(platform Stowed) | km/h | 4 | 4 | 4 |
Running speed(platform Elevated) | km/h | 0.8 | 0.8 | 0.8 |
Rising/falling speed | sec | 20/30 | 20/30 | 20/30 |
Battery | V/Ah | 2×12/60 | 2×12/60 | 2×12/60 |
Charger | V/A | 24/10 | 24/10 | 24/10 |
Maximum climbing ability | % | 10-15 | 10-15 | 10-15 |
Maximum working allowable angle | / | 2° | 2° | 2° |
Driving Wheel | mm | φ230x80 | φ230x80 | φ230x80 |
Front Wheel | mm | φ150x60 | φ150x60 | φ150x60 |
Overall Net Weight | kg | 490 | 600 | 760 |
