Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of comprehensive overview of vacuum lifter in China. Please feel free to buy high quality comprehensive overview of vacuum lifter at competitive price from our factory. Contact us for more details.

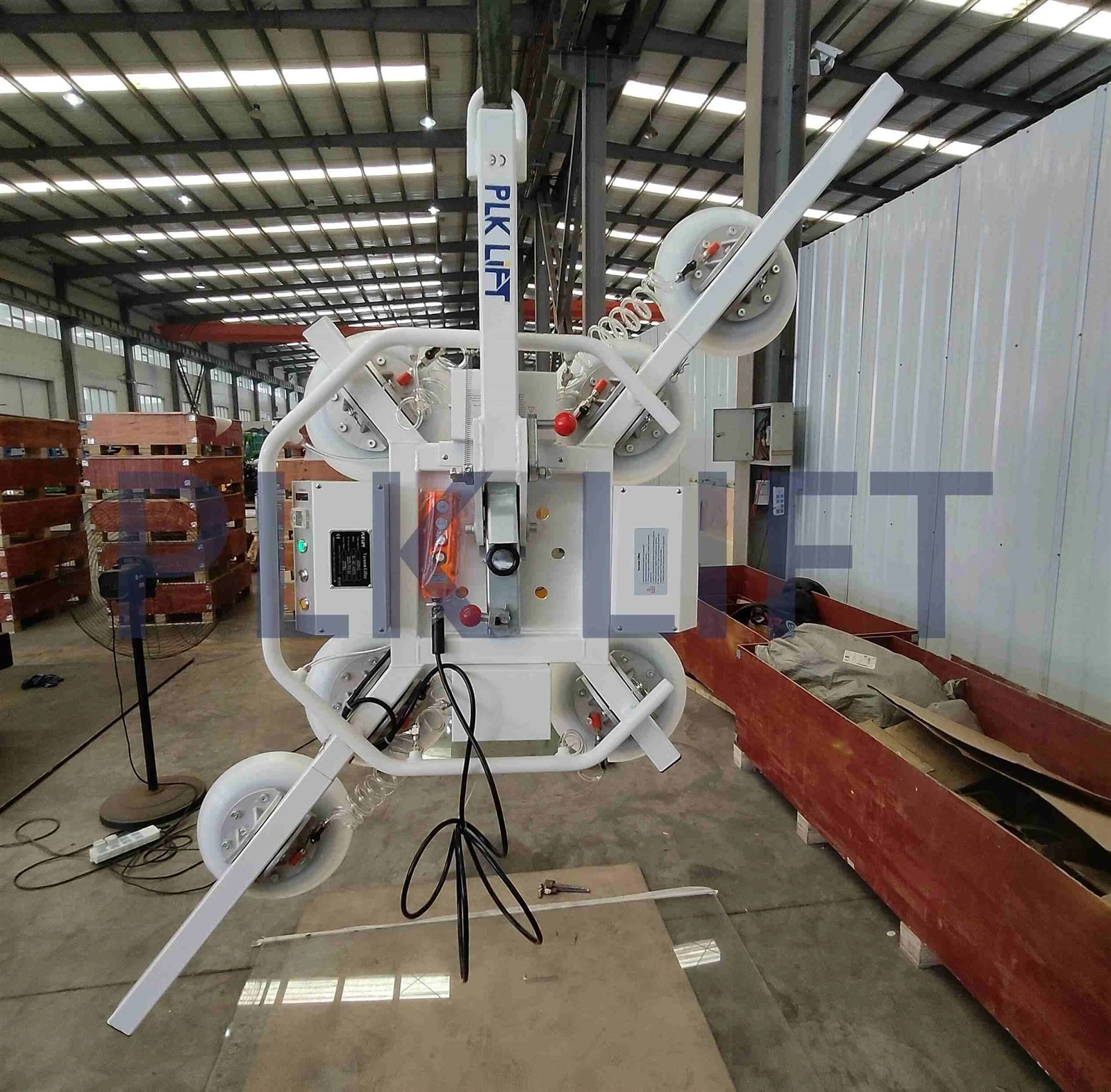

Vacuum Glass Lifter Working Mode：
Creating a Vacuum: The pads are pressed firmly against the clean, flat glass surface. A pump (manual lever or electric) is operated to evacuate the air from inside the pads.
Atmospheric Pressure: Once the air is removed, the atmospheric pressure on the outside of the pad (approx. 14.7 psi at sea level) exerts a massive force, holding the pad securely to the glass.
Lifting and Maneuvering: The lifter is attached to a handle or frame, which the operator uses to lift and guide the glass. The vacuum pressure is maintained throughout the process.
Release: To release the glass, the vacuum is slowly broken, usually by activating a release valve, allowing air to flow back into the pads.
Hot Tags: Comprehensive Overview Of Vacuum Lifter, China, suppliers, factory, price, Vacuum Glass Lifter, Manual Glass Lifter, Glass Lifter Manual, Others, Electric Vacuum Glass Lifter, Vacuum Lifter For Glass Sheet
|
Model |
|
GL-SC-400X |
GL-SC-600X |
GL-SC-800X |
GL-SC-1000X |
GL-SC-1200X |
|
Lifting Capacity |
kg |
400 |
600 |
800 |
1000 |
1200 |
|
Cup Qty |
pcs |
4 |
6 |
8 |
10 |
12 |
|
Single Cup Size |
mm |
300 |
300 |
300 |
300 |
300 |
|
Single Cup Lifting Capacity |
kg |
100 |
100 |
100 |
100 |
100 |
|
Rotation & Tilting |
/ |
360°manual rotation & 90° manual tilting |
||||
|
Battery & Charger |
/ |
12AH DC 12V battery, smart charger with power indicator |
||||
|
Control System |
/ |
5m long wire control (optional remote control: +USD30) |
||||
|
Sucker Frame Size |
mm |
850*750*300 |
1800*900*300 |
1760*1460*300 |
1900*1600*300 |
1900*1600*300 |
|
Extension Bar Length |
mm |
500 |
||||
|
Package Size |
mm |
1300*870*370 |
||||
