Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of glass lifting equipment for usa in China. Please feel free to buy high quality glass lifting equipment for usa at competitive price from our factory. Contact us for more details.

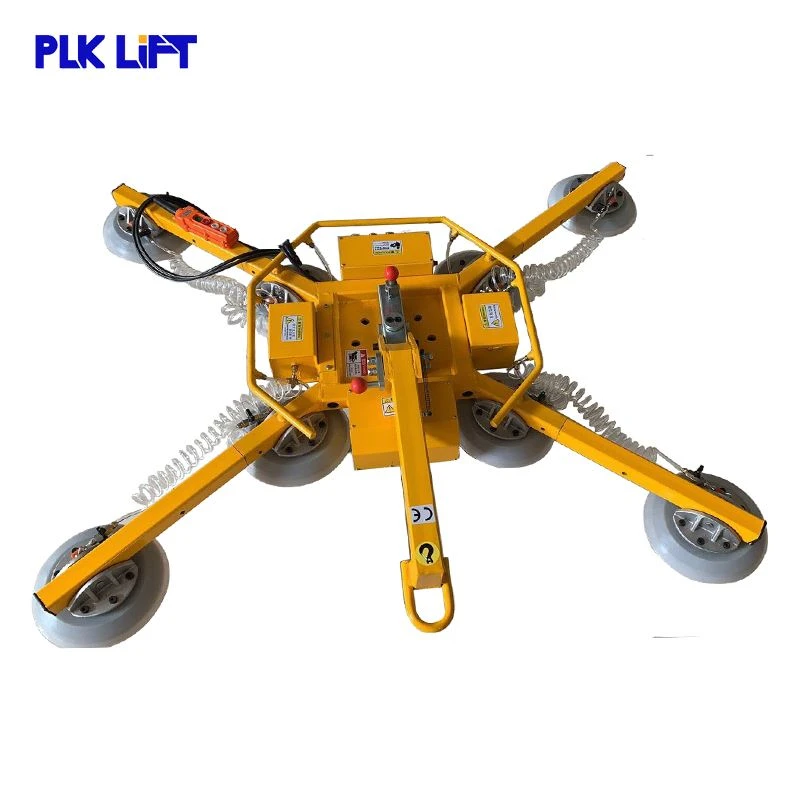

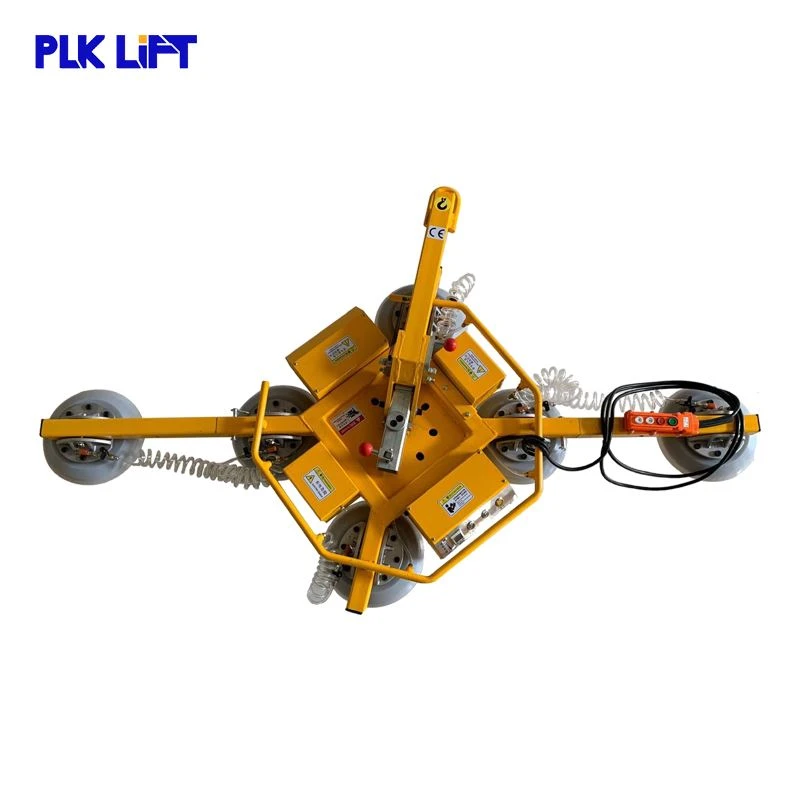

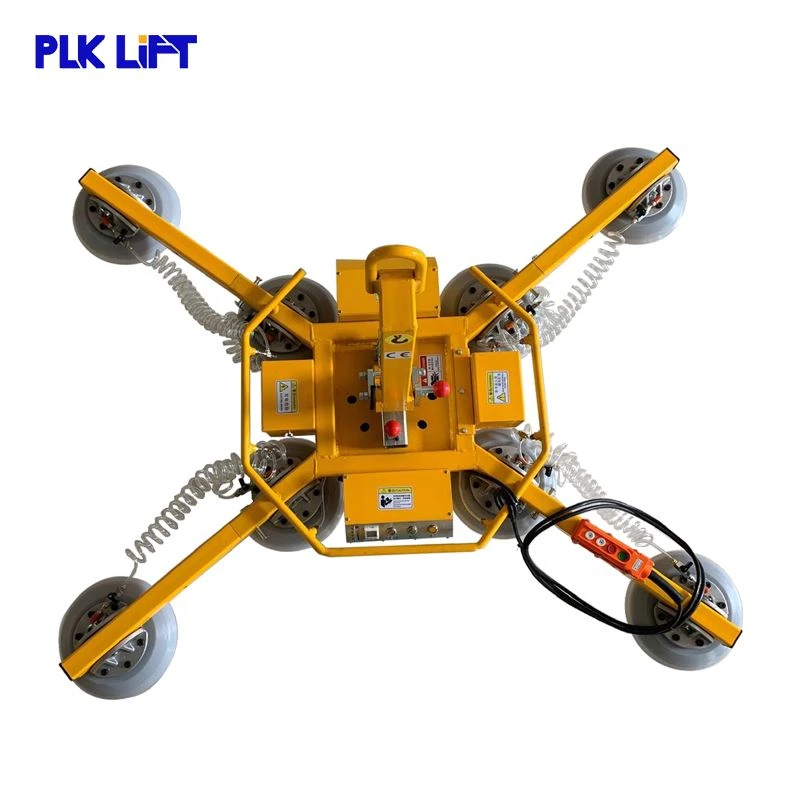

As producer and specialist in vacuum lifting and assembly solutions, we rely on good glass lifters. The different glass assembly cranes for glass plates and windows can quickly lift up and allow very precise positioning.
Produced with Germany quality we sell our machines worldwide. We also offer rentals in Germany of our glass assembly lift along with comprehensive service on request. Be a sales partner of us or buy directly.
Contact our experienced experts now for a non-binding consultation.
| Model | GL-SC-400X | GL-SC-600X | GL-SC-800X | GL-SC-1000X | GL-SC-1200X | |
| Lifting Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
| Cup Qty | / | 4 | 6 | 8 | 10 | 12 |
| Single Cup Size | mm | 300 | 300 | 300 | 300 | 300 |
| Single Cup Lifting Capacity | kg | 100 | 100 | 100 | 100 | 100 |
| Rotation | / | 360°manual rotate | ||||
| Tilting | / | 90° manual | ||||
| Volte | V | DC12 | ||||
| Charger | V | AC220/110 | ||||
| Weight | kg | 70 | 90 | 100 | 110 | 120 |
| Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 | 1900*1600*300 |
| Extension Bar Length | mm | 500 | ||||
| Control System | / | Integrated Control Cabinet and Wired Remote Control | ||||
| Package Size | mm | 1230*910*390 | ||||
| G.W | kg | 97 | 110 | 123 | 150 | 163 |
