Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of solar panel lifter in China. Please feel free to buy high quality solar panel lifter at competitive price from our factory. Contact us for more details.
Solar Panel Lifter
Solar Panel Lifter uses pneumatic pump to form vacuum. Due to atmospheric pressure difference between vacuum void and outside, target objects will be firmly pressed against suckers.

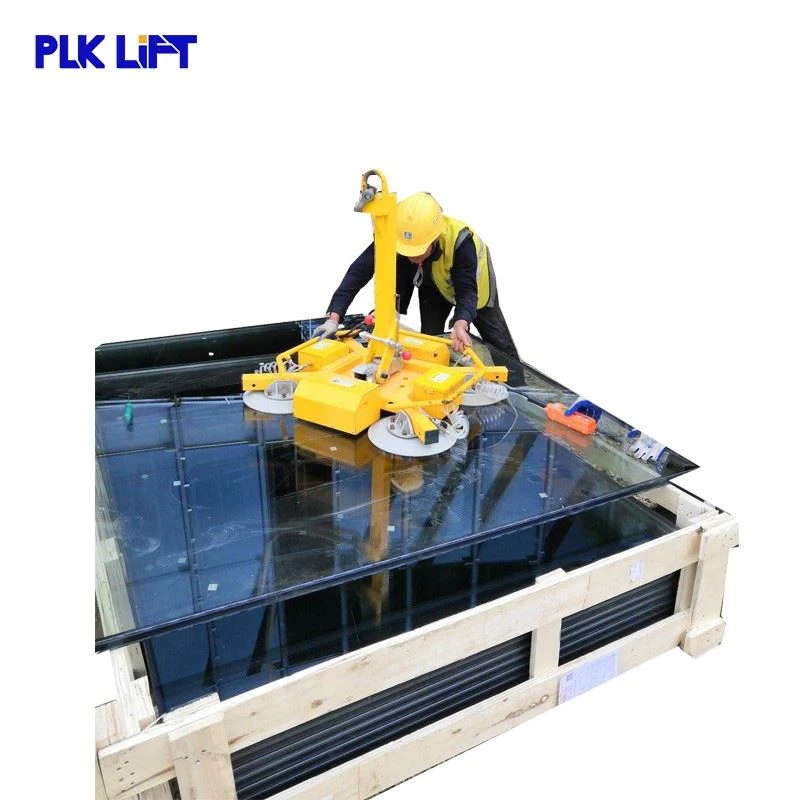

Solar panel lifts can be categorized into two types, portable one hoisted by cranes and trolley one that's self powered. Today in topic is the former one, see below pics.
Hot Tags: solar panel lifter, China, suppliers, factory, price, Mobile Glass Lifter, Glass Suction Lifter, Glass Vacuum Cup Lifter, Manual Glass Lifter, Glass Lifter Machine, Glass Suction Cup Lifter
|
Model |
GL-SC-400X |
GL-SC-600X |
GL-SC-800X |
GL-SC-1000X |
GL-SC-1200X |
|
|
Lifting Capacity |
kg |
400 |
600 |
800 |
1000 |
1200 |
|
Cup Qty |
/ |
4 |
6 |
8 |
10 |
12 |
|
Single Cup Size |
mm |
300 |
300 |
300 |
300 |
300 |
|
Single Cup Lifting Capacity |
kg |
100 |
100 |
100 |
100 |
100 |
|
Rotation |
/ |
360°manual rotate |
||||
|
Tilting |
/ |
90° manual |
||||
|
Volte |
V |
DC12 |
||||
|
Charger |
V |
AC220/110 |
||||
|
Weight |
kg |
70 |
90 |
100 |
110 |
120 |
|
Sucker Frame Size |
mm |
850*750*300 |
1800*900*300 |
1760*1460* 300 |
1900*1600* 300 |
1900*1600* 300 |
|
Extension Bar Length |
mm |
500 |
||||
|
Control System |
/ |
Integrated Control Cabinet and Wired Remote Control |
||||
|
Package Size |
mm |
1230*910*390 |
||||
|
G.W |
kg |
97 |
110 |
123 |
150 |
163 |
