Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of glass lifter robot in China. Please feel free to buy high quality glass lifter robot at competitive price from our factory. Contact us for more details.

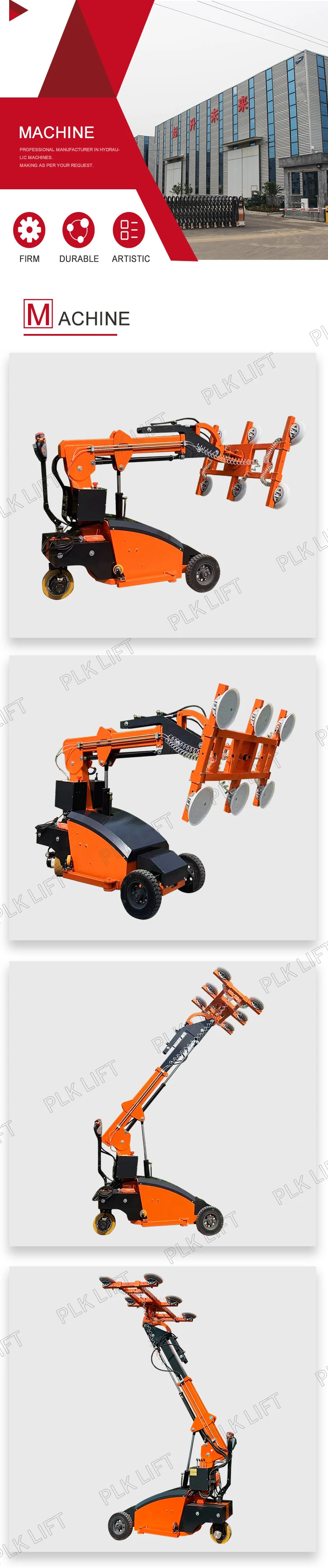

Glass Lifter Robot
Vacuum glass lifter robots are widely used for moving and installing glass, which greatly saves manpower and improves work efficiency.
The glass lifter robot has a load of 300 kg to 800 kg and a maximum lifting height of 5m. It can be handled flexibly. It can be both used in doors and outdoors.
The quality of the glass lifter robot is very good, we have exported a lot of equipment to the European, American and Asian markets, and have been well received by customers.
Hot Tags: glass lifter robot, China, suppliers, factory, price, Glass Lifter, Vacuum Lifter, Suction Caps, Glass Vacuum Lifter, Glass Lifter Robot
|
Model Type |
GL-LD-300 |
GL-LD-400 |
GL-LD-500 |
GL-LD-600 |
GL-LD-800 |
|
|
Load Capacity(arm retract/extend) |
300kg/150kg |
400kg/200kg |
500kg/250kg |
600kg/300kg |
800kg/400kg |
|
|
Lifting Height |
3500mm |
3500mm |
3700mm |
3700mm |
5000mm |
|
|
QTY of Suction Cap |
4pcs |
4pcs |
6pcs |
6pcs |
8pcs |
|
|
Rubber Suction Cap |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
|
|
Maintenance-free Battery |
2x12V/80AH |
2x12V/100AH |
2x12V/120AH |
2x12V/120AH |
2x12V/120AH |
|
|
Battery Charger |
Smart Charger |
Smart Charger |
Smart Charger |
Smart Charger |
Smart Charger |
|
|
Drive motor |
24V/1200W |
24V/600W |
24V/900W |
24V/900W |
24V/1500W |
|
|
Lifting Motor |
24V/2000W/5L |
24V/2000W/5L |
24V/2000W/5L |
24V/2000W/5L |
24V/2200W/12L |
|
|
Driving Wheel |
Ø250x80mm |
Ø250x80mm |
Ø300x100mm |
Ø300x100mm |
Ø300x125mm |
|
|
N.W/G.W |
1100/1150kg |
1280/1330kg |
1300/1350kg |
1400/1450kg |
1600/1760kg |
|
|
Package Size |
2560*1030*1700mm |
2690*1150*1900mm |
2840*1130*1900mm |
|||
|
Movement |
Automatic (4kinds) |
1. Pad frame vertical up/down 180°automatic 2. Boom in/out 610/760mm automatic 3. Powered arm up/down automatic 4. Lateral side shift 100mm automatic |
||||
|
Manual (2kinds) |
5. Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right) 6. Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°) |
|||||
