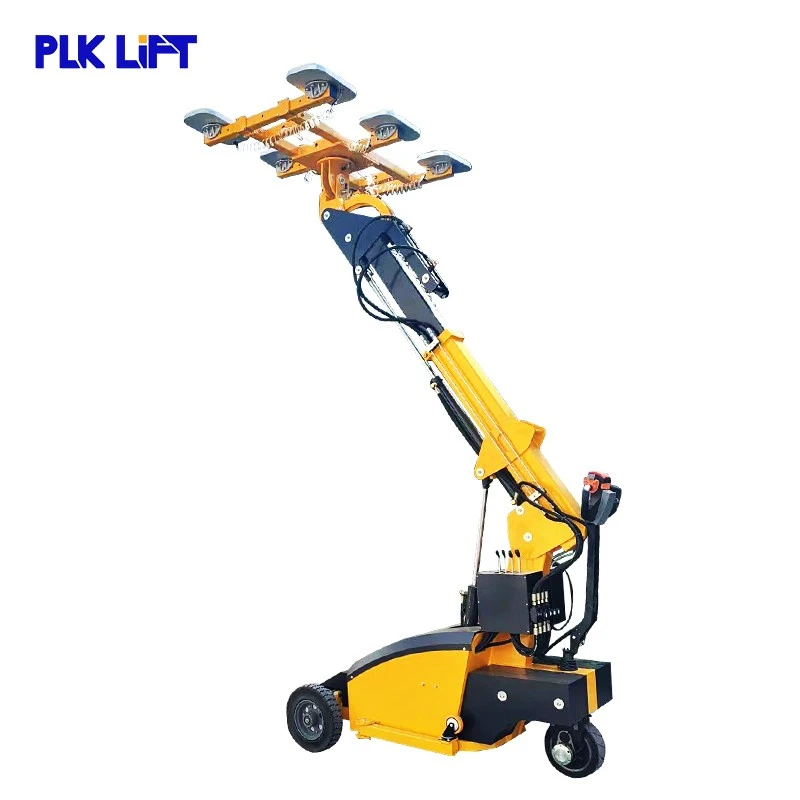

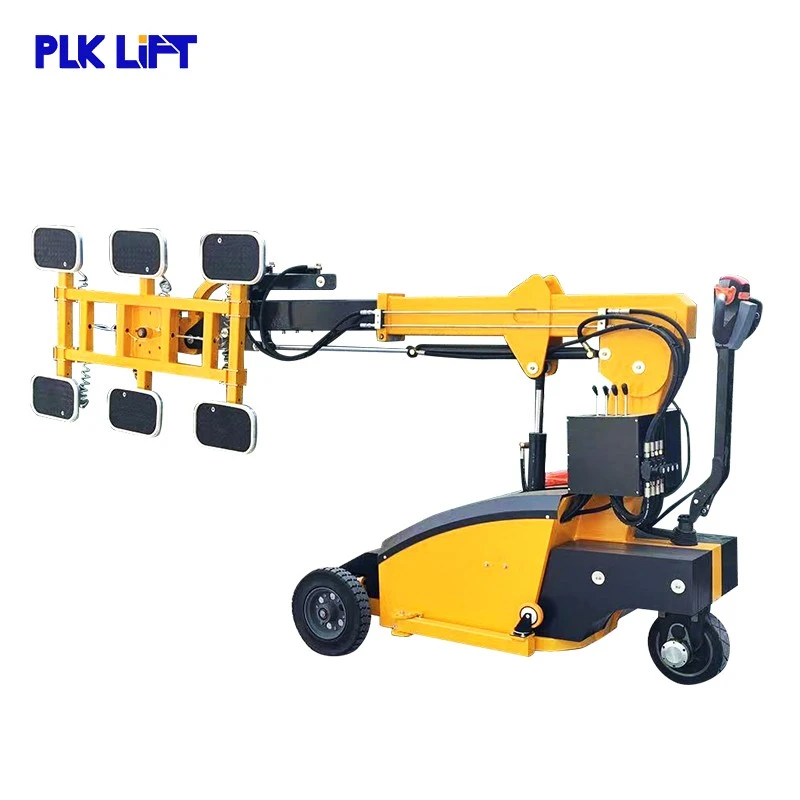

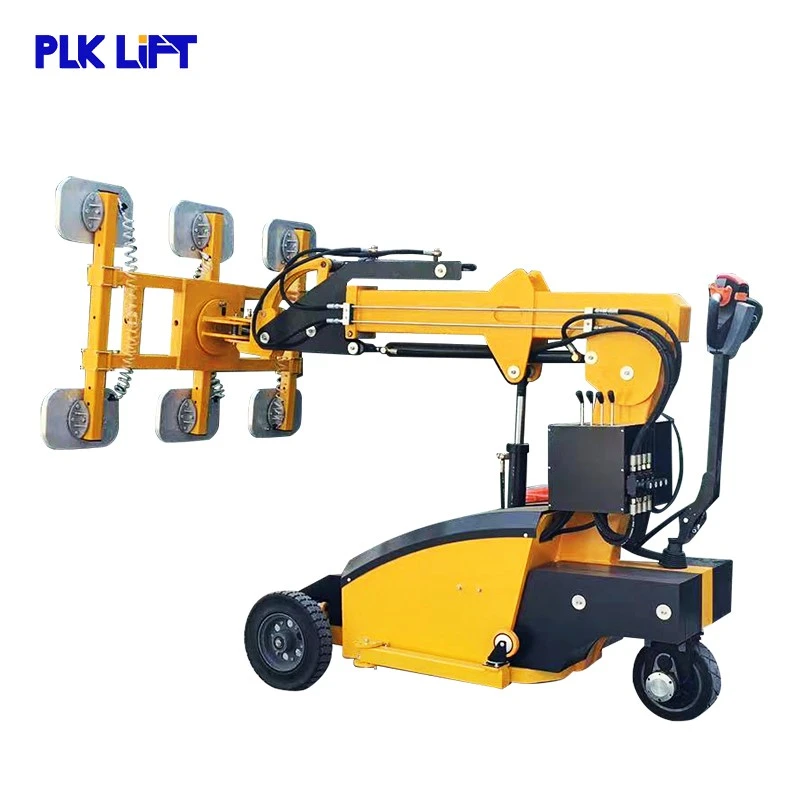

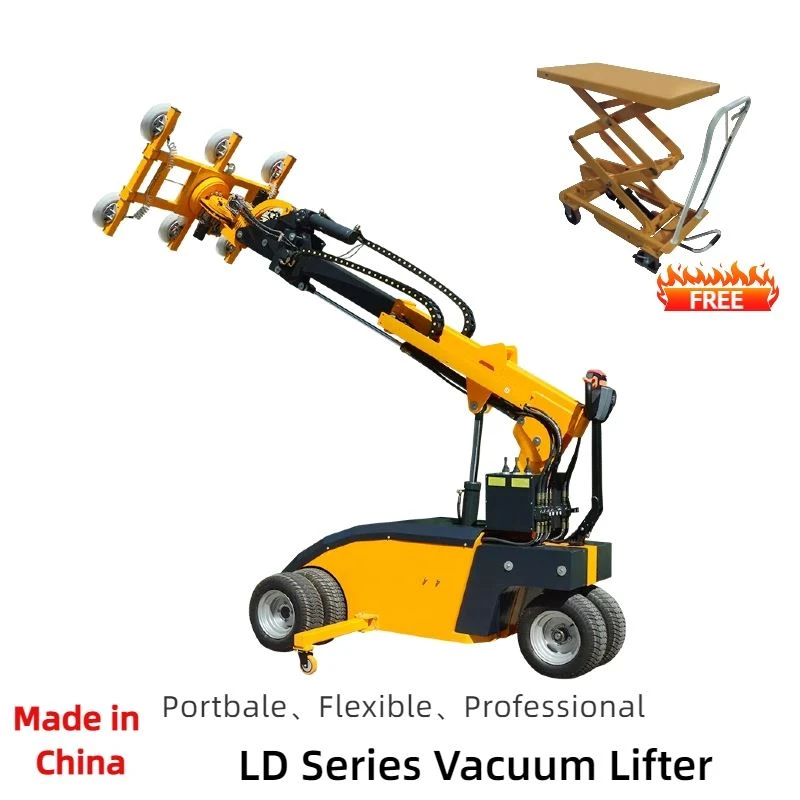

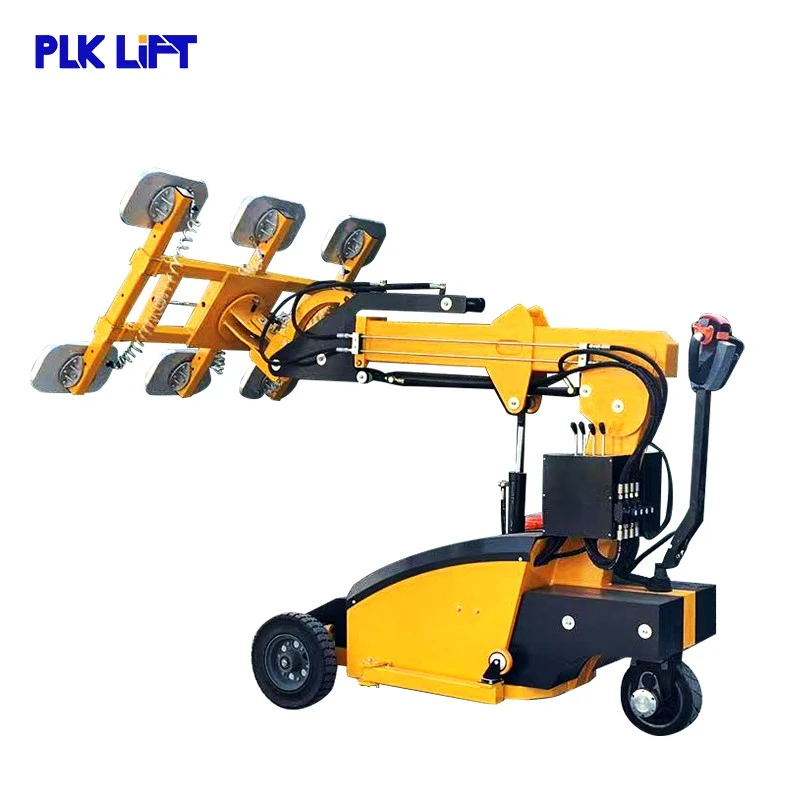

LD Series Vacuum Lifter with Sponge Suction Cups
Whether you are working on a construction site, manufacturing facility or glass installation project, our glass vacuum lifts are the ideal solution for increasing efficiency and reducing the physical stress associated with lifting heavy glass panels. It is a versatile tool that can be used in a variety of applications, including window installation, glass fabrication, and construction projects.
Hot Tags: glass vacuum lift with sponge suction cups, China, suppliers, factory, price, Glass Lifter Manual, Electric Vacuum Glass Lifter, Vacuum Lifter Wood, Glass Lifting Equipment, Glass Suction Lifter, Mobile Glass Lifter
| Model Type | GL-LD-300 | GL-LD-400 | GL-LD-500 | GL-LD-600 | GL-LD-800 | |
| Load Capacity | 300kg (arm retract) | 400kg (retract) | 500kg (retract) | 600kg (retract) | 800kg (retract) | |
| 150kg (extend) | 200kg (extend) | 250kg (extend) | 300kg (extend) | 400kg (extend) | ||
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 5000mm | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| Movement | Automatic (4kinds) | 1. Pad frame vertical up/down 180°automatic | ||||
| 2. Boom in/out 610/760mm automatic | ||||||
| 3. Powered arm up/down automatic | ||||||
| 4. Lateral side shift 100mm automatic | ||||||
| Manual (2kinds) | 5. Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right) | |||||
| 6. Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°) | ||||||
| Usages | Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with different materials of vacuum suction caps. | |||||
