Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of self propelled driveable order picking lift in China. Please feel free to buy high quality self propelled driveable order picking lift at competitive price from our factory. Contact us for more details.

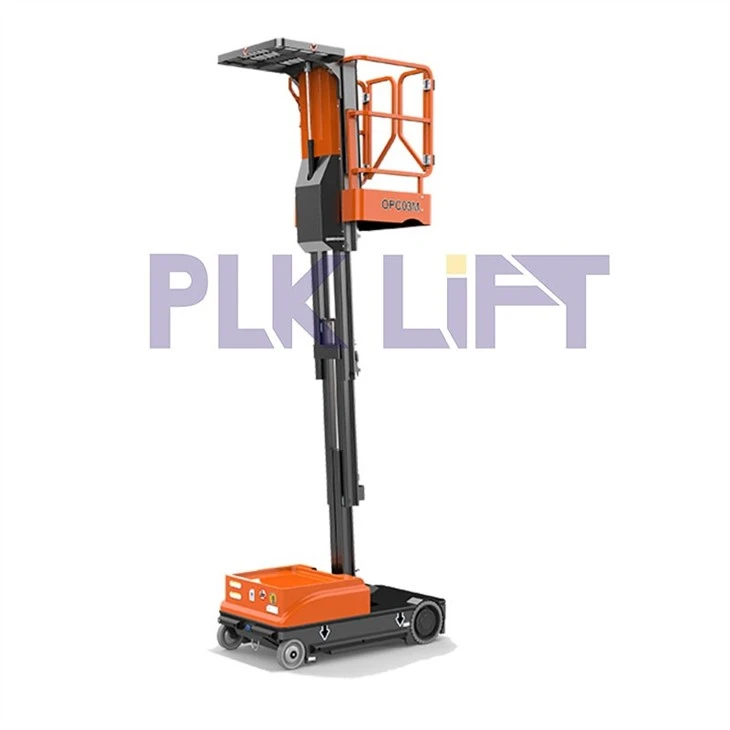

Self Propelled Driveable Order Picking Lift is a good device for warehouse goods picking from shelf.
Lifting height 3050mm
See details specification as below:
Model Type | OPC03M | |
Max.Platform Height | mm | 3050 |
Max. Working Height | mm | 4880 |
Max. Machine Height | mm | 1460 |
Ground Clearance (Pothole Protection) | mm | 15 |
Max.Ground Clearance | mm | 50 |
Platform Size | mm | 495X690 |
Platform Entry Height | 360 | |
Max.Drive Speed (platform Stowed) | km/h | 4.0km/h |
Max.Drive Speed (platform Elevated) | km/h | 0.8km/h |
Min.turning Radius | mm | 0.23 |
Max.Climbing Capacity | % | 25% |
Rear Driving & Steer Wheels | mm | 230x80mm |
Non-Marking Caster Wheels | in | 8 in |
Driving System | 4Brush Direct Electric (Planetary Gear) | |
Battery | v/Ah | 2X12V/100Ah |
Battery Charger | v/A | 24V/30A |
Overall Width | mm | 830 |
Overall Width(without bumper) | mm | 750 |
Platform Capacity | kg | 160 |
Carry Deck Capacity | kg | 113 |
Material Tray Capacity | kg | 113 |
Overall Net Weight | kg | 560 |
