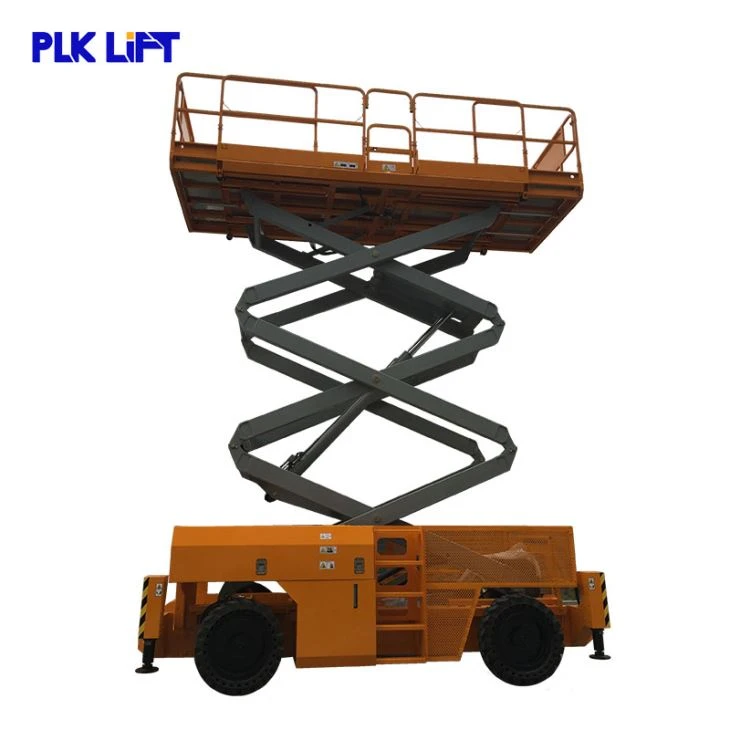

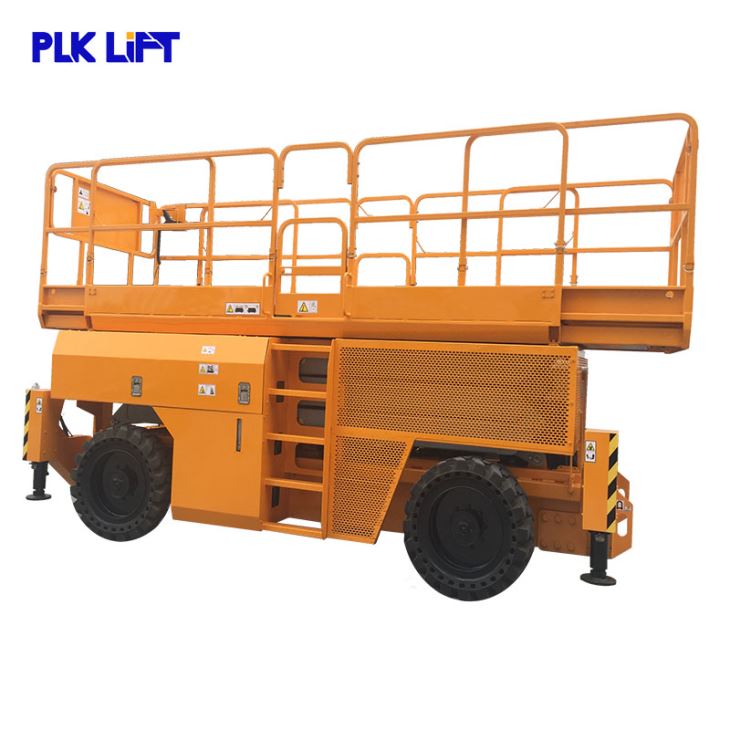

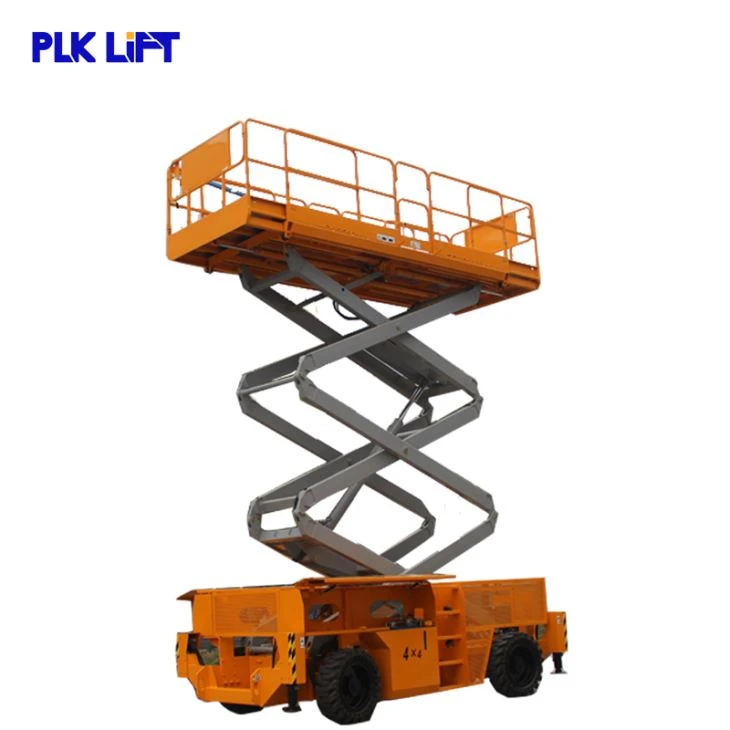

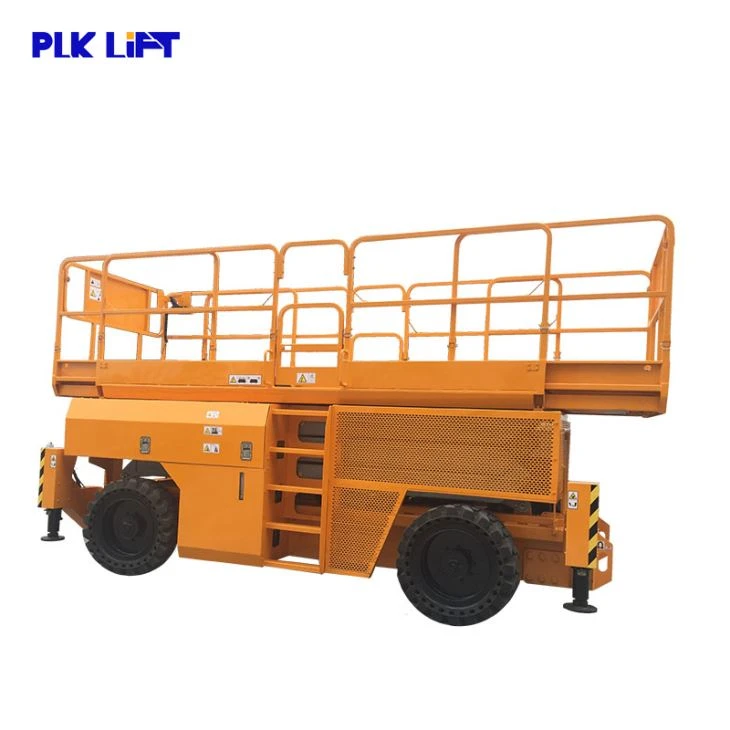

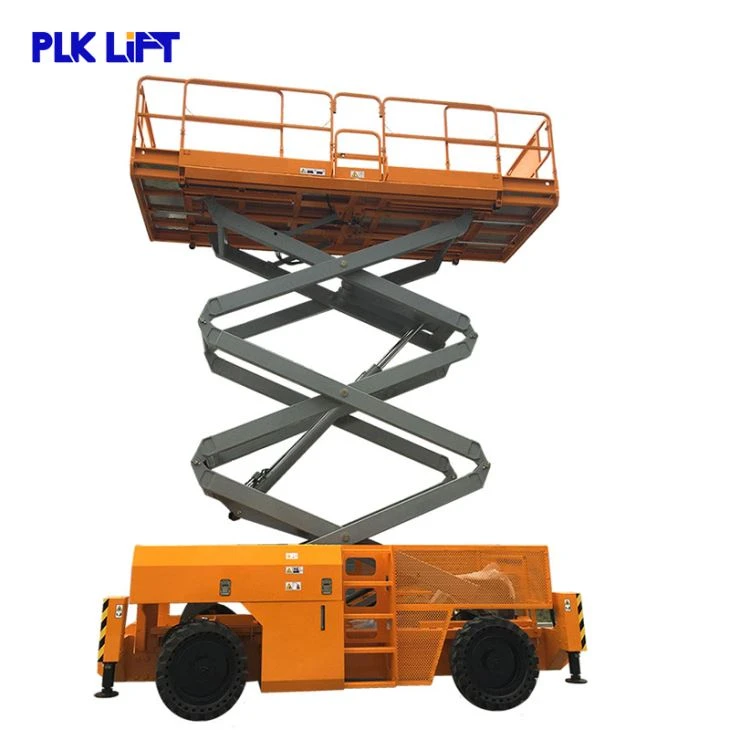

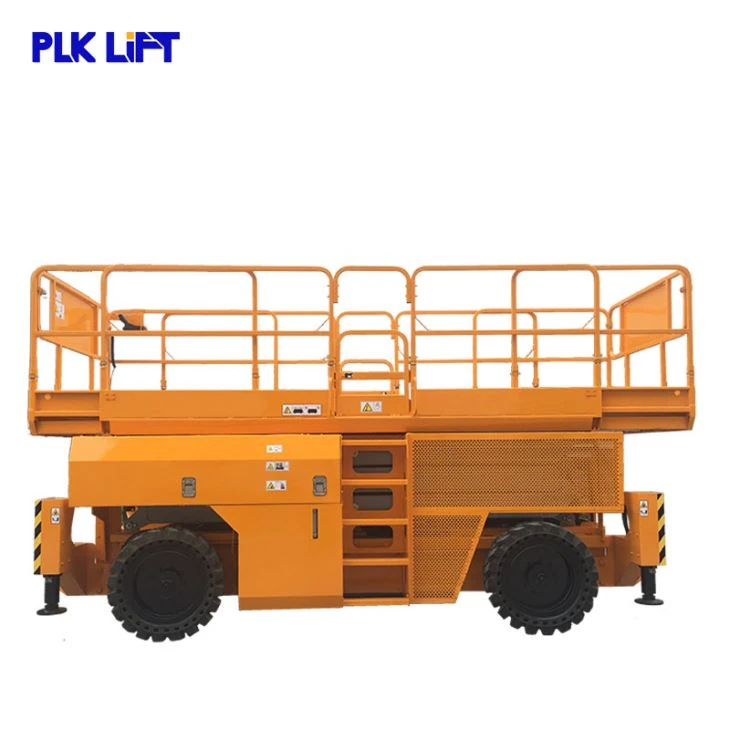

Scissor Patform
When the going gets tough, turn to PLK LIFT's full line of compact diesel-powered rough terrain scissor lifts. Equipped with powerful 4-wheel drive, these scissor lifts have superb terrain capabilities. With large platform working areas and high lifting capacities, it has compact rough terrain scissor lifts easily take on the heavy tasks. A bi-energy power source option is available, offering clean and quiet battery power for the ultimate jobsite flexibility.
Hot Tags: scissor patform, China, suppliers, factory, price, Scissor Lift With Extendable Platform, Compact Scissor Lift, Electric Self Propelled Scissor Lift, Electric Scissor Lift For Sale, Small Scissor Lift, Mobile Scissor Lift Platform
|
Model Type No. |
SP10D |
SP13D |
SP16D |
|
Working Height Maximum |
12 m |
15 m |
18 m |
|
Platform Height Maximum |
10 m |
13 m |
16 m |
|
Lift capacity |
1150 kg |
680kg |
680 kg |
|
Lift capacity (extension deck) |
230 kg |
230kg |
230 kg |
|
Length Ⓓ |
4.2/4.81m |
4.2m /4.81m |
4.2/4.81 m |
|
Width Ⓔ |
2.28 m |
2.28m |
2.28 m |
|
Height(stowed)Ⓒ |
2.81 m |
3.03m |
3.25 m |
|
Wheel baseF |
2.84m |
2.84m |
2.84 m |
|
Ground clearance-centerⒼ |
0.23 m |
0.23m |
0.23 m |
|
Platform measurement Ⓑ*Ⓐ |
3.95*1.83 m |
3.95×1.83 m |
3.95*1.83 m |
|
Extension deck measurement |
1.22m+1.52 m |
1.22m + 1.52 m |
1.22m+1.52 m |
|
Turning radius inside /outside |
2.78m /4.95 m |
2.78m / 4.95 m |
2.78m / 4.95 m |
|
Travel speed(stowed) |
6.3km/h |
6.3km/h |
6.3km/h |
|
Travel speed(raised ) |
1.1km/h |
1.1km/h |
1.1 km/h |
|
Grade ability |
50% |
50% |
0.45 |
|
Sold tire |
33×12-20 |
33×12-20 |
33×12-20 |
|
weight |
6850kg |
7350 kg |
8850kg |
|
Fuel tank volume |
115L |
115L |
115L |
|
Hydraulic tank volume |
170L |
170L |
170L |
|
Drive mode |
4*4*2 |
4*4*2 |
4*4*2 |
|
Engine |
Yanmar |
Yanmar |
Yanmar |
