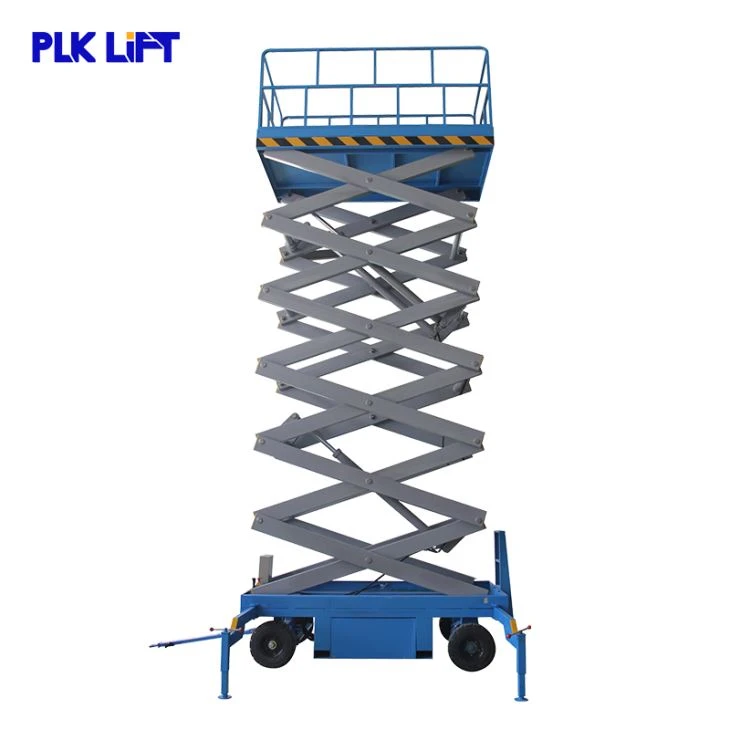

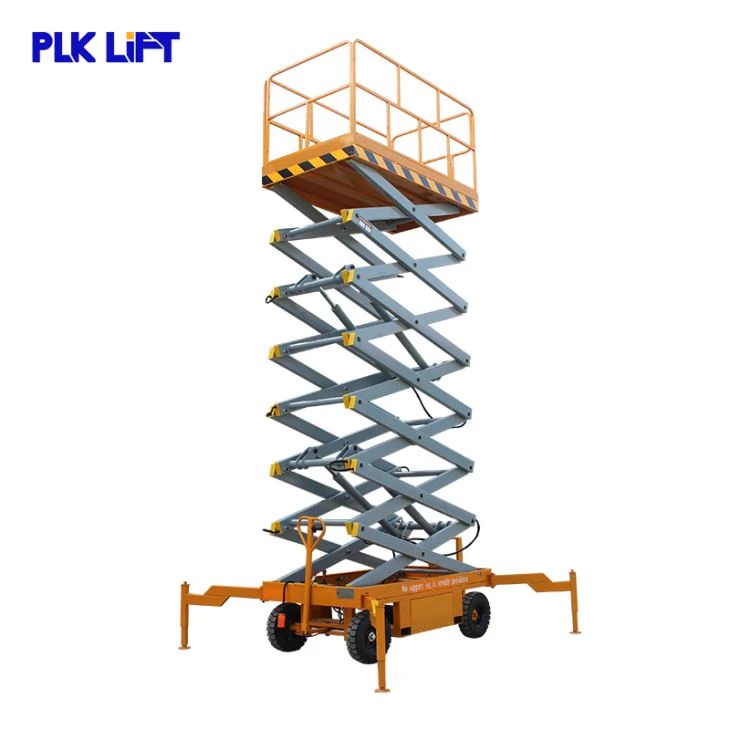

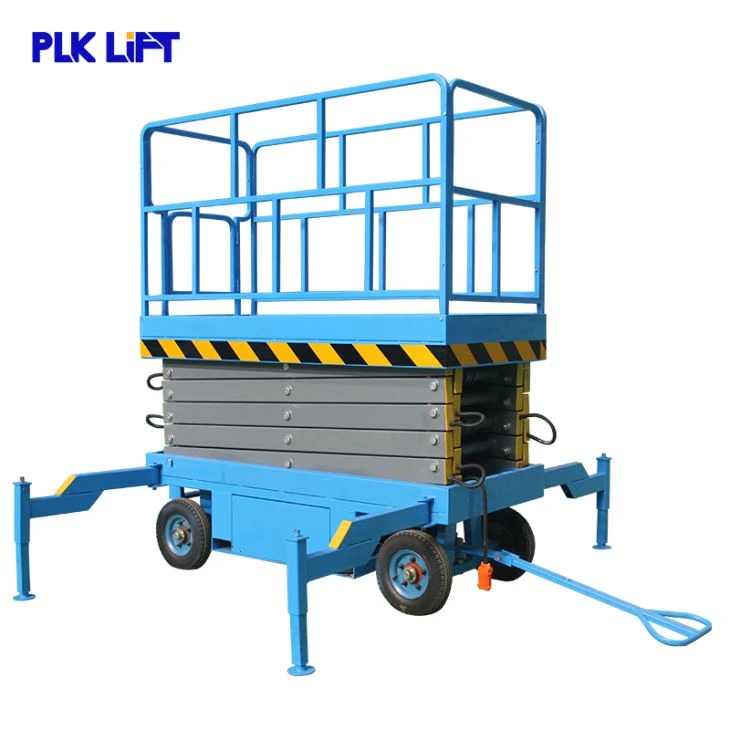

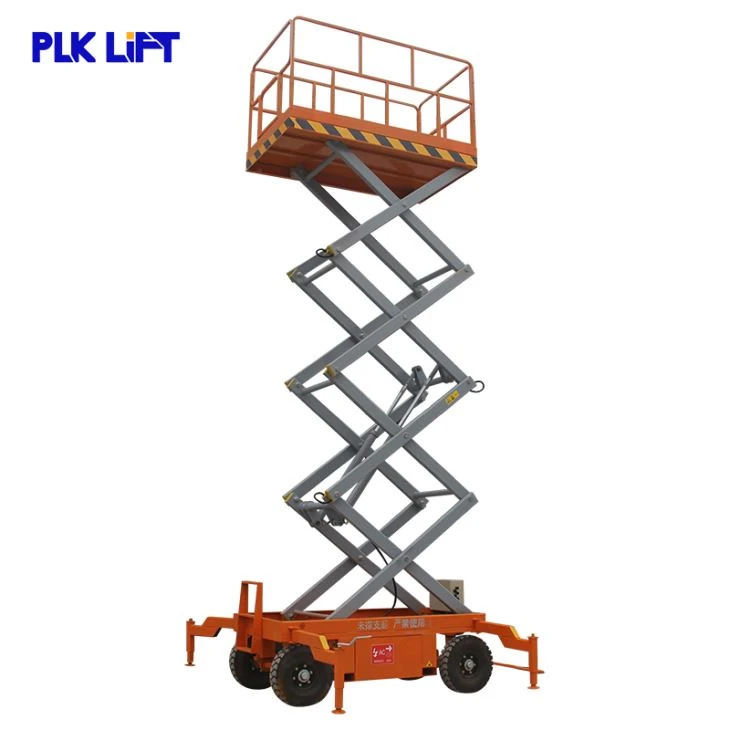

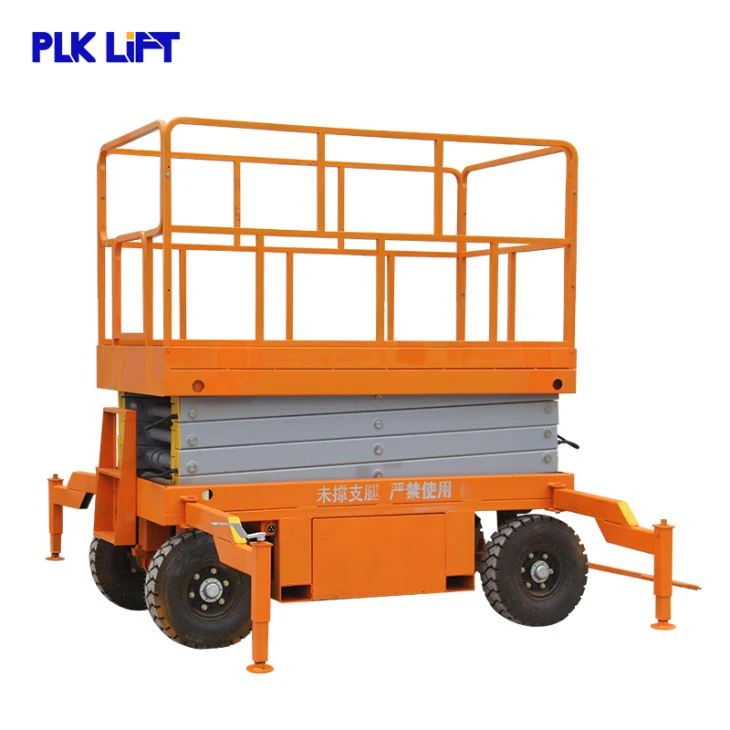

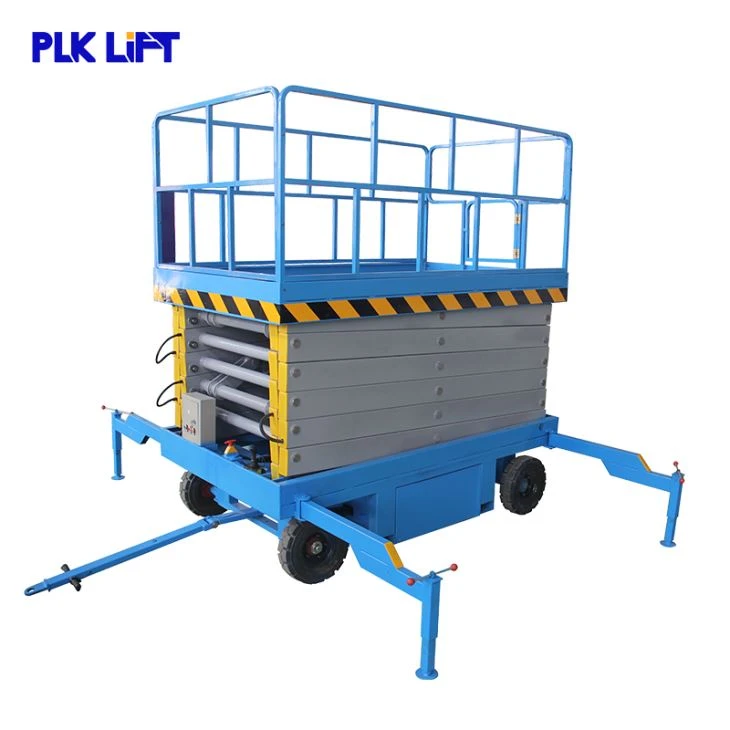

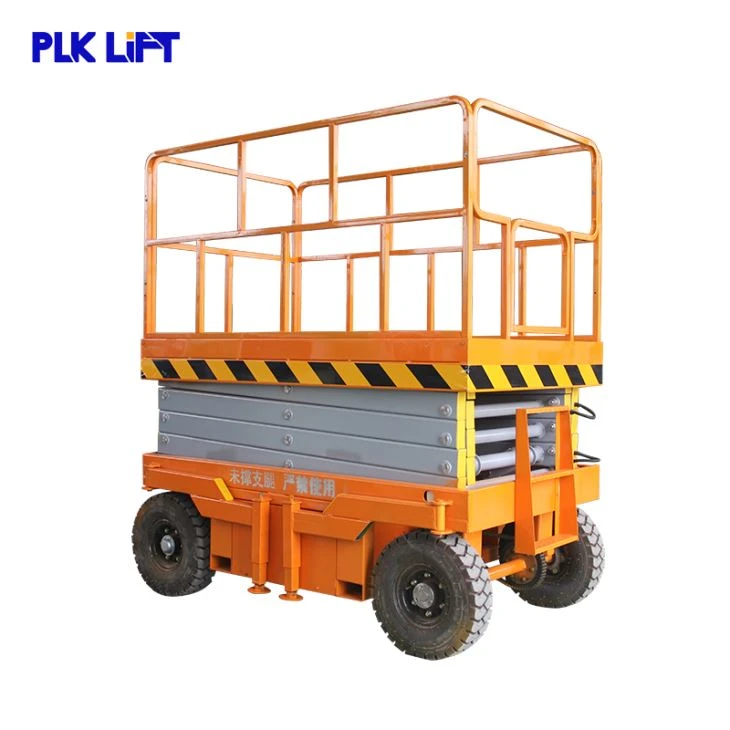

Mobile Scissor Lift Table
It moving by man manually or DC power.Lifting by AC or DC power.Simple structure which is easy to maintain.

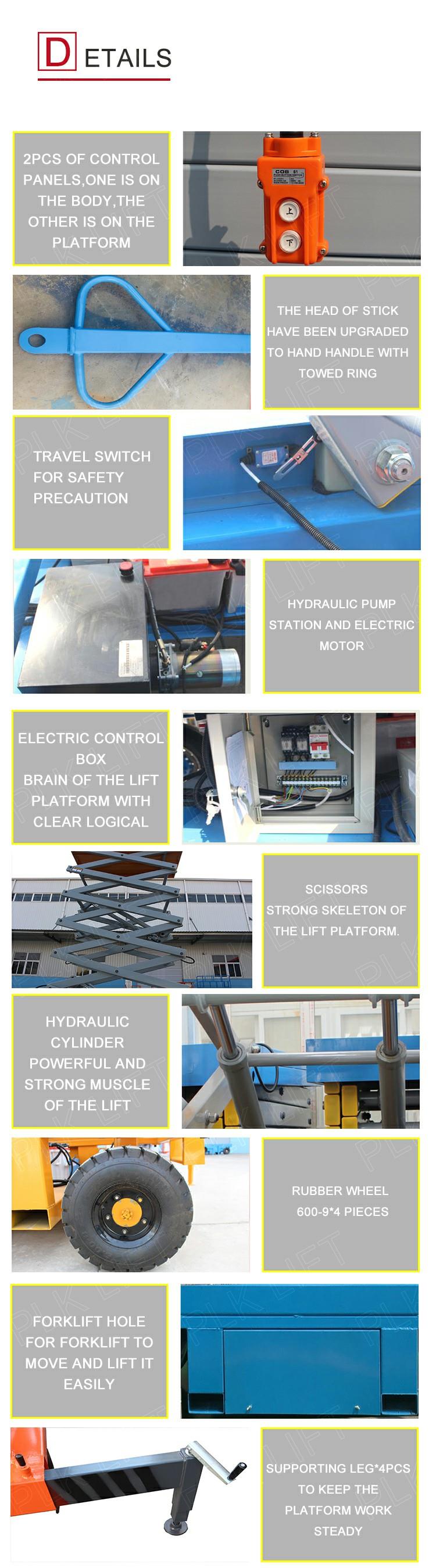

There is many safety configuration, for example, the explosion-proof valves,overload protective system ,supporting legs is equipped.

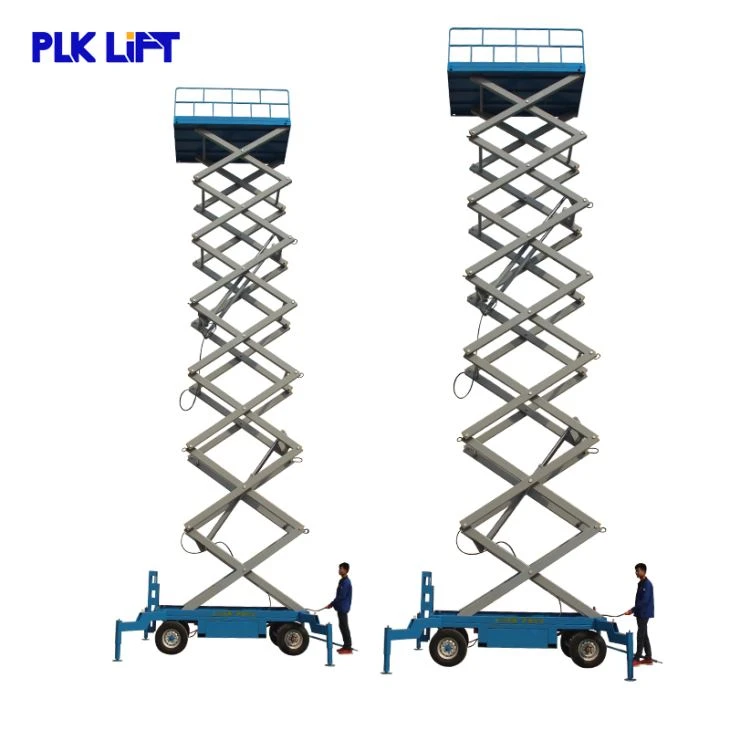

6-18m max platform height range is available with 500kg capacity.
Hot Tags: mobile scissor lift table, China, suppliers, factory, price, Mobile Scissor Lift Table, Scissor Lift Platform, Mobile Work Platform, Electric Scissor Lift, Aerial Lift Truck, Mobile Scissor Lift
Model No. | Table Size | Platform Height (m) | Working Height (m) | Retract Height (m) | Voltage (V) | Overall size | N.W.(kg) |
500KG Loading Capacity | |||||||
SJY0506 | 2100*830 | 6 | 8 | 1.2 | 1 or 3phase | 2250*950*1200 | 880 |
SJY0507 | 2100*830 | 7 | 9 | 1.28 | 1 or 3phase | 2250*950*1280 | 970 |
SJY0508 | 2100*930 | 8 | 10 | 1.38 | 1 or 3phase | 2250*1060*1380 | 1050 |
SJY0509 | 2100*930 | 9 | 11 | 1.5 | 1 or 3phase | 2250*1060*1500 | 1165 |
SJY0510 | 2100*1230 | 10 | 12 | 1.53 | 1 or 3phase | 2250*1350*1530 | 1360 |
SJY0511 | 2100*1230 | 11 | 13 | 1.65 | 1 or 3phase | 2250*1350*1650 | 1400 |
SJY0512 | 2550*1530 | 12 | 14 | 1.75 | 1 or 3phase | 2796*1670*1750 | 2260 |
SJY0514 | 2812*1530 | 14 | 16 | 1.81 | 1 or 3phase | 3067*1730*1810 | 2400 |
SJY0516 | 2812*1600 | 16 | 18 | 2.08 | 1 or 3phase | 3067*1800*2080 | 3500 |
SJY0518 | 3070*1600 | 18 | 20 | 2.08 | 1 or 3phase | 3321*1810*2080 | 3900 |
1000KG Loading Capacity | |||||||
SJY1004 | 2100*1200 | 4 | 6 | 1.18 | 3phase | 2250*1350*1180 | 1250 |
SJY1006 | 2100*1200 | 6 | 8 | 1.3 | 3phase | 2200*1350*1300 | 1400 |
SJY1008 | 2100*1200 | 8 | 10 | 1.42 | 3phase | 2200*1350*1420 | 1585 |
SJY1010 | 2100*1200 | 10 | 12 | 1.53 | 3phase | 2200*1350*1530 | 1700 |
SJY1012 | 2550*1530 | 12 | 14 | 1.75 | 3phase | 2796*1670*1750 | 2560 |
SJY1014 | 2812*1530 | 14 | 16 | 1.81 | 3phase | 3067*1750*1810 | 2765 |
SJY1506 | 2100*1530 | 6 | 8 | 1.53 | 3phase | 2250*1750*1530 | 1780 |
SJY1508 | 2100*1530 | 8 | 10 | 1.69 | 3phase | 2250*1750*1690 | 2070 |
SJY1510 | 2100*1530 | 10 | 12 | 1.85 | 3phase | 2250*1750*1850 | 2250 |
SJY1512 | 2550*1530 | 12 | 14 | 1.85 | 3phase | 2250*1762*1850 | 2900 |
SJY1514 | 2816*1600 | 14 | 16 | 1.96 | 3phase | 3045*1852*1960 | 3400 |
2000KG Loading Capacity | |||||||
SJY2006 | 2100*1530 | 6 | 8 | 1.53 | 3phase | 2250*1750*1530 | 1780 |
SJY2008 | 2100*1530 | 8 | 10 | 1.69 | 3phase | 2250*1750*1690 | 2070 |
SJY2010 | 2100*1530 | 10 | 12 | 1.85 | 3phase | 2250*1750*1850 | 2250 |
SJY2012 | 2550*1600 | 12 | 14 | 1.954 | 3phase | 2796*1852*1954 | 3200 |
SJY2014 | 2816*1600 | 14 | 16 | 2.23 | 3phase | 3067*1852*2230 | 3900 |
