Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of platform scissor lift in China. Please feel free to buy high quality platform scissor lift at competitive price from our factory. Contact us for more details.

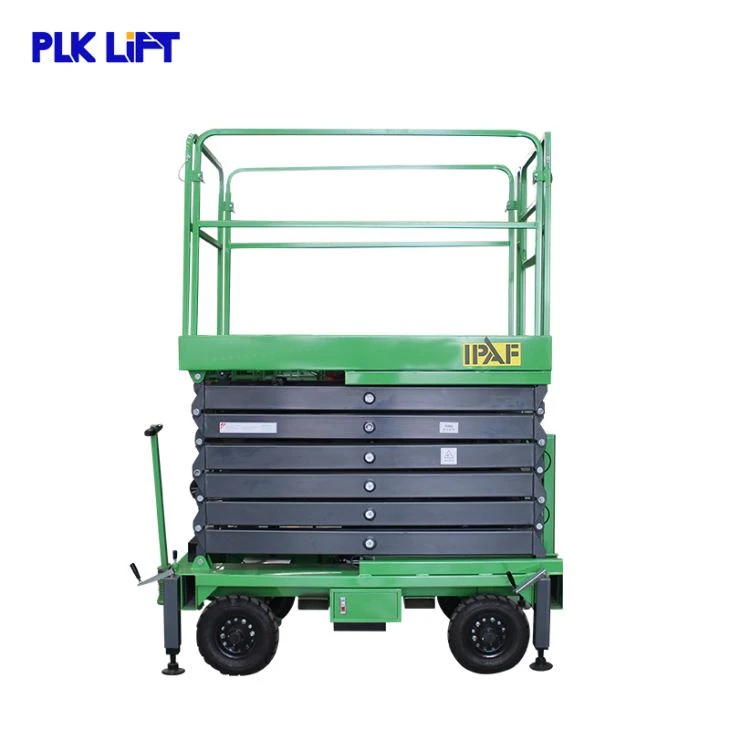

Platform Scissor Lift
It is one of the most widely used aerial work platform for construction site, building maintenance, factory daily work, and some other personal uses.
It can reach maximum 18 meters high with 500kg load capacity, enough for one man or two men working on the platform. Normally 8m 10m 12m scissor lift is used very often among customers. The maximum load capacity can be up to 2000kg, suitable for handling heavy weight materials.
We have different options for customers. This platform scissor lift can be operated lifting by AC or DC or Diesel power. For its moving, you can move it manually which is much economic type, or with battery you can move it easily much labor-saving with a small extra charge.
|
Model No. |
Table Size |
Platform Height (m) |
Working Height(m) |
Retract Height(m) |
Voltage (V) |
Overall size |
N.W.(kg) |
|
500KG Loading Capacity |
|||||||
|
SJY0506 |
2100*830 |
6 |
8 |
1.2 |
1 or 3phase |
2250*950*1200 |
880 |
|
SJY0507 |
2100*830 |
7 |
9 |
1.28 |
1 or 3phase |
2250*950*1280 |
970 |
|
SJY0508 |
2100*930 |
8 |
10 |
1.38 |
1 or 3phase |
2250*1060*1380 |
1050 |
|
SJY0509 |
2100*930 |
9 |
11 |
1.5 |
1 or 3phase |
2250*1060*1500 |
1165 |
|
SJY0510 |
2100*1230 |
10 |
12 |
1.53 |
1 or 3phase |
2250*1350*1530 |
1360 |
|
SJY0511 |
2100*1230 |
11 |
13 |
1.65 |
1 or 3phase |
2250*1350*1650 |
1400 |
|
SJY0512 |
2550*1530 |
12 |
14 |
1.75 |
1 or 3phase |
2796*1670*1750 |
2260 |
|
SJY0514 |
2812*1530 |
14 |
16 |
1.81 |
1 or 3phase |
3067*1730*1810 |
2400 |
|
SJY0516 |
2812*1600 |
16 |
18 |
2.08 |
1 or 3phase |
3067*1800*2080 |
3500 |
|
SJY0518 |
3070*1600 |
18 |
20 |
2.08 |
1 or 3phase |
3321*1810*2080 |
3900 |
|
1000KG Loading Capacity |
|||||||
|
SJY1004 |
2100*1200 |
4 |
6 |
1.18 |
3phase |
2250*1350*1180 |
1250 |
|
SJY1006 |
2100*1200 |
6 |
8 |
1.3 |
3phase |
2200*1350*1300 |
1400 |
|
SJY1008 |
2100*1200 |
8 |
10 |
1.42 |
3phase |
2200*1350*1420 |
1585 |
|
SJY1010 |
2100*1200 |
10 |
12 |
1.53 |
3phase |
2200*1350*1530 |
1700 |
|
SJY1012 |
2550*1530 |
12 |
14 |
1.75 |
3phase |
2796*1670*1750 |
2560 |
|
SJY1014 |
2812*1530 |
14 |
16 |
1.81 |
3phase |
3067*1750*1810 |
2765 |
|
1500KG Loading Capacity |
|||||||
|
SJY1506 |
2100*1530 |
6 |
8 |
1.53 |
3phase |
2250*1750*1530 |
1780 |
|
SJY1508 |
2100*1530 |
8 |
10 |
1.69 |
3phase |
2250*1750*1690 |
2070 |
|
SJY1510 |
2100*1530 |
10 |
12 |
1.85 |
3phase |
2250*1750*1850 |
2250 |
|
SJY1512 |
2550*1530 |
12 |
14 |
1.85 |
3phase |
2250*1762*1850 |
2900 |
|
SJY1514 |
2816*1600 |
14 |
16 |
1.96 |
3phase |
3045*1852*1960 |
3400 |
|
2000KG Loading Capacity |
|||||||
|
SJY2006 |
2100*1530 |
6 |
8 |
1.53 |
3phase |
2250*1750*1530 |
1780 |
|
SJY2008 |
2100*1530 |
8 |
10 |
1.69 |
3phase |
2250*1750*1690 |
2070 |
|
SJY2010 |
2100*1530 |
10 |
12 |
1.85 |
3phase |
2250*1750*1850 |
2250 |
|
SJY2012 |
2550*1600 |
12 |
14 |
1.954 |
3phase |
2796*1852*1954 |
3200 |
|
SJY2014 |
2816*1600 |
14 |
16 |
2.23 |
3phase |
3067*1852*2230 |
3900 |
