Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of mini electric scissor lift in China. Please feel free to buy high quality mini electric scissor lift at competitive price from our factory. Contact us for more details.

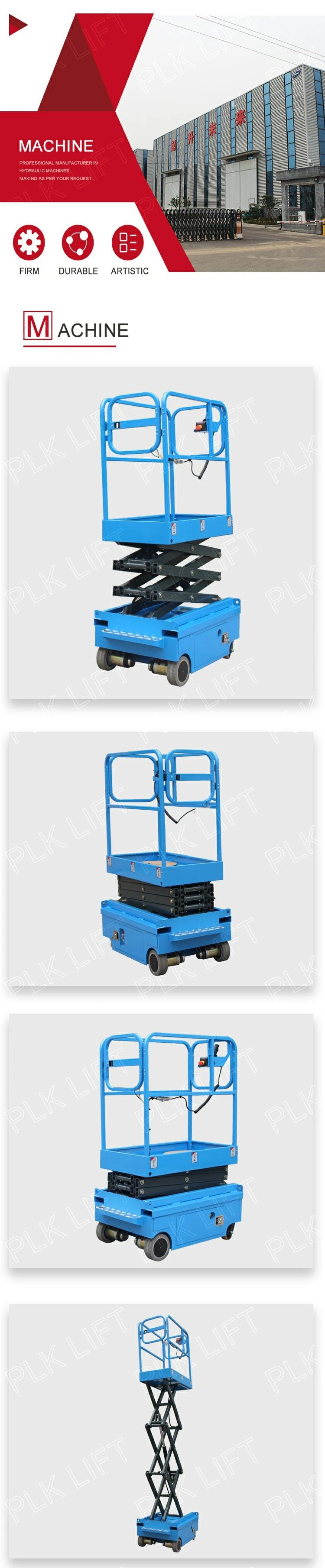

Mini Electric Scissor Lift
Features:
1. High working capacity, easily pushed around, most spacious platforms for several people to work.
2. High strength steel structures smoothly lift up and drop down, easily operated.
3. Moving method: 4 wheel and 2wheel types are optional, it can be pneumatic rubber tires, solid rubber tires or polyurethane tires.
4. Power sources: local power available at the working sites(110V,220V,380V,415V),diesel engines and generators
5. Lifting height: 3m,3.9m hydraulic lift
Hot Tags: mini electric scissor lift, China, suppliers, factory, price, PorTable Man Lift, Small Electric Scissor Lift, Small Scissors Lift
Model Type | GTJZ3.0 | GTJZ3.9 |
Max. Platform Height (m) | 3 | 3.9 |
Max. Working Height (m) | 5 | 5.9 |
Lift Rated Capacity (kg) | 300 | |
Ground Clearance (mm) | 60 | |
Platform Size (mm) | 1170*600 | |
Wheelbase (mm) | 990 | |
Min. turning radius (mm) | 1200 | |
Max. Drive peed(Platform Lifted) | 4 | |
Max. Drive Speed(Platform down) | 0.8km/h | |
Lifting/falling speed (SEC) | 20/30 | |
Max. Travel Grade (%) | 10-15 | |
Drive motors (V/KW) | 2×24/0.3 | |
Lifting motor (V/KW) | 24/0.8 | |
Battery (V/AH) | 2×12/ 80 | |
Charger (V/A) | 24/15A | |
Overall Length(mm) | 1180 | |
Overall Width (mm) | 760 | |
Overall Height | 1830 | 1930 |
Overall Net Weight | 490 | 600 |
