Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of telescopic vertical column aerial man lift in China. Please feel free to buy high quality telescopic vertical column aerial man lift at competitive price from our factory. Contact us for more details.
You need to go higher. Work faster. Do more. Check out the lift equipment from PLK that will take you to new heights, helping you conquer those challenges with confidence.

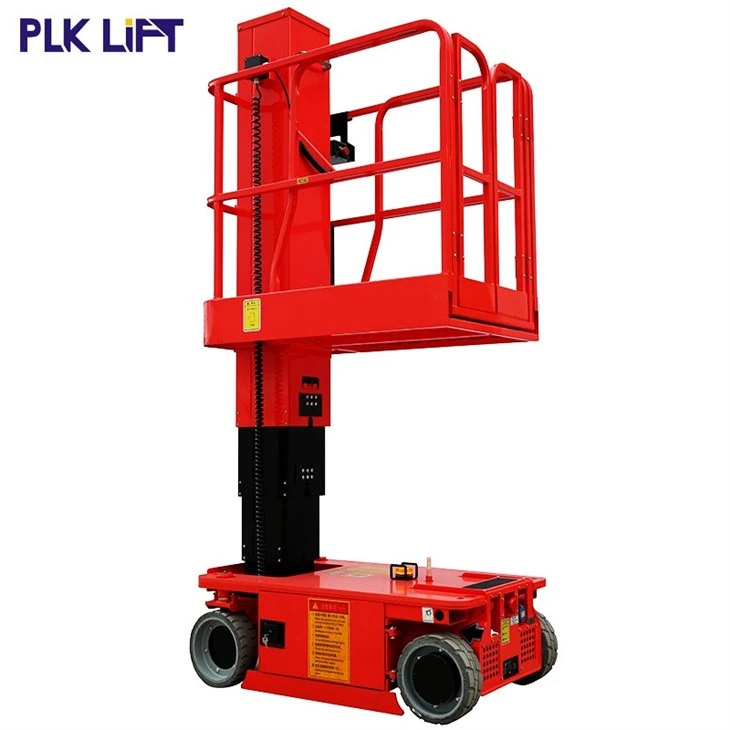

PLK aerial work platform telescopic column man lift can help you reach tasks at height with enhanced safety and greater productivity, working height from 5.6m to 8m, more stable than a scissor lift and aluminum aerial work lift.
|
Model |
GTWY-T5.6 |
GTWY-T6.8 |
GTWY-T8 |
|
Max. Working Height |
5.6m |
6.8m |
8m |
|
Max. Platform Height |
3.6m |
4.8m |
6m |
|
Loading Capacity |
227kg |
227kg |
159kg |
|
Occupants |
(indoor)2/(outdoor)1 |
(indoor)2/(outdoor)1 |
(indoor)2/(outdoor)1 |
|
Overall Length |
1.36m |
1.36m |
1.36m |
|
Overall Width |
0.76m |
0.76m |
0.82m |
|
Overall Height |
1.7m |
1.98m |
1.98m |
|
Platform Dimension |
1.3m×0.7*1.1m |
1.3m×0.7*1.1m |
1.3m×0.7*1.1m |
|
Extension Platform |
0.51m |
0.51m |
0.51m |
|
Wheel Base |
1.04m |
1.04m |
1.04m |
|
Turning Radius |
0 |
0 |
0 |
|
Travel Speed(Stowed) |
4km/h |
4km/h |
4km/h |
|
Travel Speed(Raised) |
1.1km/h |
1.1km/h |
1.1km/h |
|
Up/Down Speed |
48/40sec |
43/35sec |
52/53sec |
|
Gradeability |
25% |
25% |
25% |
|
Drive Tyres |
Φ305×100mm |
Φ305×100mm |
Φ305×100mm |
|
Drive Motors |
2×12VDC/0.5kW |
2×12VDC/0.5kW |
2×12VDC/0.5kW |
|
Lifting Motor |
24VDC/1.3kW |
24VDC/1.3kW |
24VDC/1.3kW |
|
Battery |
2×12V/100Ah |
2×12V/100Ah |
2×12V/100Ah |
|
Charger |
24V/15A |
24V/15A |
24V/15A |
|
Weight |
820kg |
980kg |
1060kg |
