Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of hydraulic scissor lifting table in China. Please feel free to buy high quality hydraulic scissor lifting table at competitive price from our factory. Contact us for more details.

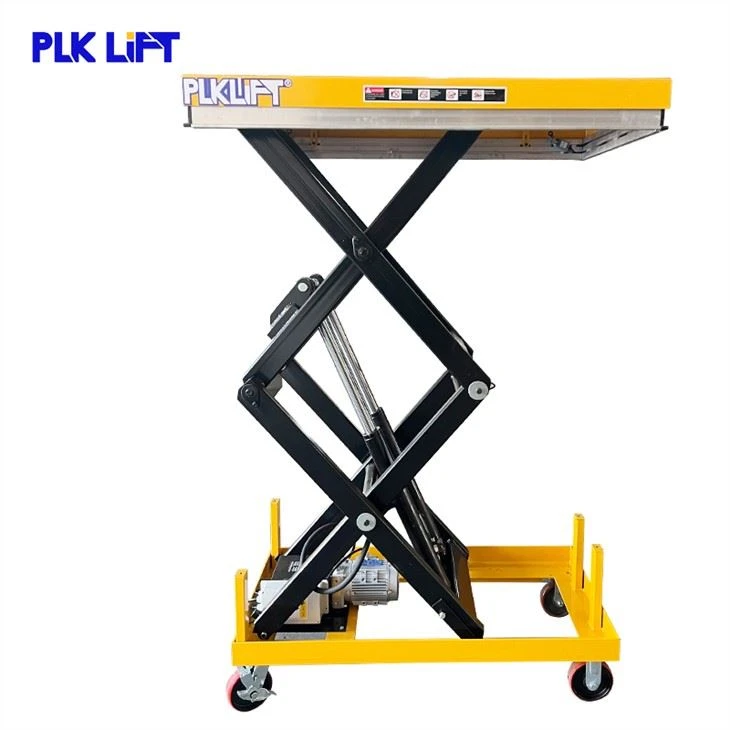

The hydraulic electric movable scissor lifting table is widely used in the industrial workshop or warehouse.
It is perfect for the material lifting and moving, safe and reliable, release the workforce.
Datasheet:
| Model | Load Capacity(KG) | Self Height | Max Platform Height(MM) | Platform Size(MM) | Lifting time | Net weight |
| (MM) | (S) | (KG) | ||||
| HW1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | 160 |
| HW1002 | 1000 | 205 | 1000 | 1600×1000 | 20~25 | 186 |
| HW1003 | 1000 | 240 | 1300 | 1700×850 | 30~35 | 200 |
| HW1004 | 1000 | 240 | 1300 | 1700×1000 | 30~35 | 210 |
| HW1005 | 1000 | 240 | 1300 | 2000×850 | 30~35 | 212 |
| HW1006 | 1000 | 240 | 1300 | 2000×1000 | 30~35 | 223 |
| HW1007 | 1000 | 240 | 1300 | 1700×1500 | 30~35 | 365 |
| HW1008 | 1000 | 240 | 1300 | 2000×1700 | 30~35 | 430 |
| HW2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 |
| HW2002 | 2000 | 230 | 1050 | 1600×1000 | 20~25 | 268 |
| HW2003 | 2000 | 250 | 1300 | 1700×850 | 25~35 | 289 |
| HW2004 | 2000 | 250 | 1300 | 1700×1000 | 25~35 | 300 |
| HW2005 | 2000 | 250 | 1300 | 2000×850 | 25~35 | 300 |
| HW2006 | 2000 | 250 | 1300 | 2000×1000 | 25~35 | 315 |
| HW2007 | 2000 | 250 | 1400 | 1700×1500 | 25~35 | 415 |
| HW2008 | 2000 | 250 | 1400 | 2000×1800 | 25~35 | 500 |
| HW4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 |
| HW4002 | 4000 | 240 | 1050 | 2000×1200 | 30~40 | 405 |
| HW4003 | 4000 | 300 | 1400 | 2000×1000 | 35~40 | 470 |
| HW4004 | 4000 | 300 | 1400 | 2000×1200 | 35~40 | 490 |
| HW4005 | 4000 | 300 | 1400 | 2200×1000 | 35~40 | 480 |
| HW4006 | 4000 | 300 | 1400 | 2200×1200 | 35~40 | 505 |
| HW4007 | 4000 | 350 | 1300 | 1700×1500 | 35~40 | 570 |
| HW4008 | 4000 | 350 | 1300 | 2200×1800 | 35~40 | 655 |
| HD1000 | 1000 | 305 | 1780 | 1300X820 | 35-45 | 210 |
| HD2000 | 2000 | 350 | 1780 | 1300X850 | 35-45 | 295 |
| HD4000 | 4000 | 400 | 2050 | 1700X1200 | 55-65 | 520 |
| HT1000 | 1000 | 470 | 3000 | 1700x1000 | 35-45 | 450 |
| HT2000 | 2000 | 560 | 3000 | 1700x1000 | 50-60 | 750 |
| HF400 | 400 | 600 | 4140 | 1700x1000 | 30-40 | 800 |
| HF800 | 800 | 706 | 4210 | 1700x1000 | 70-80 | 858 |
| HF2000 | 2000 | 850 | 4200 | 2500*1500 | 70-80 | 900 |
| HW501L | 500 | 200 | 1000 | 1200*600 | 20~25 | 120 |
| HW502L | 500 | 200 | 1000 | 1200*800 | 20~25 | 130 |
| HW500L | 500 | 200 | 1000 | 2000*800 | 20~25 | 240 |
| HD2000L | 2000 | 205 | 1000 | 2500*820 | 20~25 | 300 |
| HD4000L | 4000 | 230 | 1000 | 2500*850 | 20~25 | 320 |
| HD8000L | 8000 | 240 | 1050 | 3000*1200 | 20~25 | 370 |
| HW1001Z | 1000 | 180 | 770 | 610*916 | 15~20 | 115 |
| HW0501Z | 500 | 180 | 950 | 610*916 | 17~22 | 160 |
| HW1000I | 1000 | 190 | 1010 | 1300*800 | 20~25 | 160 |
| HW2000I | 2000 | 190 | 1010 | 1300*800 | 20~25 | 235 |
| HW3000I | 3000 | 220 | 1010 | 1300*800 | 20~25 | 350 |
Photos Display:
