Stair Elevator
It is widely used for indoor and ourdoor use for the elderly people and disable people. It is made of high strength aluminum alloy material and driven by hydraulic cylinder.
Load capacity is 250kg,max platform height can reach 1m~6m.It need to be installed on the ground or on the wall.Also we offer customized design.We can design the elevator according to your requirement.Fixed ramp,glass door,cover are all available.

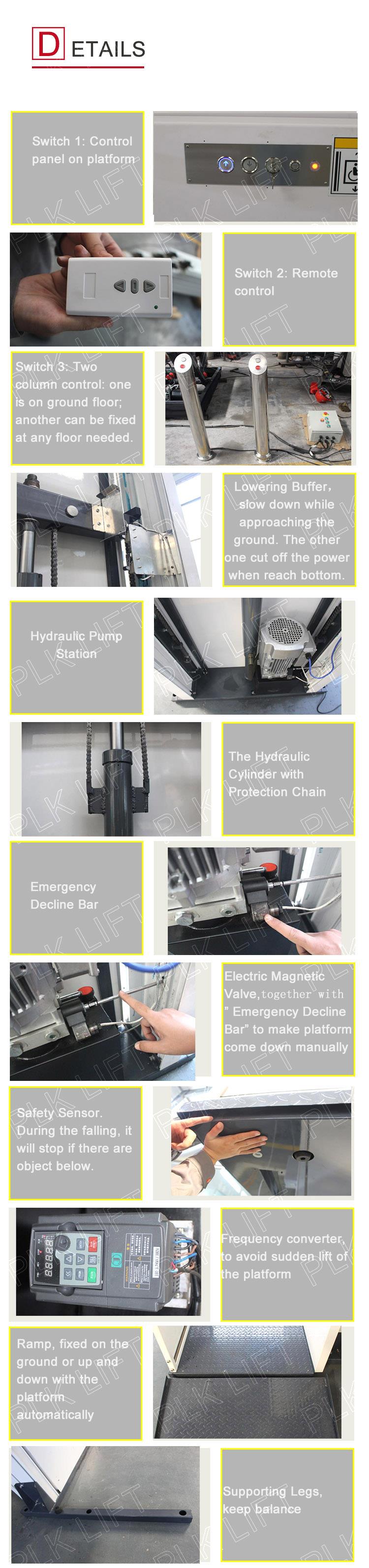

The elevator is equipped with three switches: switch 1 :control panel on the platform; switch 2:remote control; switch 3:Two column control: one is on ground floor; another can be fixed at any floor needed. So the operator can operate it very easily.
Hot Tags: stair elevator, China, suppliers, factory, price, Lift Elevator Home Residential, Wheelchair Elevator, Stair Chair, Handicap Lifts, Stair Elevator, Chair Lifts For Stairs
Standard model of 1 meter to 3 meter maximum platform height | |||||
Model Type | WL2510 | WL2515 | WL2520 | WL2525 | WL2530 |
Max. Platform Height | 1000mm | 1500mm | 2000mm | 2500mm | 3000mm |
Load Capacity | 250kg | 250kg | 250kg | 250kg | 250kg |
N.W/G.W(kg) | 350/450 | 450/550 | 550/700 | 700/850 | 780/900 |
Machine Size(mm) | 2000*1430* 1300 | 2500*1430* 1300 | 3000*1430* 1000 | 3500*1430* 1000 | 4000*1430* 1000 |
Standard model of 3 meter to 6 meter maximum platform height | |||||
Model Type | WL2530 | WL2535 | WL2540 | WL2550 | WL2560 |
Max. Platform Height | 3000mm | 3500mm | 4000mm | 5000mm | 6000mm |
Load Capacity | 250kg | 250kg | 250kg | 250kg | 250kg |
N.W/G.W(kg) | 780/900 | 850/1000 | 880/1050 | 1000/1200 | 1100/1300 |
Machine Size(mm) | 4000*1430* 1000 | 4600*1430* 1000 | 5100*1430* 1000 | 6100*1430* 1000 | 7100*1430* 1000 |
Here as below are the same specification for all models from 1 meter to 6 meters. | |
Platform size | 1430*1000mm skid proof checkered steel |
Min Platform height | 60mm |
Speed | 0.06~0.1m/s |
Control voltage | 24V/DC |
Power Output | 1.1~2.2KW |
Voltage | As per your local Standard(single phase or three phase) |
Drive System | Hydraulic pump station and electric motor (See details below) |
Control Mode | Automatic travel switch(See details below) |
Drive Control | Self-resetting system |
Overload | Over current relay protection |
Materials | Aluminium rails and guard with spraying plastics. (See details below) |
Working Condition | Both indoors and outdoors -20°~70°C |
Entrance-Exit Way | It’s customized 90°or 180° |
Installation | No pit installing,easy to install and remove <3.0m,installed directly on the floor. >3.0m, installed both on the floor and on the wall. |
Switches (See details below) | A. One control panel on the platform B. Install two column switches on ground, which can be fixed at any floor needed. C. Remote control, user can operate lift within 20m. |
