Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of vertical house lift between floors in China. Please feel free to buy high quality vertical house lift between floors at competitive price from our factory. Contact us for more details.

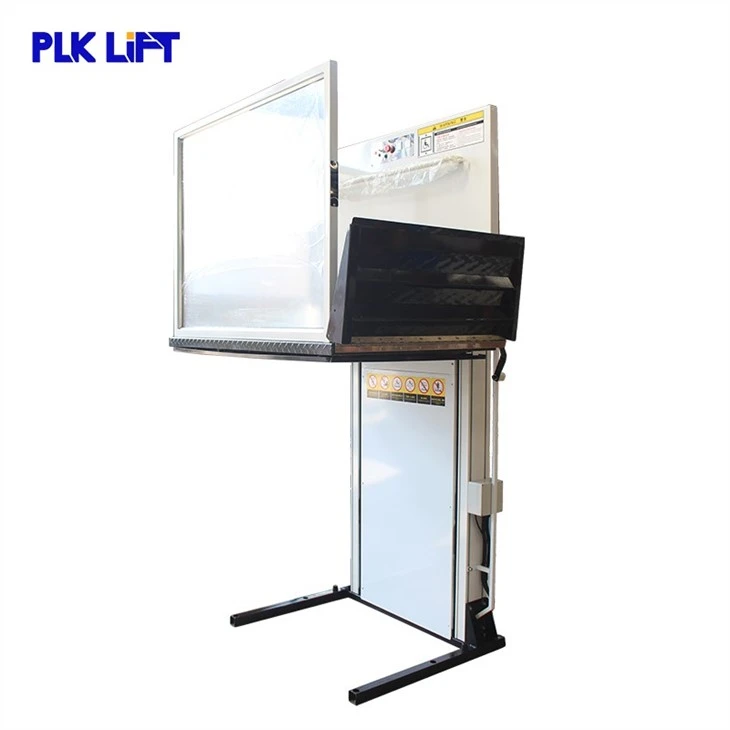

The small home elevator lift consists of a body tower, an upper landing gate, a platform mounted gate, a hydraulic drive system and panel controls. Suitable for indoor and outdoor use.
• UPS for emergency down if power failure.
• Control panel on every floor.
• Safety sensor on bottom of platform, lift will automatic stops once it meet obstacle.
• Emergency stop: lifting and lowering process can be stopped immediately.
• Small size install space.
• Non-Pit installed, non machine room.
• Low noise motor for indoor home use.
• T-Rail for stable and smoth running.
Hot Tags: vertical house lift between floors, China, suppliers, factory, price, Stairlifts, Lift Elevator Home Residential, Wheelchair Elevator, Scissor Lift Platform For Wheelchair, Chair Lifts For Stairs, Stair Chair
Model Type | WL2510 | WL2515 | WL2520 | WL2525 | WL2530 | WL2535 | WL2540 | WL2550 | |
Max. Platform Height | 1000mm | 1500mm | 2000mm | 2500mm | 3000mm | 3500mm | 4000mm | 5000mm | |
Load Capacity | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg | |
N.W/G.W(kg) | 350/450 | 450/550 | 550/700 | 700/850 | 780/900 | 850/1000 | 880/1050 | 1000/1200 | |
Machine Size | 2000*1430*1000 | 2500*1430*1000 | 3000*1430*1000 | 3500*1430*1000 | 4000*1430*1000 | 4600*1430*1000 | 5100*1430*1000 | 6100*1430*1000 | |
Packing Size(mm) | 2200*1600*1600 | 2600*1600*1600 | 2800*1600*1600 | 3100*1600*1600 | 3300*1600*1600 | 3600*1600*1600 | 3800*1600*1600 | 4300*1600*1600 | |
Platform size | 1430*1000mm skid proof checkered steel | ||||||||
Min Platform height | 60mm | ||||||||
Speed | 0.06~0.1m/s | ||||||||
Control voltage | 24V/DC | ||||||||
Power Output | 1.1~2.2KW | ||||||||
Voltage | As per your local Standard(single phase or three phase) | ||||||||
Drive System | Hydraulic pump station and electric motor (See details below) | ||||||||
Control Mode | Automatic travel switch(See details below) | ||||||||
Drive Control | Self-resetting system | ||||||||
Overload | Over current relay protection | ||||||||
Materials | Aluminium rails and guard with spraying plastics. (See details below) | ||||||||
Working Condition | Both indoors and outdoors -20°~70°C | ||||||||
Entrance-Exit Way | It’s customized 90°or 180° | ||||||||
Installation | No pit installing, easy to install and remove. Installed both on the floor and on the wall. | ||||||||
Switches | 1. One control panel on the platform. 2. Install two column switches on ground, which can be fixed at any floor needed. 3. Remote control, user can operate lift within 20m. | ||||||||
