Jinan PLK Machinery Co.,Ltd is one of the most reliable manufacturers and suppliers of new scissor lift in China. Please feel free to buy high quality new scissor lift at competitive price from our factory. Contact us for more details.

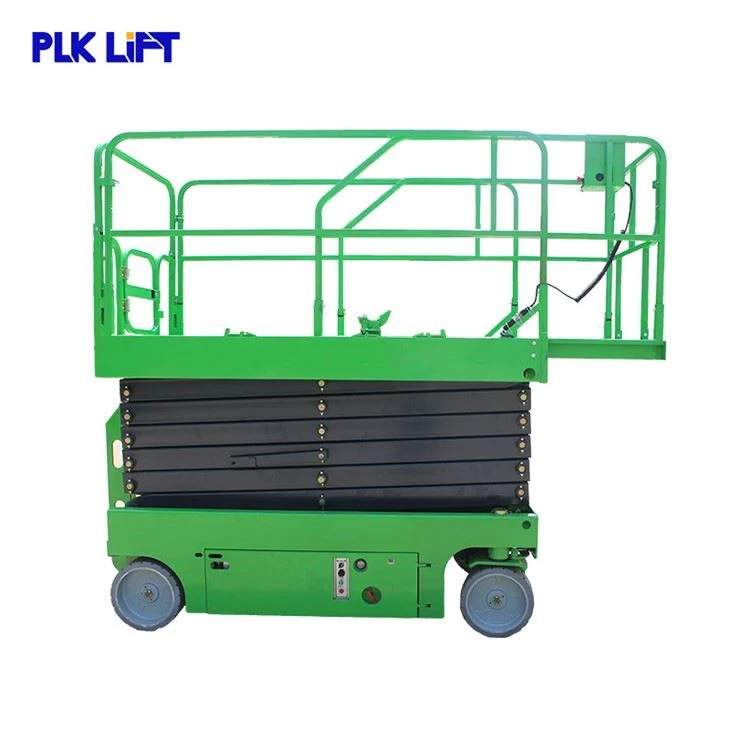

New Scissor Lift
Scissor lift is the most versatile and economical scissor lifting platform, which has many extension methods, such as assisting walking scissor lift, diesel-driven scissor lift and accumulator driven scissor lift. It is cheap in construction, easy to operate and use, with few wearing parts and low maintenance cost. It can reach the highest lifting height of 20 meters and the maximum load of 2000kg, which is the most suitable high-altitude working platform for large shopping malls, factories, enterprises and municipal gardens.
Hot Tags: new scissor lift, China, suppliers, factory, price, Hydraulic Lifting Equipment, Hydraulic Platform Lift, Automotive Scissor Lift, Personal Scissor Lift, Scissor Man Lift, Scissor Lift With Extendable Platform
|
Model No. |
GTJZ06 |
GTJZ08 |
GTJZ10 |
GTJZ12 |
|
Lifting Height(m) |
6 |
8 |
10 |
12 |
|
Lifting capacity(kg) |
300 |
300 |
300 |
300 |
|
Folding maximum height-guardrail unfolding (mm) |
2150 |
2275 |
2400 |
2525 |
|
Folding maximum height-guardrail removed (mm) |
1190 |
1315 |
1440 |
1565 |
|
Overall Length (mm) |
2400 |
|||
|
Overall Width (mm) |
1150 |
|||
|
Platform Size (mm) |
2270×1150 |
|||
|
Platform extend size (mm) |
900 |
|||
|
Minimum ground clearance-folding (mm) |
110 |
|||
|
Minimum ground clearance-rising (mm) |
20 |
|||
|
Wheelbase (mm) |
1850 |
|||
|
Minimum turn radius-inner wheel (mm) |
0 |
|||
|
Minimum turn radius-outer wheel (mm) |
2100 |
|||
|
Power source (v/km) |
24/3.0 |
|||
|
Running speed-folding (km/h) |
4 |
|||
|
Running speed-rising (km/h) |
0.8 |
|||
|
Rising/falling speed (sec) |
40/50 |
70/80 |
||
|
Battery (V/AH) |
4×6/210 |
|||
|
Charger (V/A) |
24/25 |
|||
|
Maximum climbing ability (%) |
20 |
|||
|
Maximum working allowable angle |
2-3° |
|||
|
Way of control |
Electro-hydraulic proportion control |
|||
|
Driver |
Double front-wheel |
|||
|
Hydraulic drive |
Double rear-wheel |
|||
|
Wheel size-stuffed&no mark |
Φ381×127 |
Φ381×127 |
Φ381×127 |
Φ381×127 |
|
Whole weight |
1900 |
2080 |
2490 |
2760 |
