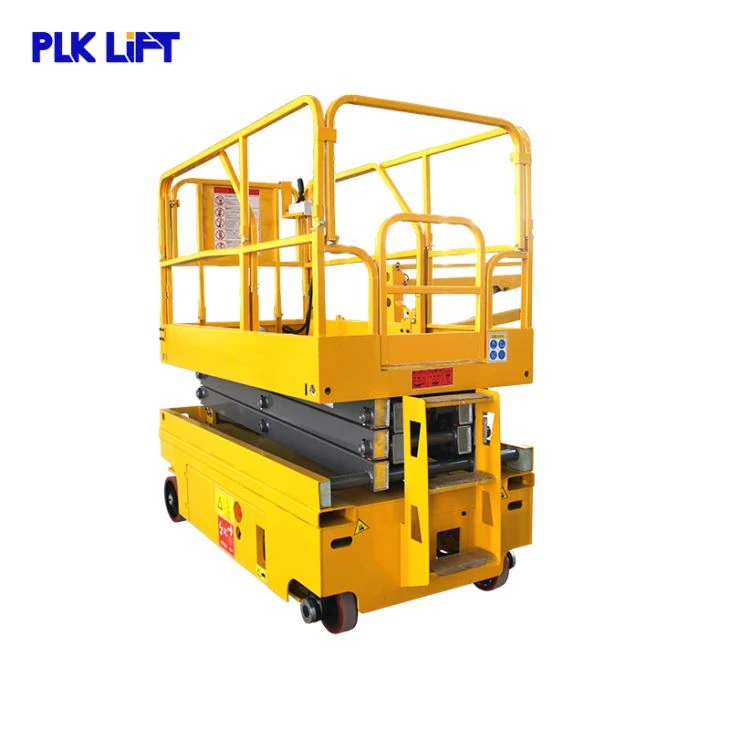

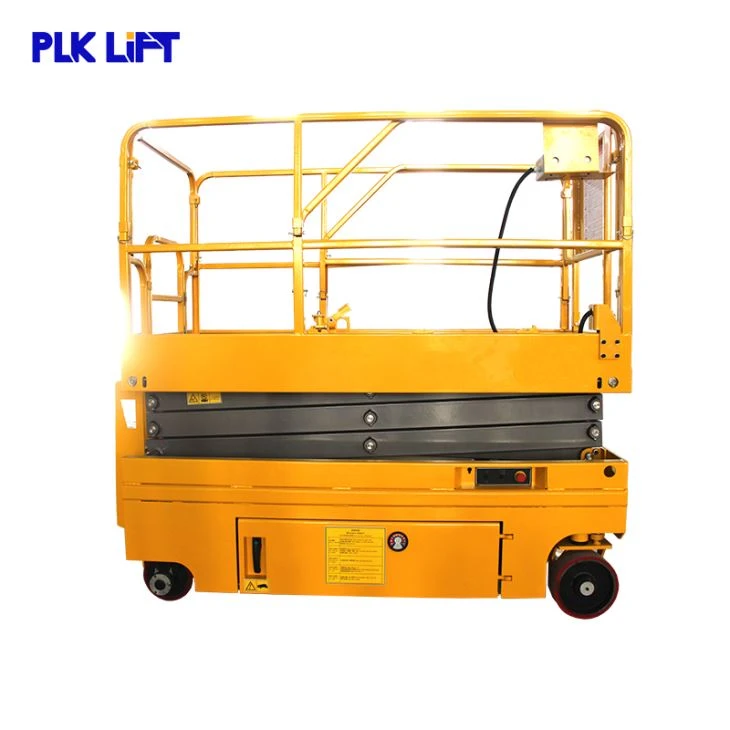

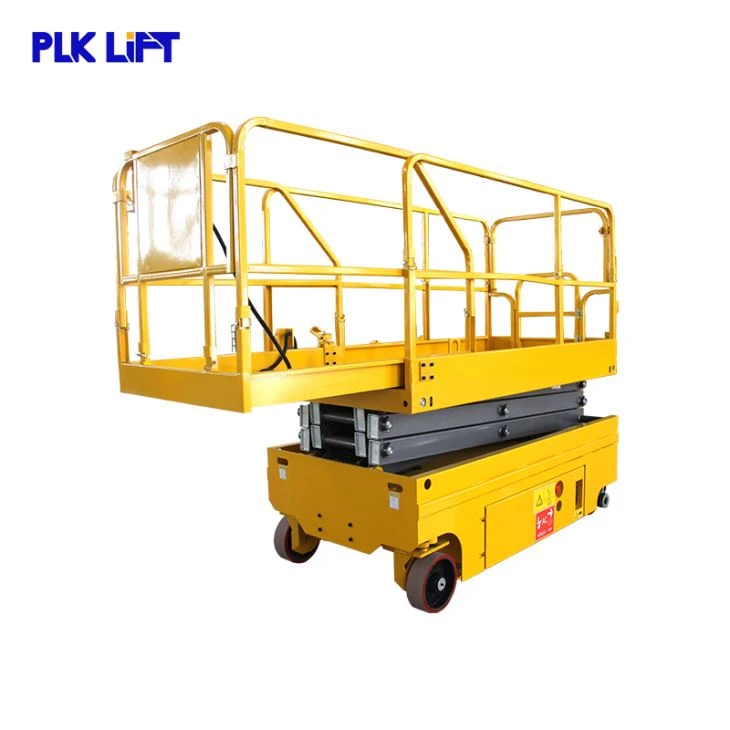

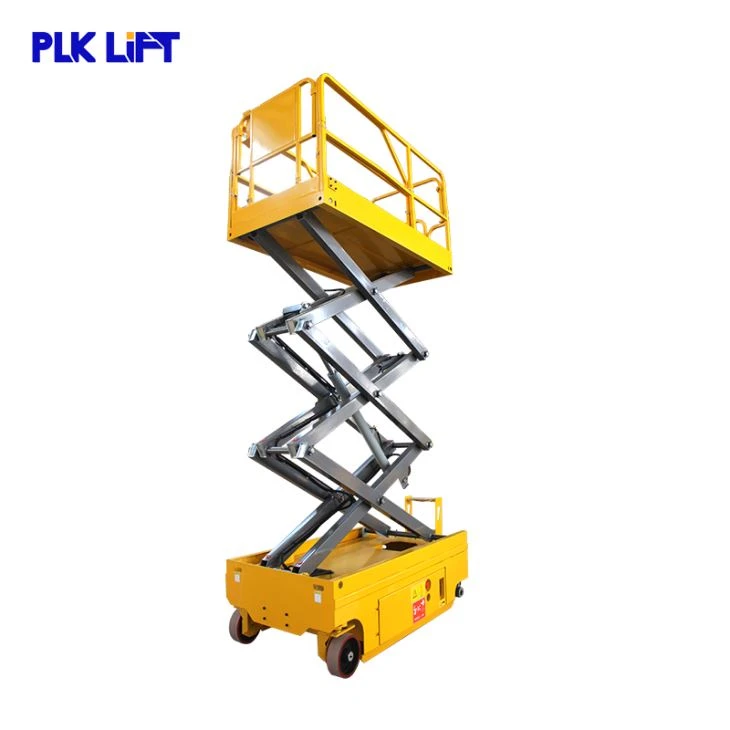

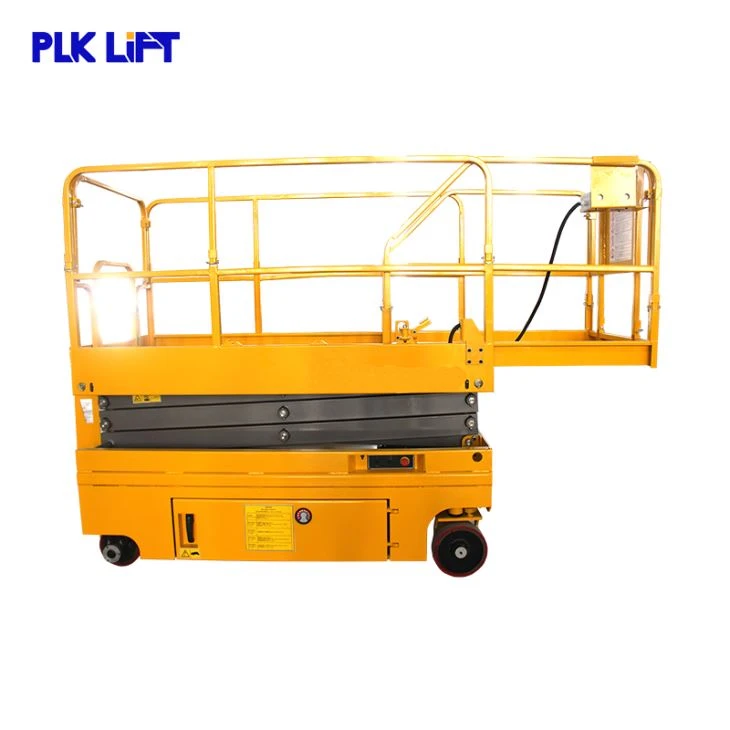

Personal Scissor Lift
These machines are designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions. Also, the innovative operator controls and compact dimensions make this series extremely mobile. Boost productivity and operator confidence on the job by choosing an electric man lift from PLK LIFT.
Hot Tags: personal scissor lift, China, suppliers, factory, price, Scissor Lift Truck, Scissor Lift Equipment, Skyjack Lifts, Snorkel Scissor Lift, Hydraulic Lifting Equipment, Industrial Lifts
|
Model No. |
GTJZ06A |
GTJZ06B |
GTJZ08A |
GTJZ08B |
GTJZ10B |
GTJZ12B |
|
Max.working height(m) |
8 |
10 |
12 |
14 |
||
|
Max.platform height(m) |
6 |
8 |
10 |
12 |
||
|
Lifting capacity(kg) |
230 |
230 |
230 |
230 |
||
|
Extended platform capacity(kg) |
113 |
113 |
113 |
113 |
||
|
Platform size(m) |
2.26*0.81*1.1 |
2.26*1.13*1.1 |
*0.81*1.1 |
*1.13*1.1 |
2.26*1.13*1.1 |
2.26*1.13*1.1 |
|
Overall size-guardrail unfolding(m) |
2.48*0.81*2.21 |
2.48*1.17*2.21 |
2.48*0.81*2.34 |
2.48*1.17*2.34 |
2.48*1.17*2.47 |
2.48*1.17*2.6 |
|
Overall size-guardrail removed(m) |
2.48*0.81*1.76 |
2.48*1.17*1.76 |
2.48*0.81*1.89 |
2.48*1.17*1.89 |
2.48*1.17*2.02 |
2.48*1.17*2.15 |
|
Extended platform size(m) |
0.9 |
0.9 |
0.9 |
0.9 |
||
|
Ground clearance(m) |
0.1/0.02 |
0.1/0.02 |
0.1/0.02 |
0.1/0.02 |
||
|
Wheel base(m) |
1.92 |
1.92 |
1.92 |
1.92 |
||
|
Minimum turn radius-inner wheel |
0 |
0 |
0 |
0 |
||
|
Minimum turn radius-outer wheel(m) |
2.1 |
2.2 |
2.1 |
2.2 |
2.2 |
2.2 |
|
Driving motor(v/kw) |
2*24/0.75 |
2*24/0.75 |
2*24/0.75 |
2*24/0.75 |
||
|
Lifting Motor(v/kw) |
24/1.5 |
24/1.5 |
24/2.2 |
24/2.2 |
||
|
Lifting speed(m/min) |
4 |
4 |
4 |
4 |
||
|
Running speed-folding(km/h) |
4 |
4 |
4 |
4 |
||
|
Running speed-rising |
0 |
0 |
0 |
0 |
||
|
Battery(v/ah) |
4*6/180 |
4*6/180 |
4*6/180 |
4*6/180 |
||
|
charger(v/a) |
24/25 |
24/25 |
24/25 |
24/25 |
||
|
Maximum climbing ability |
25% |
25% |
25% |
25% |
||
|
Maximum working allowable angle |
2°/3° |
1.5°/3° |
2°/3° |
2°/3° |
1.5°/3° |
|
|
Wheel Size-driving wheel(mm) |
Φ250*80 |
Φ250*80 |
Φ250*80 |
Φ250*80 |
||
|
Wheel size-stuffed(mm) |
Φ300*100 |
Φ300*100 |
Φ300*100 |
Φ300*100 |
||
|
Net Weight(kg) |
1750 |
1960 |
1880 |
2090 |
2330 |
2460 |
