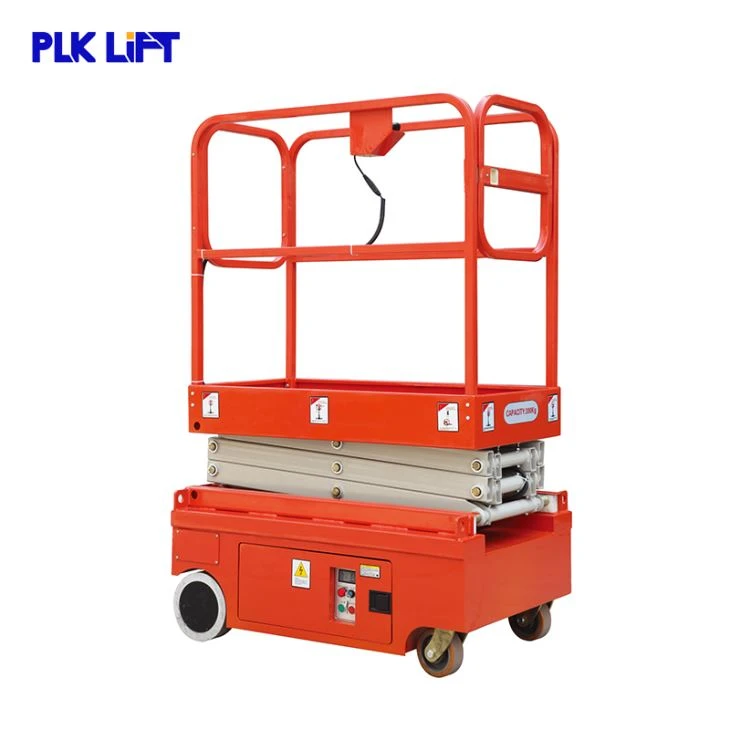

Scissors Platform Lift
It is self propelled hydraulic electric scissor lift. It is also called mini scissor lift or small scissor lift due to its compact size and light weight. It is suitable for construction, industrial maintenance, and warehouse applications on smooth slab surfaces.
It only can reach 3m and 3.9m lifting height and load 300kg capacity, but with self propelled function, you can control all its movements standing on the platform, very convenient and greatly improving work efficiency.
When you need an elevated work platform but don't have the space for a conventional scissor lift, we offer the solution to your narrow access troubles with this scissors platform lift.
|
Model Type |
GTJZ3.0 |
GTJZ3.9 |
|
Max. Platform Height (mm) |
3000 |
3900 |
|
Max. Working Height (mm) |
5000 |
5900 |
|
Lift Rated Capacity (kg) |
300 |
300 |
|
Ground Clearance (mm) |
60 |
|
|
Platform Size (mm) |
1170*600 |
|
|
Wheelbase (mm) |
990 |
|
|
Min. turning radius (mm) |
1200 |
|
|
Max. Drive peed(Platform Lifted) |
4km/h |
|
|
Max. Drive Speed(Platform down) |
0.8km/h |
|
|
Lifting/falling speed (SEC) |
20/30 |
|
|
Max. Travel Grade (%) |
10-15 |
|
|
Drive motors (V/KW) |
2×24/0.3 |
|
|
Lifting motor (V/KW) |
24/0.8 |
|
|
Battery (V/AH) |
2×12/ 80 |
|
|
Charger (V/A) |
24/15A |
|
|
Max allowable working angle |
2° |
|
|
Overall Size |
1180*760*1830 |
1180*760*1930 |
|
Overall Net Weight (kg) |
490 |
600 |
